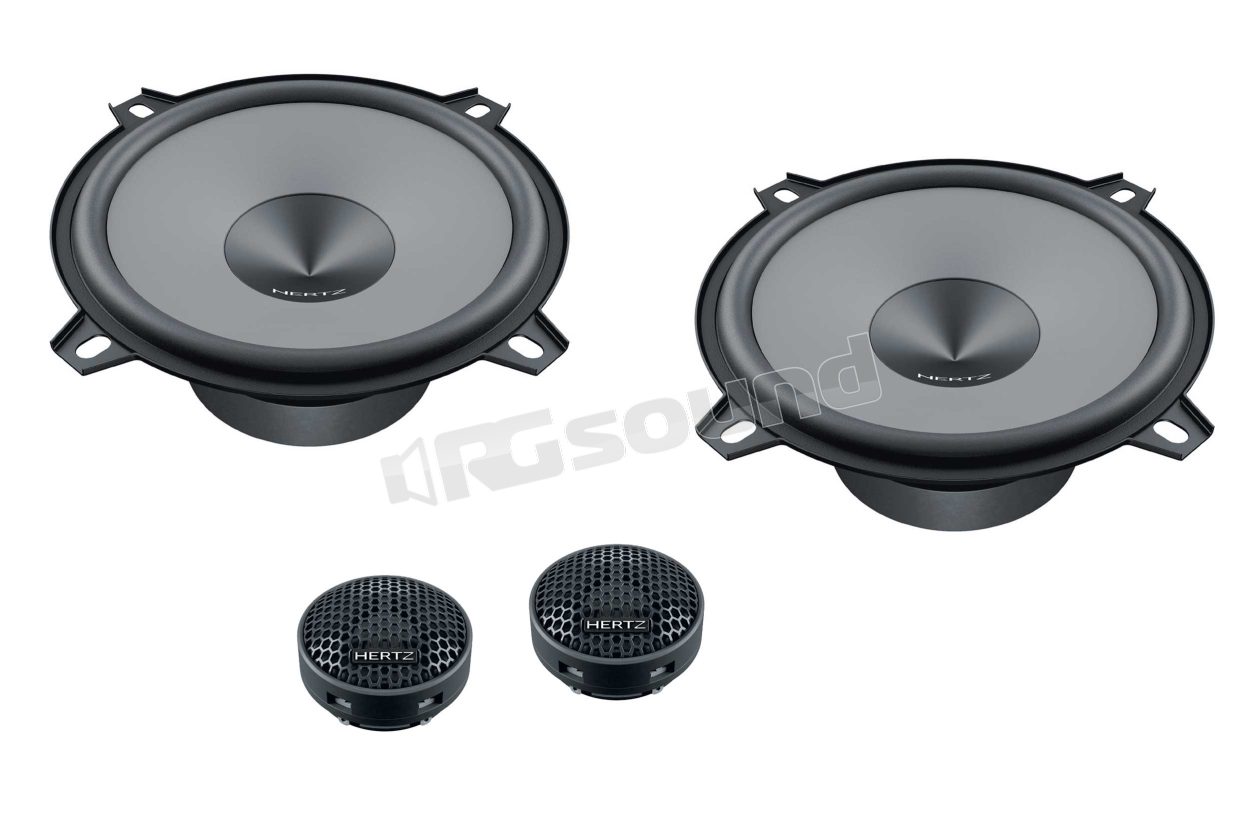

K 130 Two-way component kit with 130mm woofer

Hertz
Your price:
€ 69,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
55 - 23.000 Hertz
Woofer Size
130 mm
Tweeter Size
24 millimetri
MAX Power
220 Watt
RMS Power
55 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio e cupola in PEI

Hertz K 130 Entry level two-way kit with 130mm woofer, 24mm tweeter and 6 dB/Oct crossover Serie Uno



This kit must be used in coupling with original or after market radios as both the woofer and tweeter are very sensitive. We advise against use on systems equipped with external amplifier. The components of the K 130 system are recommended to upgrade the factory system: 24 mm (0.9") neodymium tweeter with PEI dome for brilliant reproduction of high frequencies even in compact sizes, their ring acoustic lens is optimized for exceptional off-axis performance ensuring accurate stereo reproduction.

The 130mm (5") woofers have a water-repellent pressed paper cone surrounded by a flexible ring for high bass SPL value, a 25 mm (1") voice coil guided by high flux density ferrite magnet that offers good and dynamic power handling for powerful sound, without distortion. The 6dB/Oct crossovers are integrated on the tweeter wiring for easy and immediate factory system (OEM) upgrade.

The Kit is composed of:

Tweeter T 24

  • Neodymium tweeter with 24 mm diaphragm and PEI dome, for brilliant reproduction of high frequencies in a compact format.
  • Ring acoustic lens optimized for exceptional off-axis performance.
  • 6dB/Oct crossover integrated in the tweeter wiring.
  • Mounting accessories for external or flush mounting included.

Woofer V 130

  • V-cone® design for the best off-axis response, clear details on mid-high frequencies and powerful bass.
  • Foam sphere that combines high sensitivity and deep bass response.
  • Woofer with pure copper voice coil 25 mm (1 in.) for high dynamic power handling.
  • High flux density ferrite magnet 70 mm (2.76") for powerful and distortion-free sound.
  • DIN-sized basket easy to install and protected by abrasion-resistant dust-proof paint.

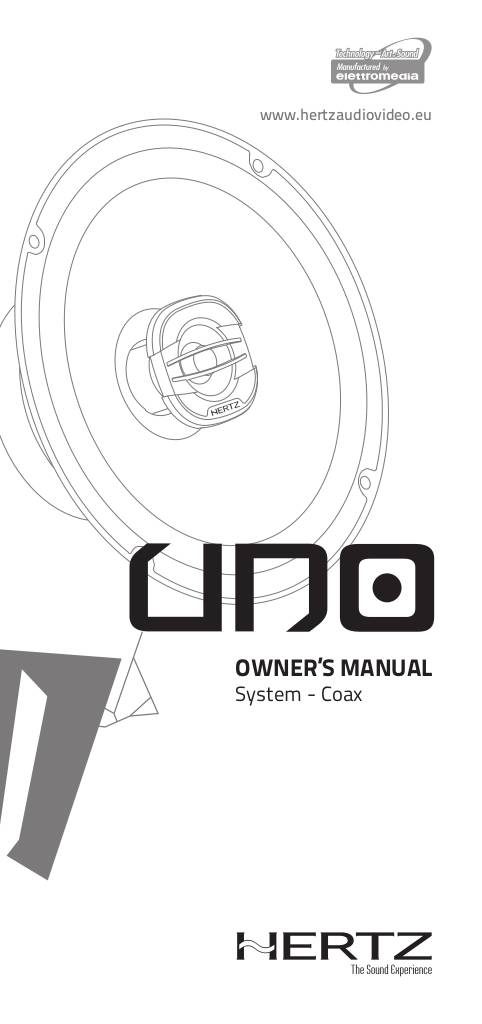

Manuale utente

n-20170220111204-uno-owners-manual-rev16b5.pdf

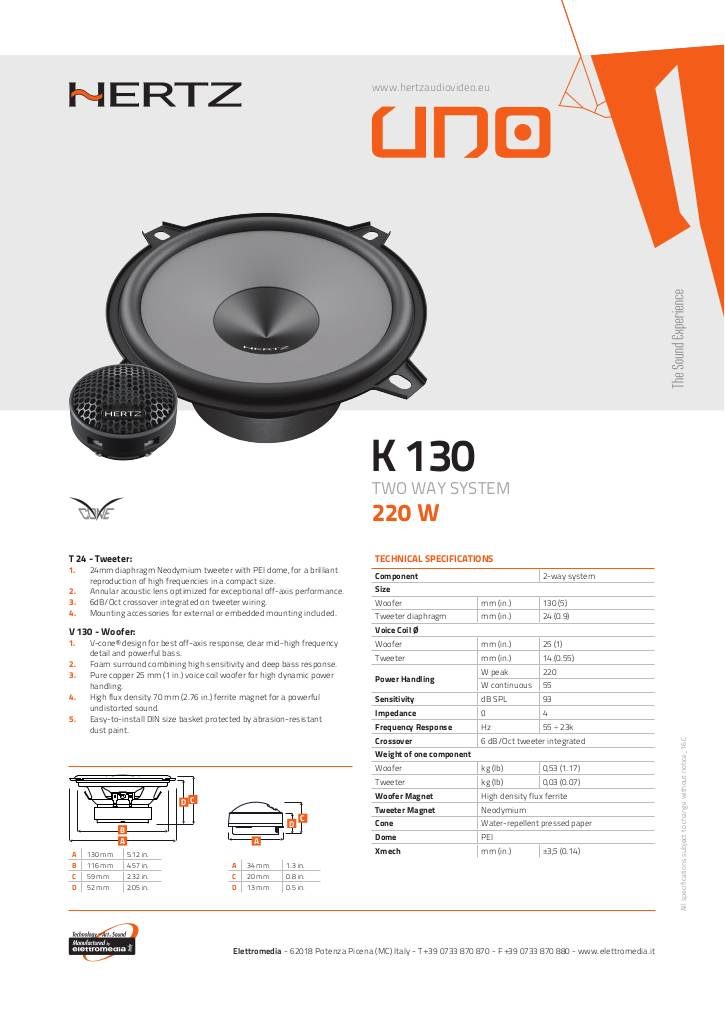

Scheda tecnica

n-20170220111204-hertz-uno-k130-tech-sheet-16c.pdf

Hertz K 130 Technical Specifications

  • Rated Power 55 W
  • Maximum Power 220 W
  • Impedance 4 Ohm
  • Frequency Response 55 - 23,000 Hz
  • Sensitivity 93 dB
  • Woofer voice coil 25 mm
  • Woofer diameter 130 mm
  • Woofer cone water-resistant pressed paper
  • Woofer magnet high flux density ferrite
  • Tweeter diameter 24 mm
  • Tweeter dome PEI
  • Tweeter magnet neodymium
  • Integrated 6 dB/Oct crossovers
