HWG160

Ciare
Your price:
€ 118,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
91 dB
Impedance
8 Ohm
Installation Depth
77 mm
Voice Coil Diameter
38 mm

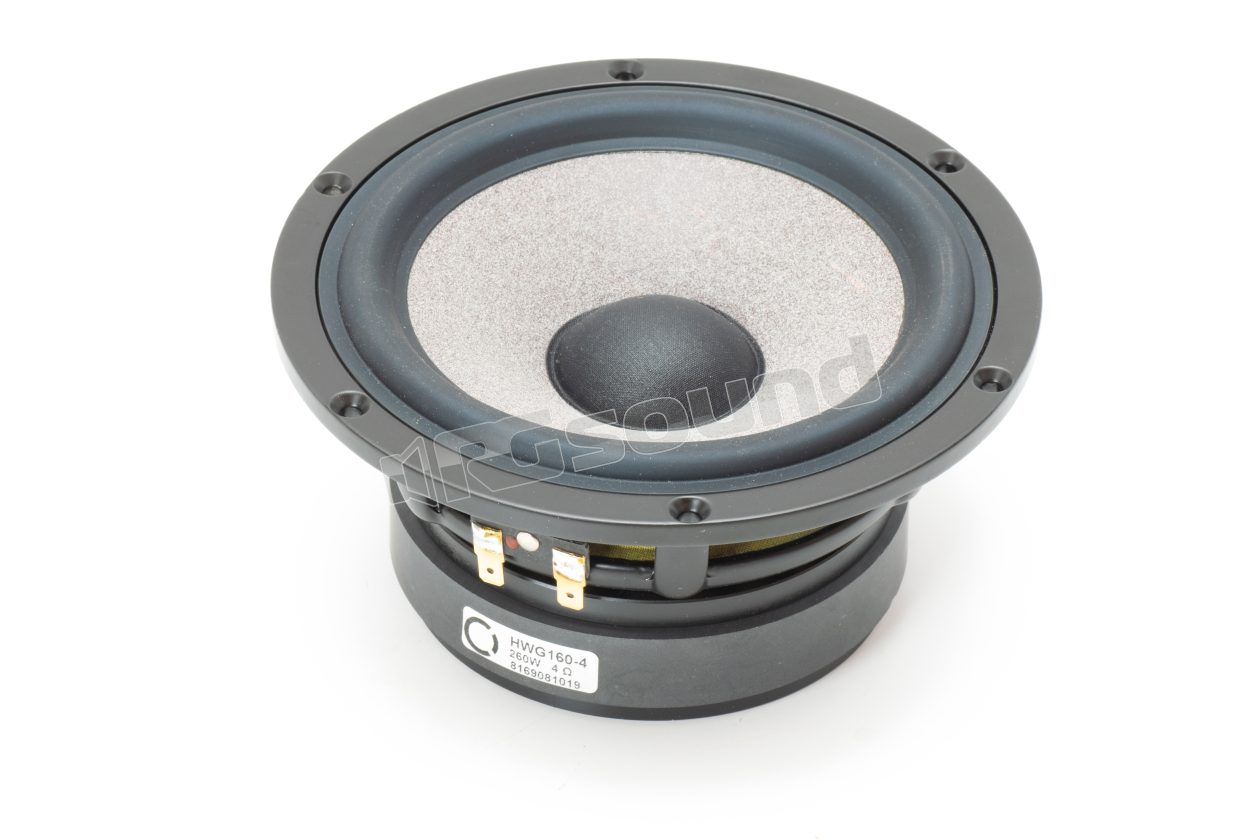

Ciare HWG160 woofer designed for hi-end applications. Special damping treatment with glass sphere. Quick response to transients.

Features:

Basket optimized for FEM design

Maximum power (W) 260

Nominal AES power (W) 130

Nominal diameter (''/mm ) 6.5 / 165

Nominal impedance (Ohm) 8

Voice coil (mm) 38

Sensitivity 1W/1m (dB) 91

Re 5.4 ohm

Fs 39 Hz

Qms 4.9

Qes 0.28

Qts 0.27

Mms 16.2 g

Materials:

Basket in die-cast aluminum

Ferrite magnet

Membrane type: paper treated with glass spheres

Rubber suspension

Fabric spider

Kapton former

Aluminum winding type

Faston connections type

Exponential membrane profile

Gap height 8 mm

Dimensions :

External diameter 174 mm

Depth below flange 77 mm

Flange thickness 6 mm

Panel hole 146 mm

Number of fixing holes 6

Fixing diameter (mm) 4.5 mm

Fixing holes position diameter 164 mm

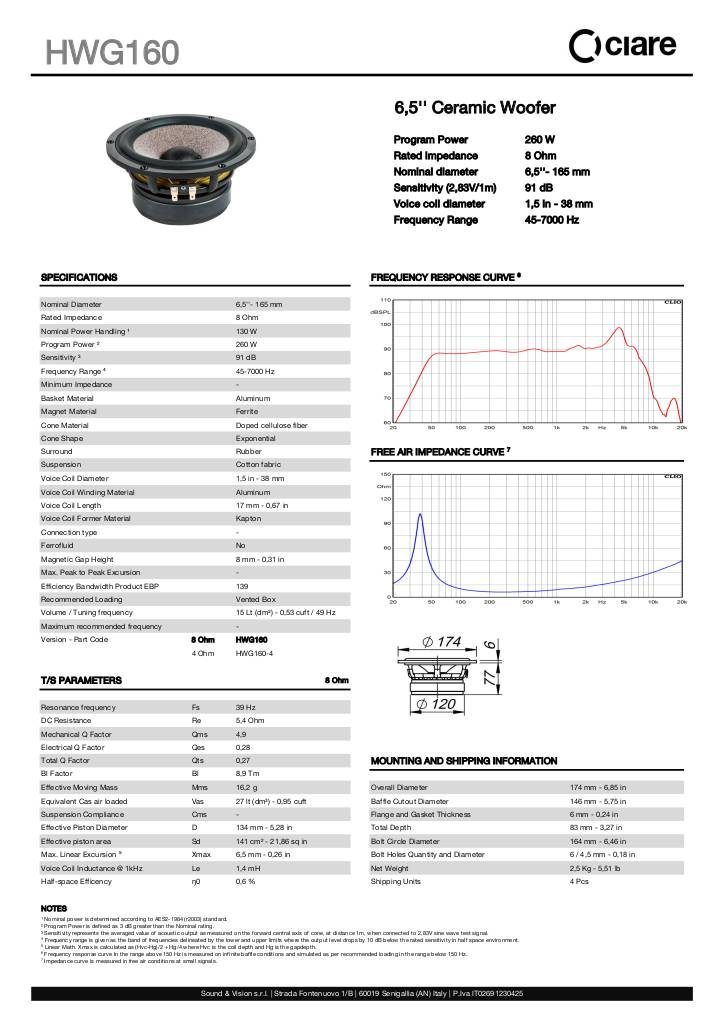

specifiche

n-20201117125839-ciare-hwg160-en.pdf
€ 118,00 Price incl. VAT
