HWG160-4

Ciare
Your price:
€ 118,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
73 mm
Woofer Material
Cellulosa e sfera di vetro

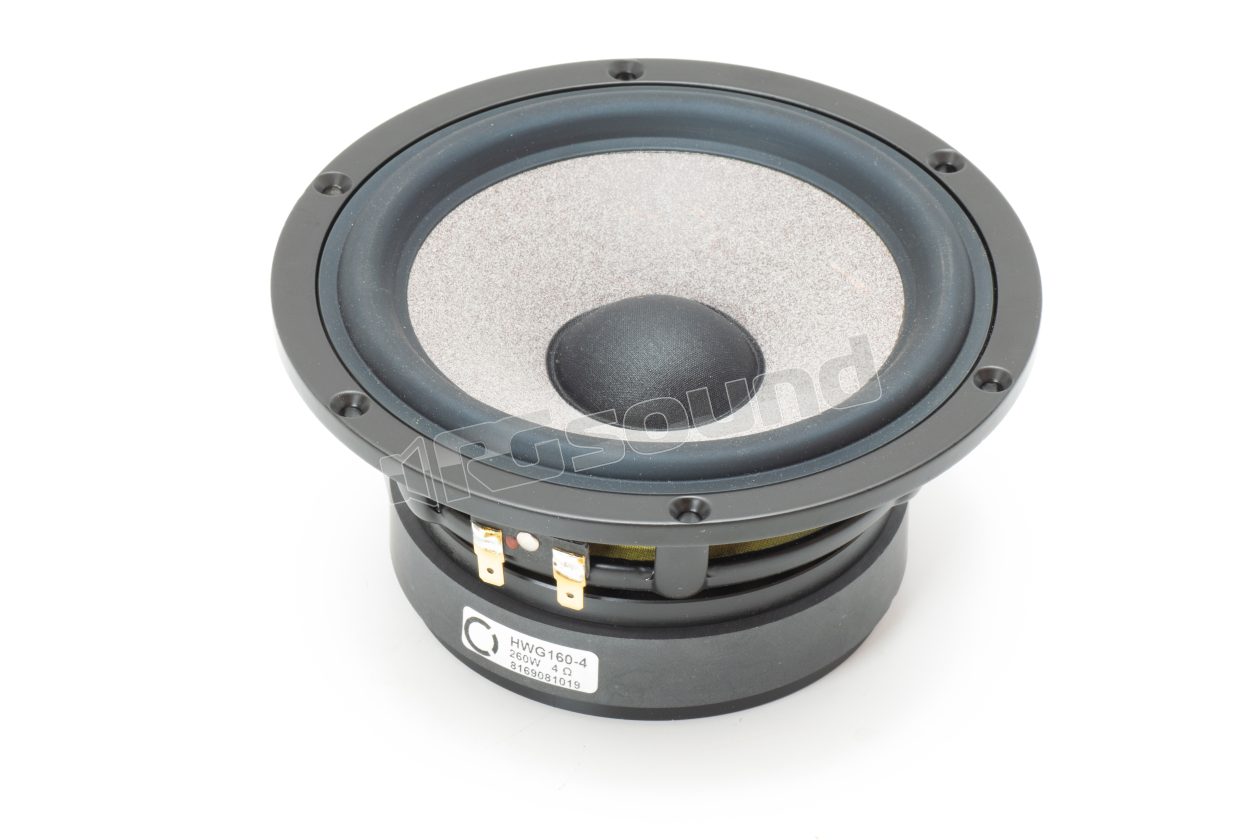

Ciare HWG160-4 165mm 4 Ohm woofer, designed for hi-end applications. Special damping treatment with glass sphere. Quick response to transients.

Features:

Basket optimized for FEM design

Maximum power (W) 260

Rated power AES (W) 130

Nominal diameter (''/mm) 6.5 / 165

Nominal impedance (Ohm) 4

Voice coil (mm) 32

Sensitivity 1W/1m (dB) 93

Materials:

Aluminum basket

Ferrite magnet

Treated paper cone

Rubber suspension

Fabric spider

Copper coil

Connector type Faston

Exponential cone shape

Gap height 6 mm

Ciare HWG160-4 technical specifications

Overall diameter 174 mm

Total depth 73 mm

Flange thickness 6 mm

Front baffle cutout mounted diameter 146 mm

Number of mounting holes 6

Mounting hole diameter (mm) 4.5 mm

Bolt circle diameter 164 millimeters

Re 3.3 ohm

Fs 46 Hz

Qms 7.7

Qes 0.38

Qts 0.36

Mms 13.9 g

D 134 mm

Vas 19.5 l

BxL 6.5 Tm

Linear Mathematical Xmax 4.5 mm

n 0.5

Le (1kHz) 0.9 mH

€ 118,00 Price incl. VAT
