HWG130-4

Ciare
Your price:
€ 105,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
90.5 dB
Impedance
4 Ohm
Installation Depth
71 mm
Woofer Material
Cellulosa e sfera di vetro

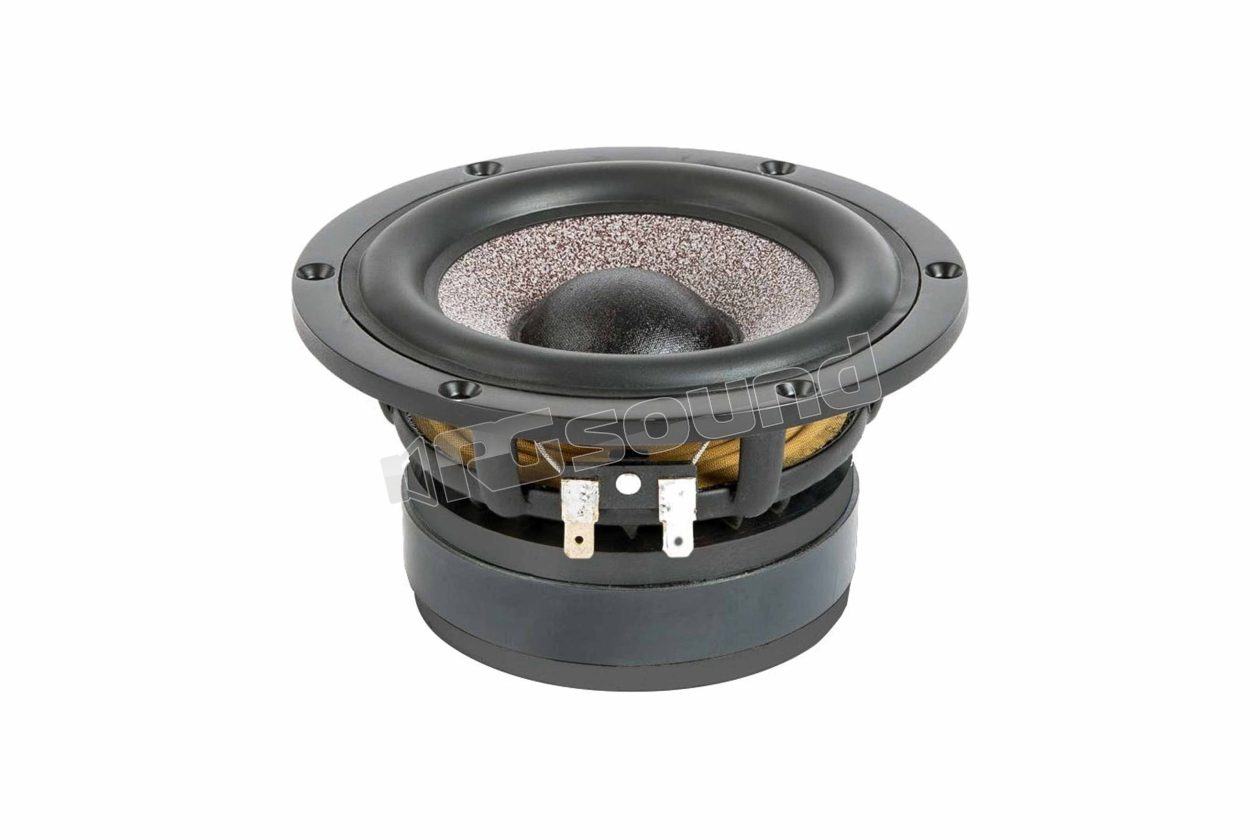

Ciare HWG130-4 woofer 13cm 4 Ohm, designed for hi-end applications. Special damping treatment with glass sphere. Fast transient response.

Features:

Basket optimized for FEM design

Maximum power (W) 260

Nominal AES power (W) 130

Nominal diameter (''/mm ) 5 / 130

Nominal impedance (Ohm) 4

Voice coil (mm) 38

Sensitivity 1W/1m (dB) 90.5

Re 2.7 ohm

Fs 40 Hz

Qms 4.8

Qes 0.36

Qts 0.34

Mms 12.8 g

D 10.5 mm

Vas 12.5 l

BxL 5 Tm

Linear Mathematical Xmax 6.5 mm

n 0.27

Le (1kHz) 0.6 mH

Materials:

Aluminum basket

Ferrite magnet

Cone in paper treated with glass sphere

Suspension material in rubber

Spider in fabric

Winding material in aluminum

Connector type Faston

Cone with exponential shape

Gap height 8 mm

Dimensions :

Overall diameter 146 mm
Total depth 71 mm
Flange thickness 6 mm
Deflector front cutout mounted diameter 117 mm
Number of mounting holes 6
Mounting holes diameter (mm) 4.5 mm
Bolt circle diameter 135.5 mm

€ 105,00 Price incl. VAT
