HWB160-4

Ciare
Your price:
€ 78,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Installation Depth
73 mm
Woofer Material
Cellulosa trattata

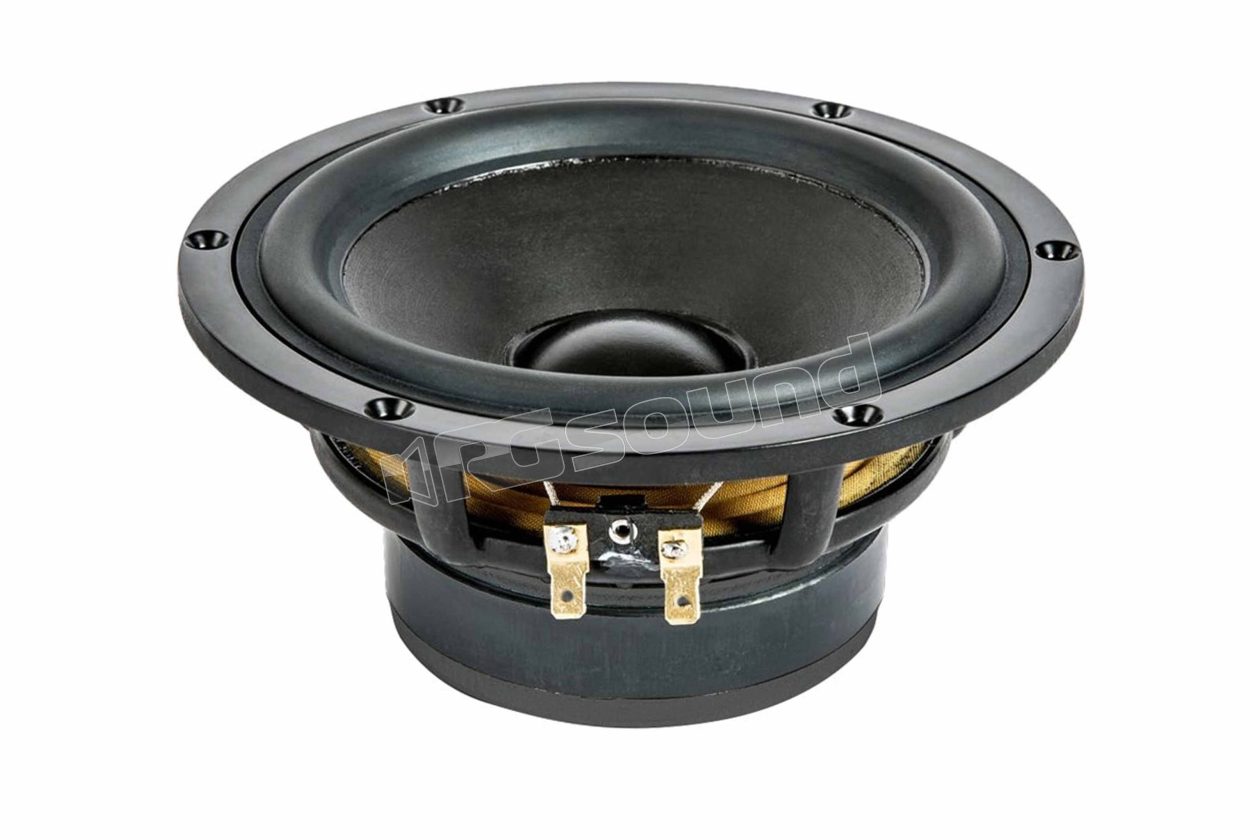

Ciare HWB160 165mm woofer with 4 Ohm impedance and very linear frequency response. Fast transient response. Basket optimized for proprietary FEM design.

Aluminum basket

Ferrite magnet

Treated paper cone

Rubber suspension

Fabric spider

Copper coil

Faston connector type

Exponential cone shape

Gap height 6 mm

Maximum power (W): 160

Nominal power AES (W) 80

Nominal diameter ('' / mm) 6.5 / 165

Nominal impedance (Ohm) 4

Voice coil diameter (mm): 32

Sensitivity 1W / 1m (dB) 92

Ciare HWB160 technical specifications

Overall diameter 174 mm

Total depth 73 mm

Flange thickness 6 mm

Front baffle cutout mounted diameter 146 mm

Number of mounting holes 6

Diameter of mounting holes (mm) 4.5 mm

Bolt circle diameter 164 mm

Re 3.3 ohm

Fs 46 Hz

Qms 7.7

Qes 0.38

Qts 0.36

Mms 13.9 g

D 134 mm

Vas 19.5 l

BxL 6.5 Tm

Linear Mathematical Xmax 4.5 mm

n 0.5

Le (1kHz) 0.9 mH

€ 78,00 Price incl. VAT
