HWB130

Ciare
Your price:
€ 72,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
89 dB
Impedance
8 Ohm
Installation Depth
69 mm
Voice Coil Diameter
32 mm

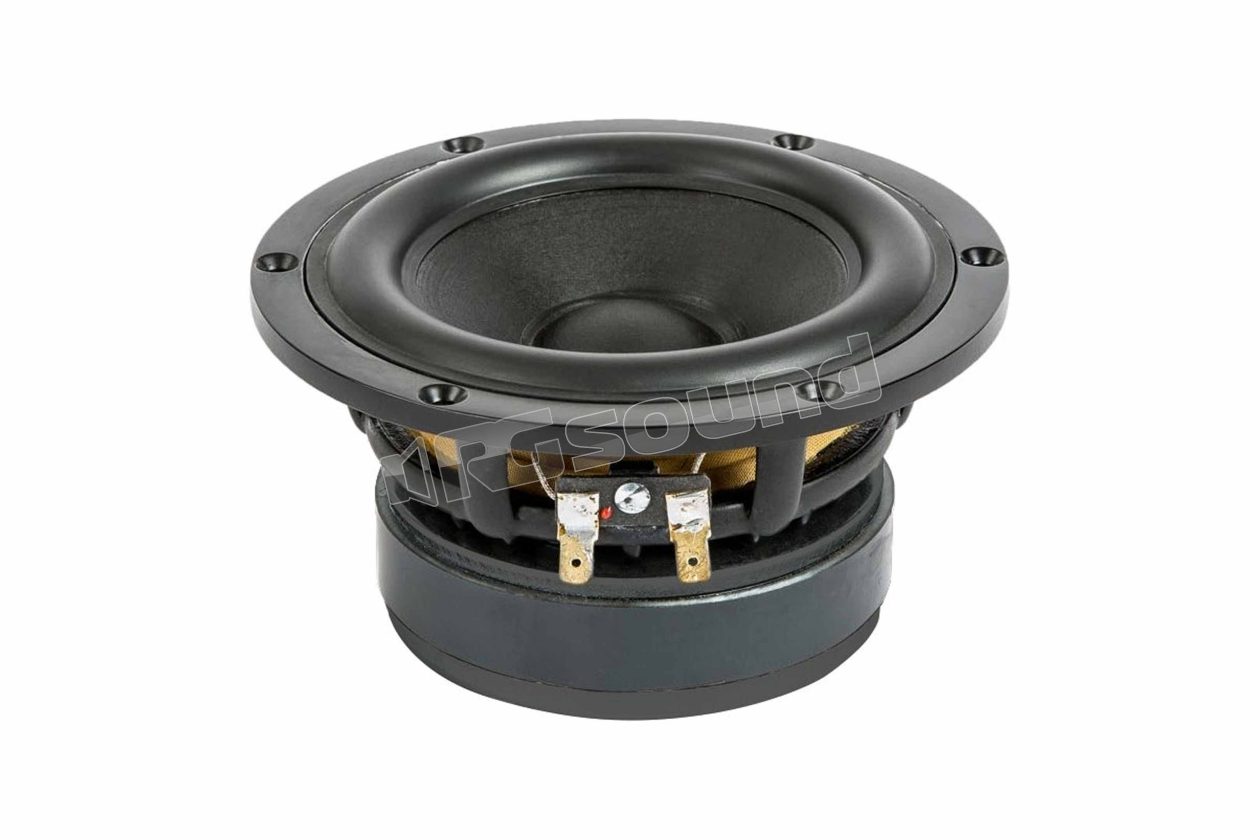

Ciare HWB130 woofer 13cm, impedance 8 Ohm, with very linear frequency response and fast transient response. Basket optimized for proprietary FEM design.

Features:

Maximum power (W): 160

Rated power AES (W) 80

Nominal diameter ('' / mm) 5 / 130

Nominal impedance (Ohm) 8

Voice coil diameter (mm): 32

Sensitivity 1W / 1m (dB) 89

Materials:

Aluminum basket

Ferrite magnet

Treated paper cone

Rubber suspension

Cloth spider material

Copper coil

Connector type Faston

Exponential cone shape

Gap height 6 mm

Ciare HWB130 technical specifications

Overall diameter 146 mm

Total depth 69 mm

Flange thickness 6 mm

Front baffle cutout mounted diameter 117 mm

No. of mounting holes 6

Mounting hole diameter (mm) 4.5 mm

Bolt circle diameter 135.5 mm

Re 5.8 ohm

Fs 48 Hz

Qms 5.7

Qes 0.32

Qts 0.3

Mms 9.5 g

D 10.5 mm

Vas 12.5 l

BxL 7.2 Tm

Linear Mathematical Xmax 4.5 mm

n 0.42

Le (1kHz) 1.3 mH

€ 72,00 Price incl. VAT
