HWB130-4

Ciare
Your price:
€ 72,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Installation Depth
69 mm
Woofer Material
Cellulosa trattata

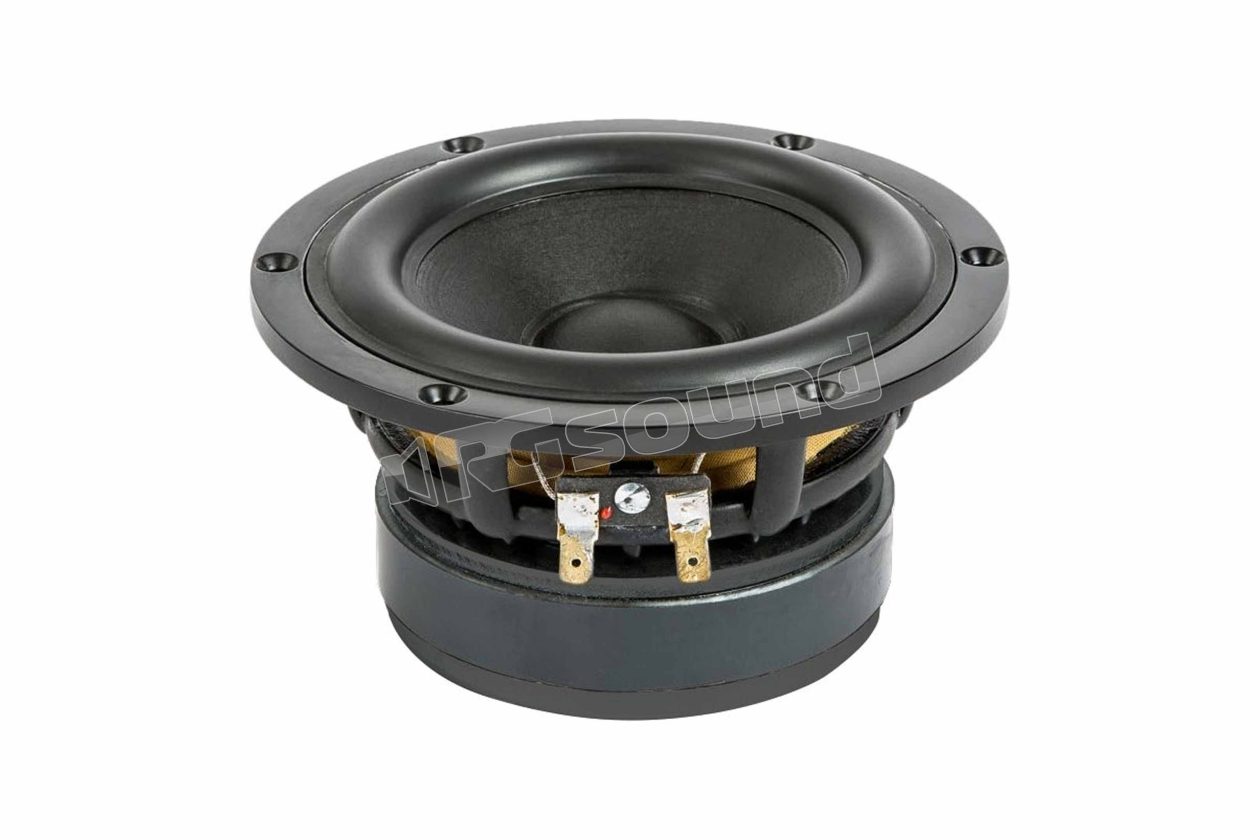

Ciare HWB130-4 woofer 13cm, impedance 4 Ohm, with very linear frequency response and fast transient response. Basket optimized for proprietary FEM design.

Features:

Maximum power (W): 160

Nominal AES power (W) 80

Nominal diameter ('' / mm) 5 / 130

Nominal impedance (Ohm) 4

Voice coil diameter (mm): 32

Sensitivity 1W / 1m (dB) 92

Materials:

Aluminum basket

Magnet type Ferrite

Treated paper cone

Rubber suspension

Fabric spider

Copper coil

Connector type Faston

Exponential cone shape

Gap height 6 mm

Ciare HWB130-4 technical specifications

Overall diameter 146 mm

Total depth 69 mm

Flange thickness 6 mm

Mounted front baffle cutout diameter 117 mm

Number of mounting holes 6

Mounting hole diameter (mm) 4.5 mm

Bolt circle diameter 135.5 mm

Re 3 ohm

Fs 46 Hz

Qms 5.9

Qes 0.29

Qts 0.28

Mms 10.5 g

D 10.5 mm

Vas 12.5 l

BxL 5.6 Tm

Linear Mathematical Xmax 4.5 mm

n 0.41

Le (1kHz) 1.2 mH

€ 72,00 Price incl. VAT
