HW321 320mm woofer - max power 400W

Ciare
Your price:
€ 146,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
400 Watt
RMS Power
150 Watt
Frequency Response
25 - 2.500 Hertz
Sensitivity
93 dB
Impedance
8 Ohm
Weight
4,9 Kg
Installation Depth
125 mm
Voice Coil Diameter
50 mm

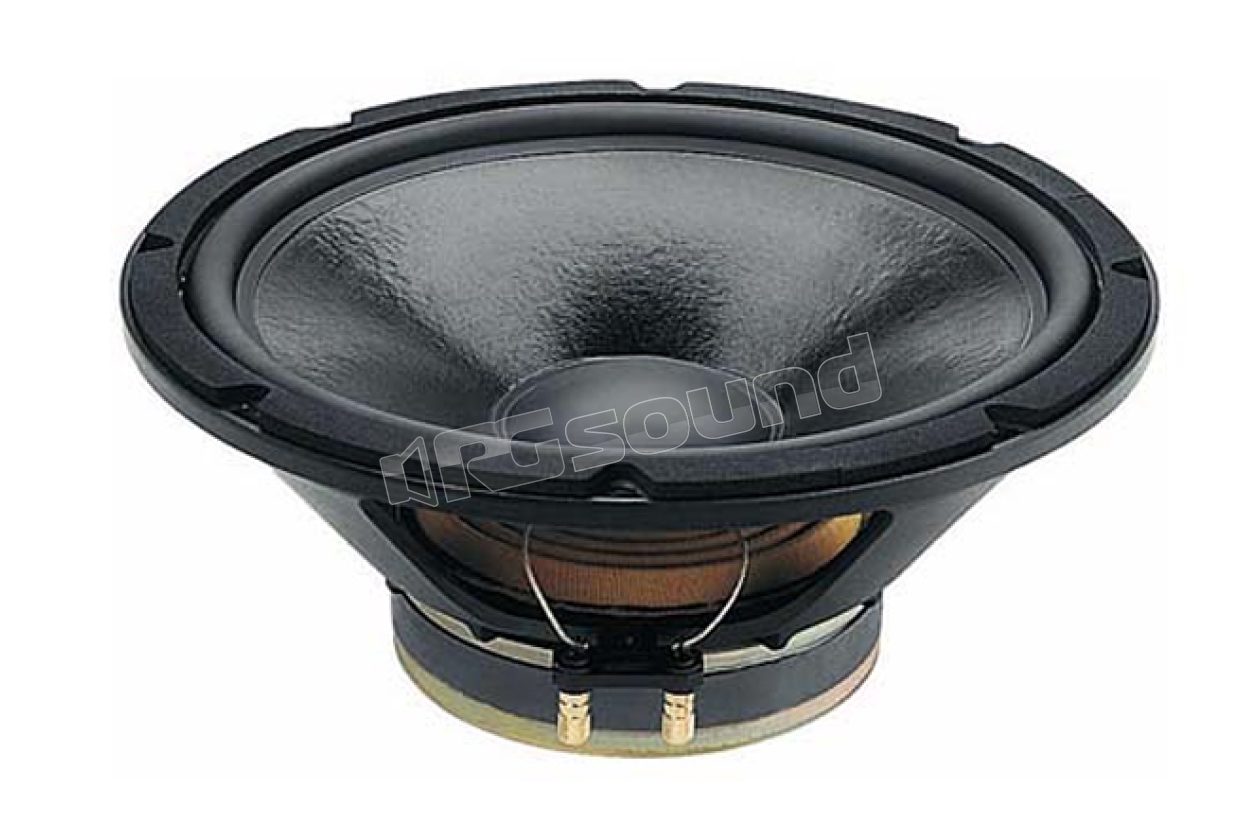

Ciare HW321 woofer 320mm with damped cellulose diaphragm and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HW321 Features

  • Max power: 400W
  • Nominal power: 150W
  • Nominal impedance: 8Ω
  • Diameter: 320mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 93 dB
  • Frequency response 25-2,500 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 136 dm3
  • Recommended tuning frequency: 34 Hz

HW321 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 8 mm

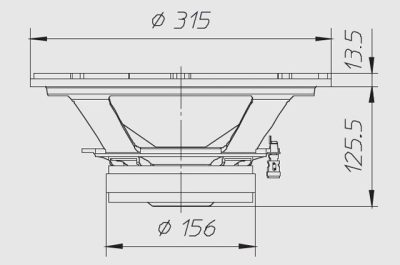

HW321 Dimensions

  • External diameter: 315 mm
  • Depth under flange: 125.5 mm
  • Flange thickness: 13.5 mm
  • Panel hole: 282 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 7 mm
  • Mounting hole position diameter: 295
  • Weight with single packaging: 4.90 Kg

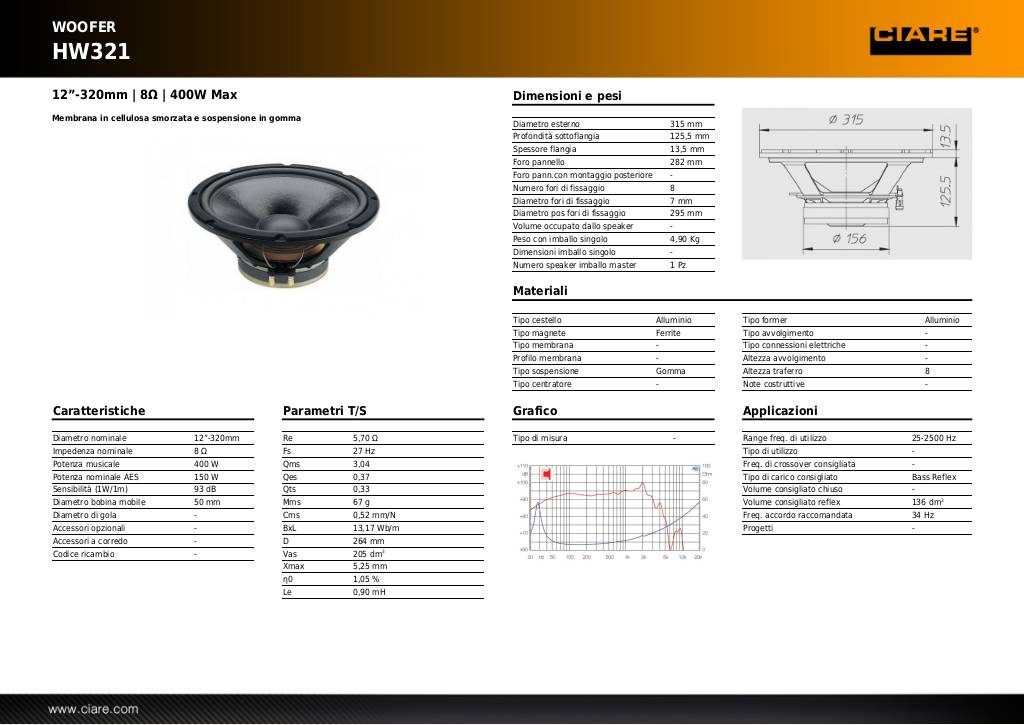

Scheda tecnica

20131104114755-hw321.pdf

1 Ciare woofer HW321 8 Ohm speaker
€ 146,00 Price incl. VAT
