HW251N 250mm woofer - max power 240W

Ciare
Your price:
€ 130,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
25 - 2.500 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
2,8 Kg
Installation Depth
108 mm
Voice Coil Diameter
38 mm

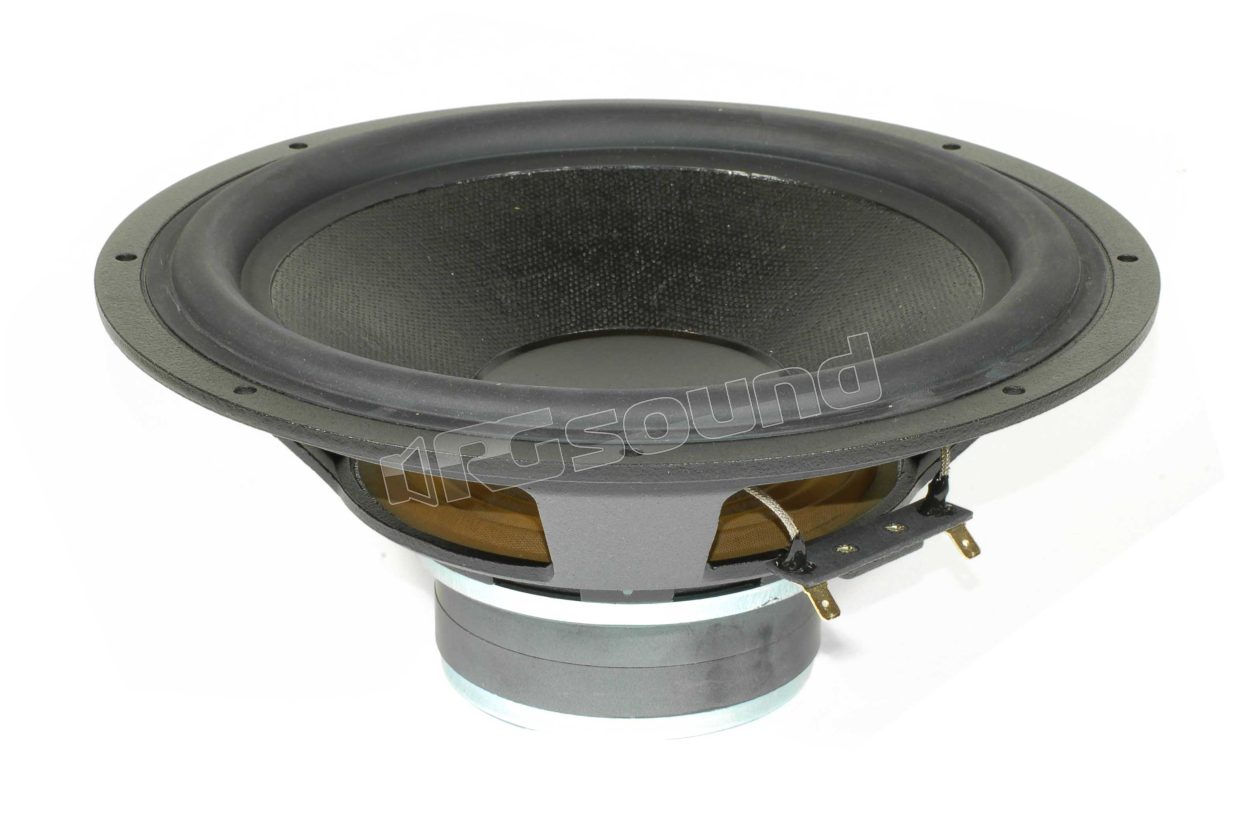

Ciare HW251N is a high-performance woofer for High Fidelity use with a nominal diameter of 250 mm (10″), and nominal impedance of 8 Ω, and stands out for its high construction quality. Its construction structure features an elegant die-cast aluminum basket without a front gasket, coupled with a powerful dual ferrite magnetic assembly with a diameter of 102 mm.

This woofer can be installed in an enclosure of approximately 65 liters, tuned bass reflex at approximately 36 Hz. It finds application in 2 or 3 way systems, also of the "Tower" or "Half Tower" type, coupled with midrange and/or tweeter. Furthermore, it can also be used as a pure subwoofer with excellent results.

HW251N Features

  • Max power: 240W
  • Nominal power: 120W
  • Nominal impedance: 8Ω
  • Diameter: 250mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 91 dB

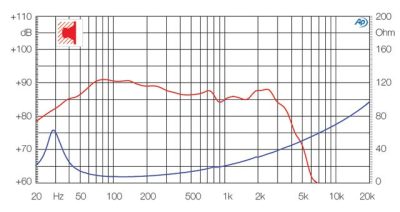

  • Frequency response 25-2,500 Hz

HW251N Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Voice coil height: 8 mm

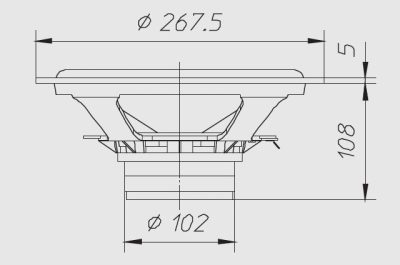

HW251N Dimensions

  • External diameter: 267.5 mm
  • Depth under flange: 108 mm
  • Flange thickness: 5 mm
  • Panel hole: 232 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 253
  • Weight with single packaging: 2.80 K

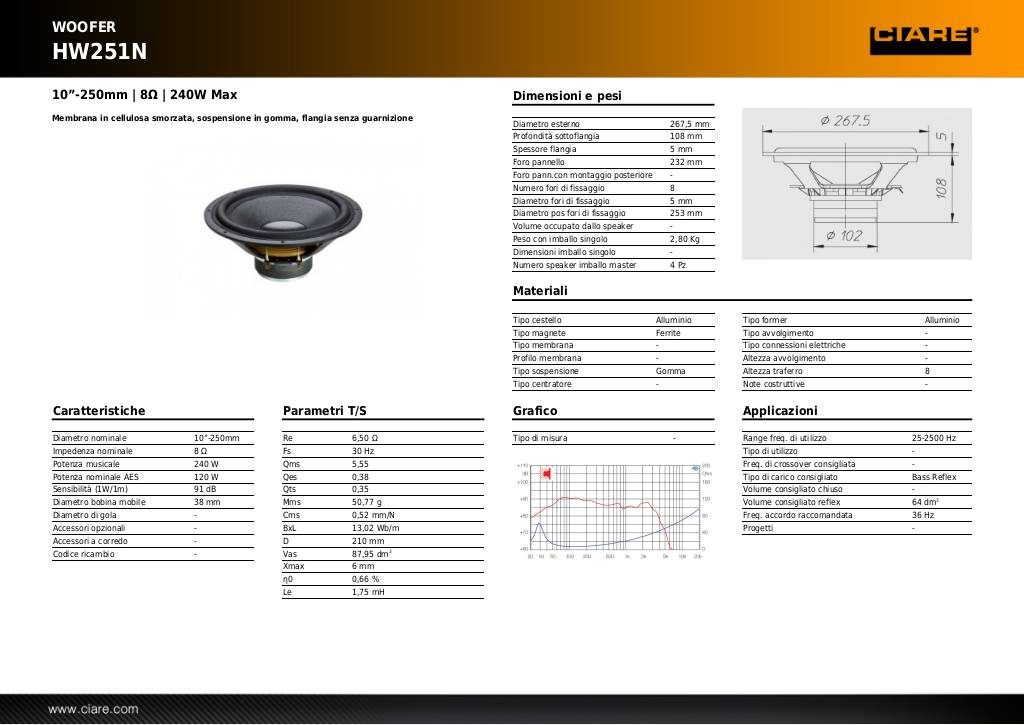

Scheda tecnica

20131104112729-hw251n.pdf

1 Ciare woofer HW251N 8 Ohm speaker
€ 130,00 Price incl. VAT
