HW203 200mm woofer

Ciare
Your price:
€ 68,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
180 Watt
RMS Power
80 Watt
Frequency Response
43 - 3.500 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
2,3 Kg
Installation Depth
81,5 mm
Voice Coil Diameter
32 mm

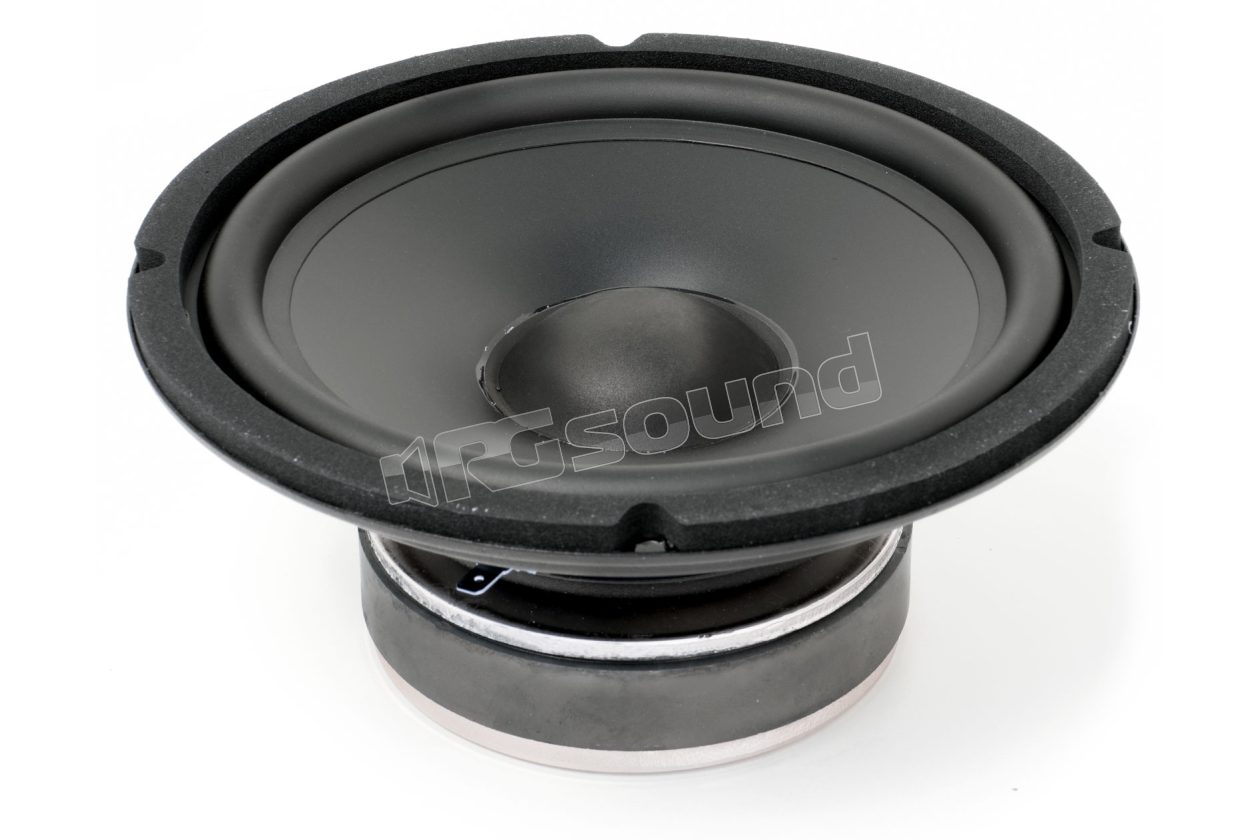

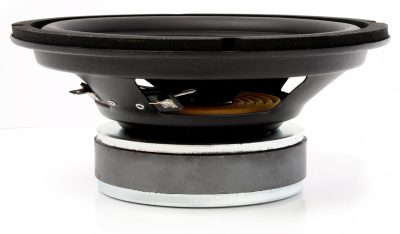

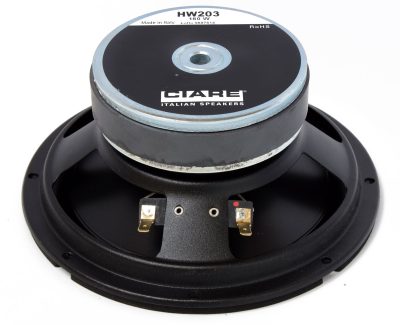

Ciare HW203 200mm woofer with polypropylene cone and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all the phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

HW203 Features

  • Max power: 180W
  • Nominal power: 80W
  • Nominal impedance: 8Ω
  • Diameter: 200mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 91 dB

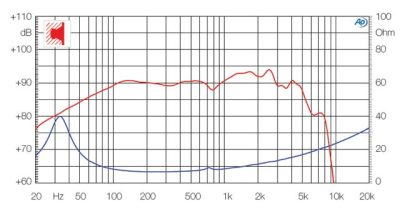

  • Frequency response 43-3,500 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 50 dm3Recommended tuning frequency: 38 Hz

HW203 Materials

  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

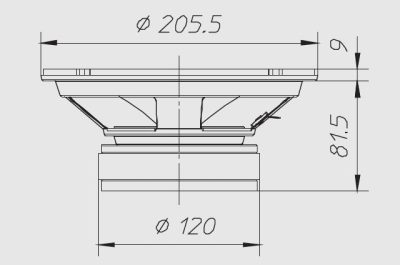

HW203 Dimensions

  • Outer diameter: 205.5 mm
  • Mounting depth: 81.5 mm
  • Flange thickness: 9 mm
  • Panel hole: 185 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole position diameter: 194
  • Weight with individual packaging: 2.30 Kg

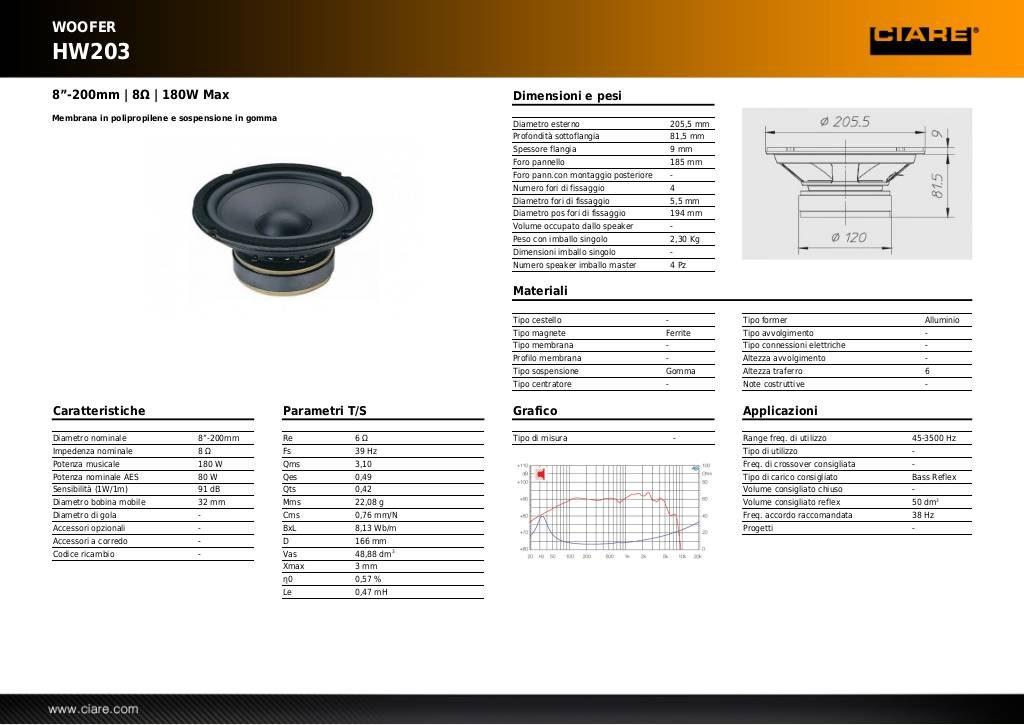

Scheda tecnica

20131104104258-hw203.pdf

1 Ciare HW203 woofer speaker at 8 Ohm
€ 68,00 Price incl. VAT
