HW172 180mm Woofer

Ciare
Your price:
€ 75,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
180 mm
MAX Power
180 Watt
RMS Power
80 Watt

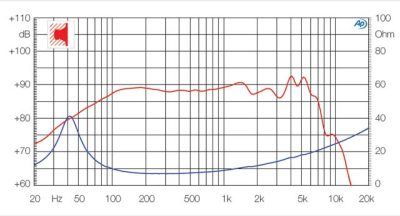

Frequency Response
45 - 6.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
1,6 Kg
Installation Depth
73,5 mm
Voice Coil Diameter
32 mm

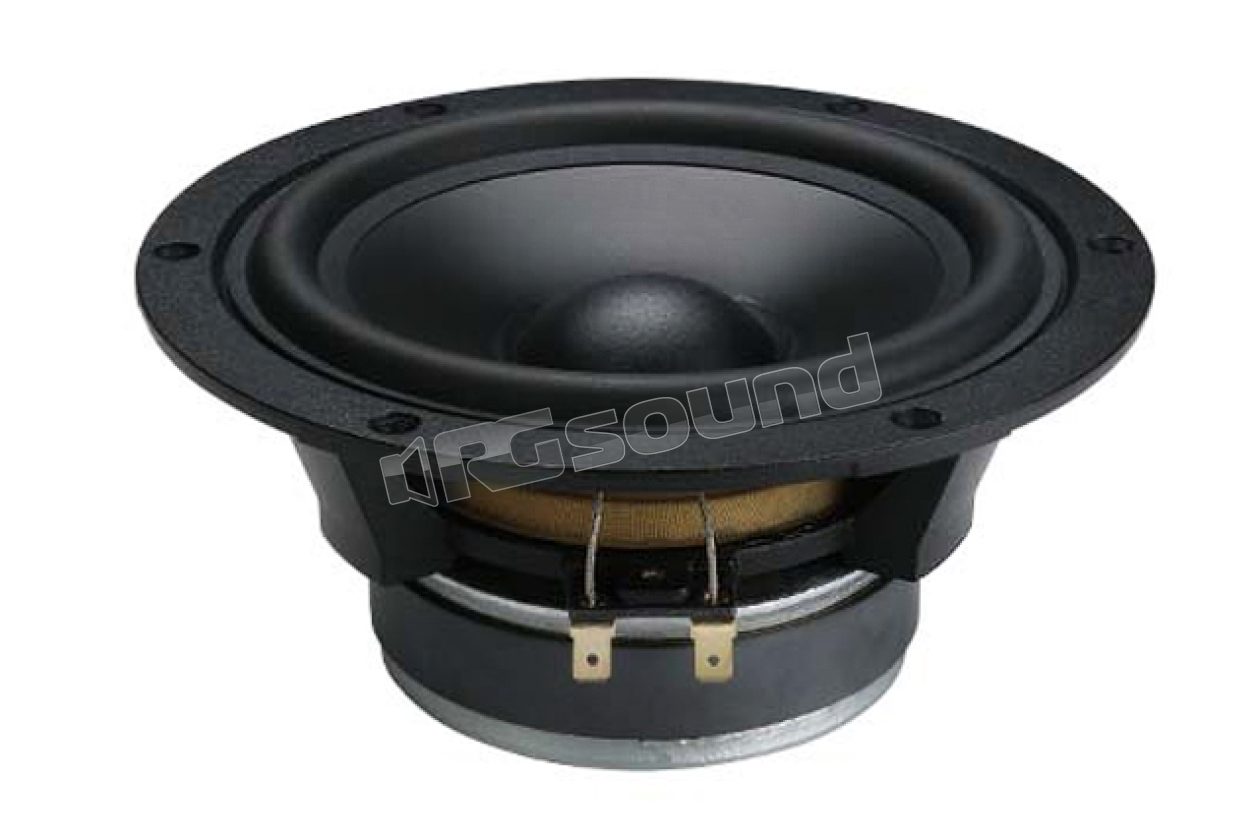

Ciare HW172 woofer 180mm with polypropylene cone and rubber suspension

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization allow the company to achieve the highest quality standards in the implementation of each component.

HW172 Features

  • Max power: 180W
  • Nominal power: 80W
  • Nominal impedance: 8Ω
  • Diameter: 180mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 45-6.000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 17 dm3
  • Recommended tuning frequency: 51 Hz

HW172 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

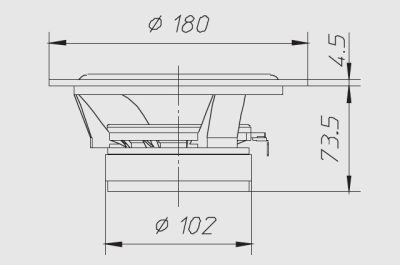

HW172 Dimensions

  • Outer diameter: 180 mm
  • Depth under flange: 73.5 mm
  • Flange thickness: 4.5 mm
  • Panel hole: 146 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4.5 mm
  • Mounting holes position diameter: 166
  • Weight with single packaging: 1.64 Kg

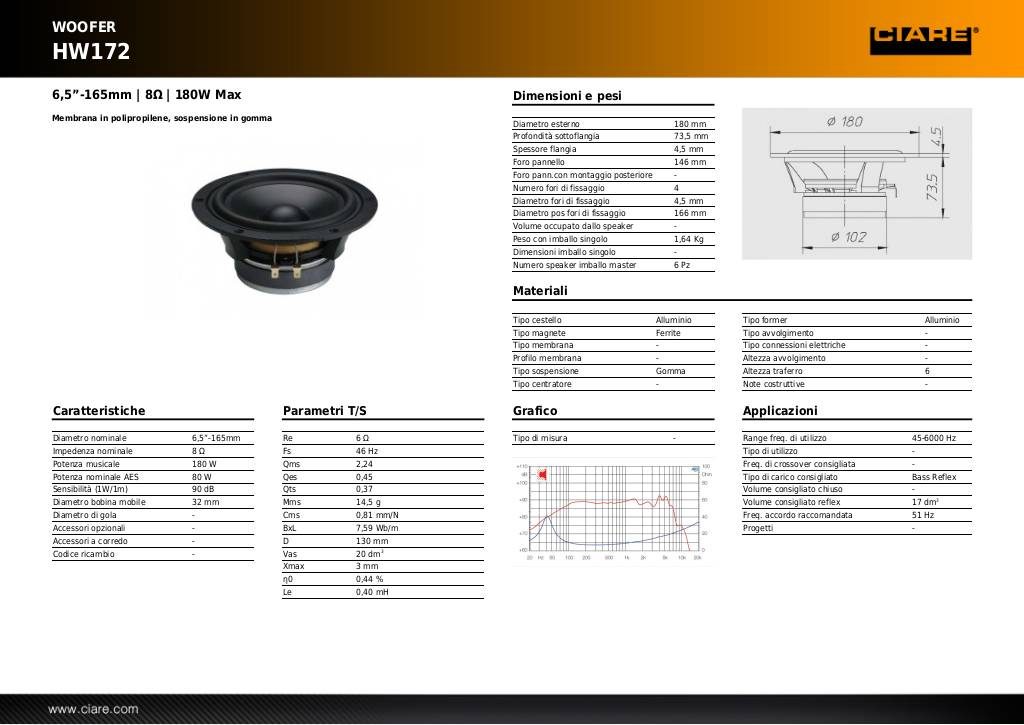

Scheda tecnica

20131104102152-hw172.pdf
