HW162 165mm woofer

Ciare
Your price:
€ 57,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
80 Watt
Frequency Response
45 - 6.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
1,4 Kg
Installation Depth
71 mm
Voice Coil Diameter
32 mm

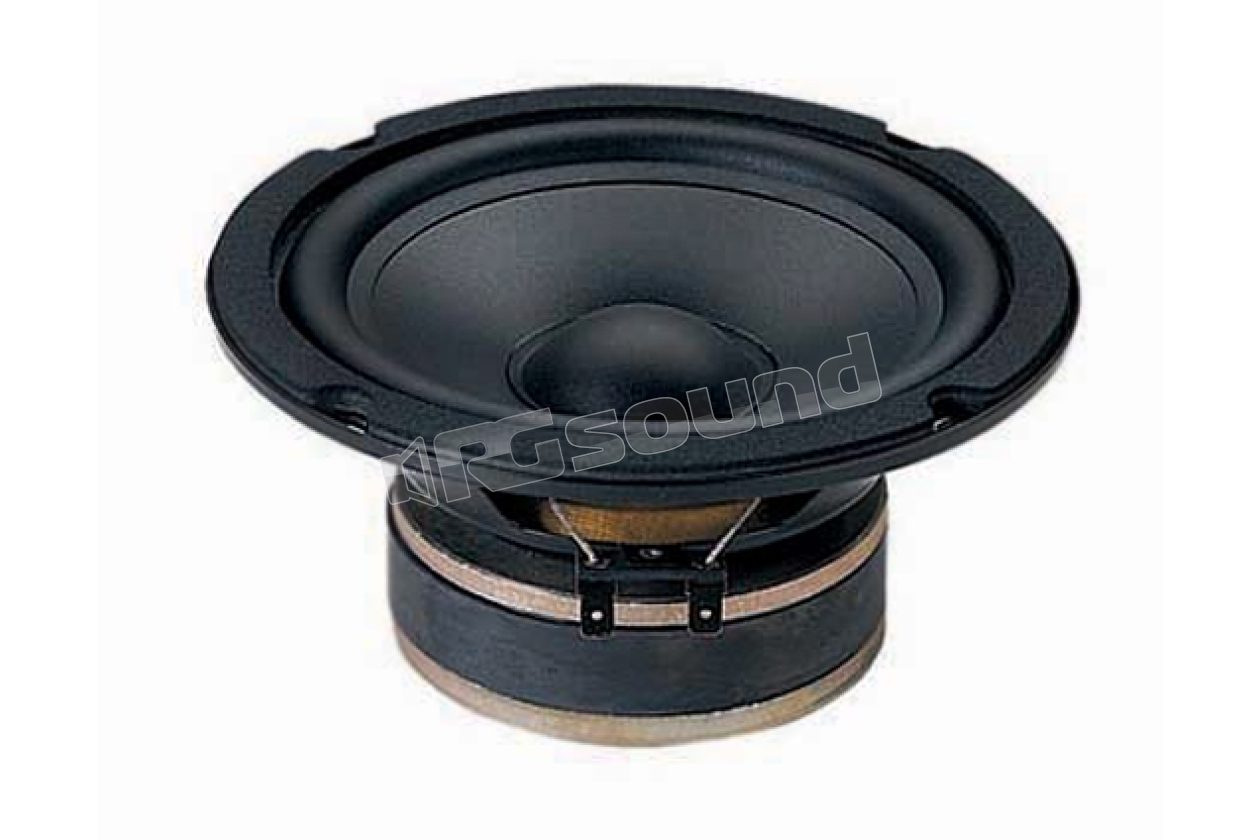

Ciare HW162 woofer 165mm with damped cellulose cone and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute faithfulness to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HW162 Features

  • Max power: 180W
  • Nominal power: 80W
  • Nominal impedance: 8Ω
  • Diameter: 165mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 90 dB

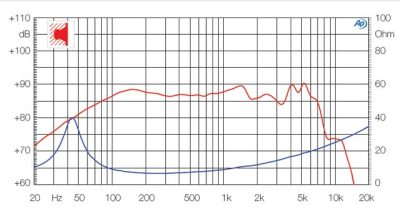

  • Frequency response 45-6,000 Hz
  • Recommended enclosure type: Reflex Box
  • Recommended closed volume: 17 dm3
  • Recommended tuning frequency: 55 Hz

HW162 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

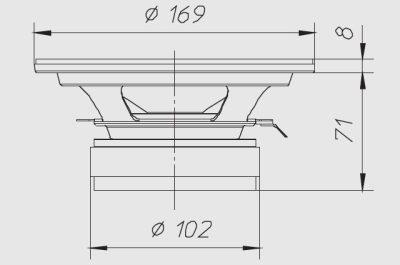

HW162 Dimensions

  • Outer diameter: 169 mm
  • Depth below flange: 71 mm
  • Flange thickness: 8 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 158
  • Weight with individual packaging: 1.43 Kg

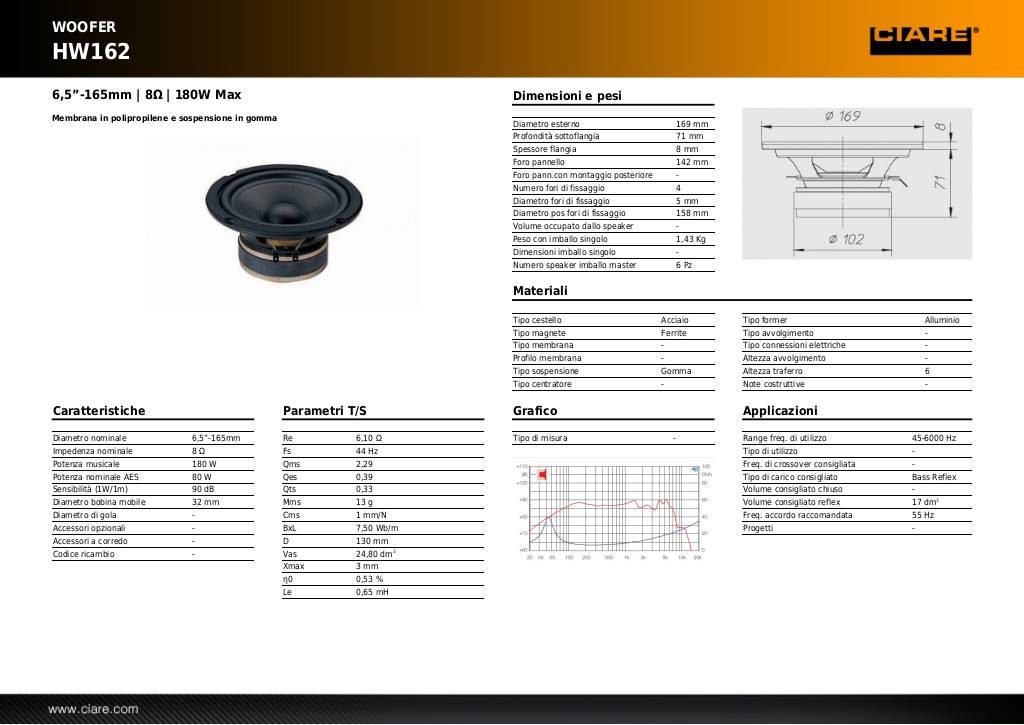

Scheda tecnica

20131104101423-hw162.pdf
