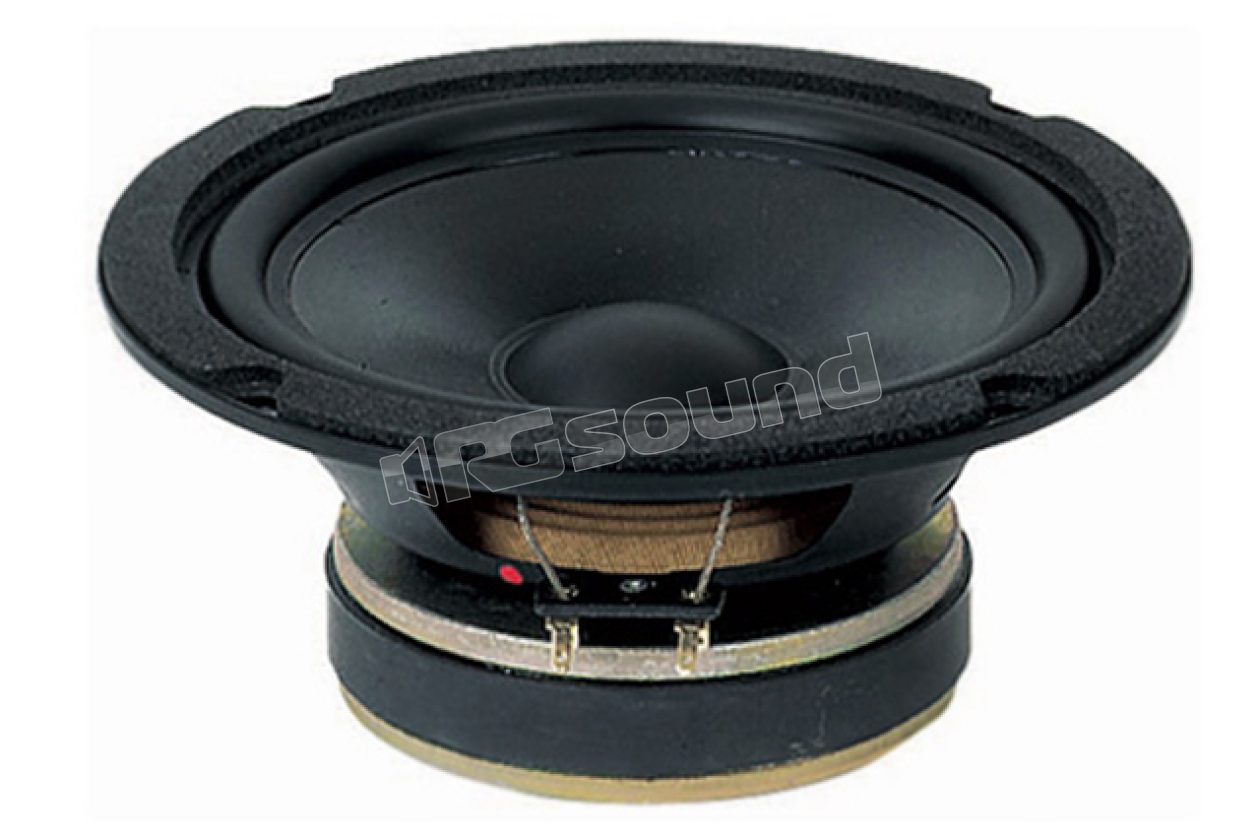

HW161N 165mm Woofer

Ciare
Your price:
€ 50,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
80 Watt
Frequency Response
40 - 5.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
1,4 Kg
Installation Depth
73,5 mm
Voice Coil Diameter
32 mm

Ciare HW161N woofer 165mm damped cellulose membrane and rubber suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HW161N Features

  • Max Power: 180W
  • Nominal Power: 80W
  • Nominal Impedance: 8Ω
  • Diameter: 165mm
  • Voice Coil Diameter: 32mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency Response 40-5,000 Hz
  • Recommended Load Type: Reflex Box
  • Recommended Closed Volume: 17 dm³
  • Recommended Tuning Frequency: 53 Hz

HW161N Materials

  • Basket Type: Steel
  • Magnet Type: Ferrite
  • Suspension Type: Rubber
  • Former Type: Aluminum
  • Pole Piece Height: 6 mm

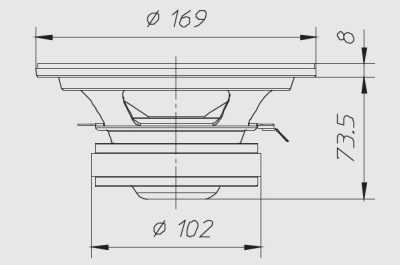

HW161N Dimensions

  • Outer Diameter: 169 mm
  • Depth Below Flange: 73.5 mm
  • Flange Thickness: 8 mm
  • Panel Hole: 142 mm
  • Number of Mounting Holes: 4
  • Mounting Hole Diameter: 5 mm
  • Mounting Hole Position Diameter: 158
  • Weight with Single Box: 1.40 Kg

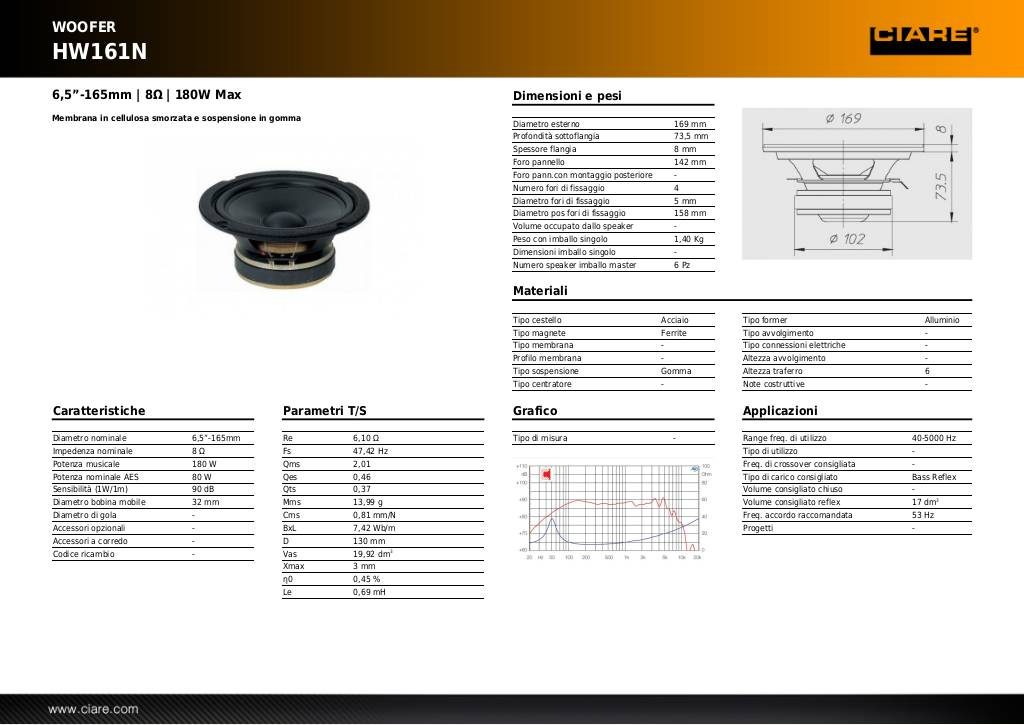

Scheda tecnica

20131104100714-hw161n.pdf

1 Ciare HW161N woofer speaker 8 Ohm
€ 50,00 Price incl. VAT
