HW159 165mm woofer, 8 Ohm impedance

Ciare
Your price:
€ 38,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
150 Watt
RMS Power
60 Watt

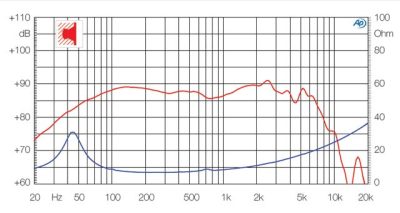

Frequency Response
55 - 6.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
1,1 Kg
Installation Depth
66 mm
Voice Coil Diameter
25 mm

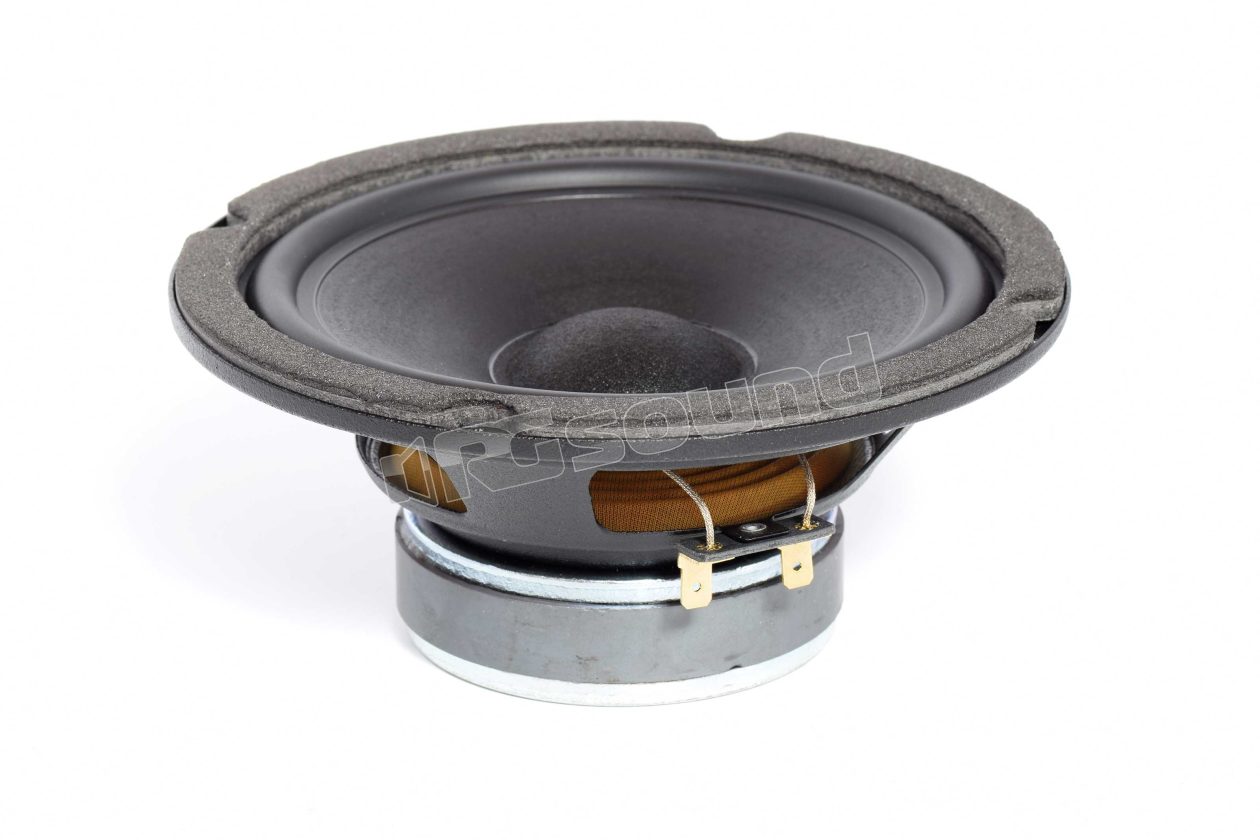

Ciare HW159 woofer 165mm is a Hi-Fi woofer speaker with a nominal diameter of 165 mm (6.5″) and impedance of 8 Ω. Its construction features a steel stamped basket and a ferrite magnetic assembly with a diameter of 86 mm. This woofer finds application in small 2-way systems with high quality/price ratio.

The preferred acoustic loading for the HW159 is in closed boxes of approximately 9 liters. The extension toward the high frequency range of this woofer (approximately 6000 Hz) allows easy crossover with any tweeter, even small sizes, such as the Ciare HT200.

HW159 Features

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 8 Ohm
  • Diameter: 165mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 55-6,000 Hz

HW159 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 5 mm

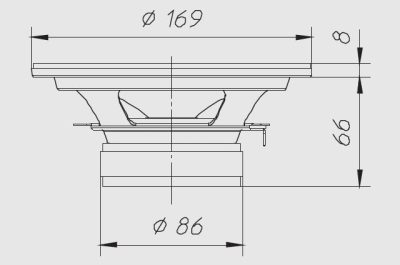

HW159 Dimensions

  • Outer diameter: 169 mm
  • Depth below flange: 66 mm
  • Flange thickness: 8 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 158
  • Weight with single packaging: 1.11 Kg

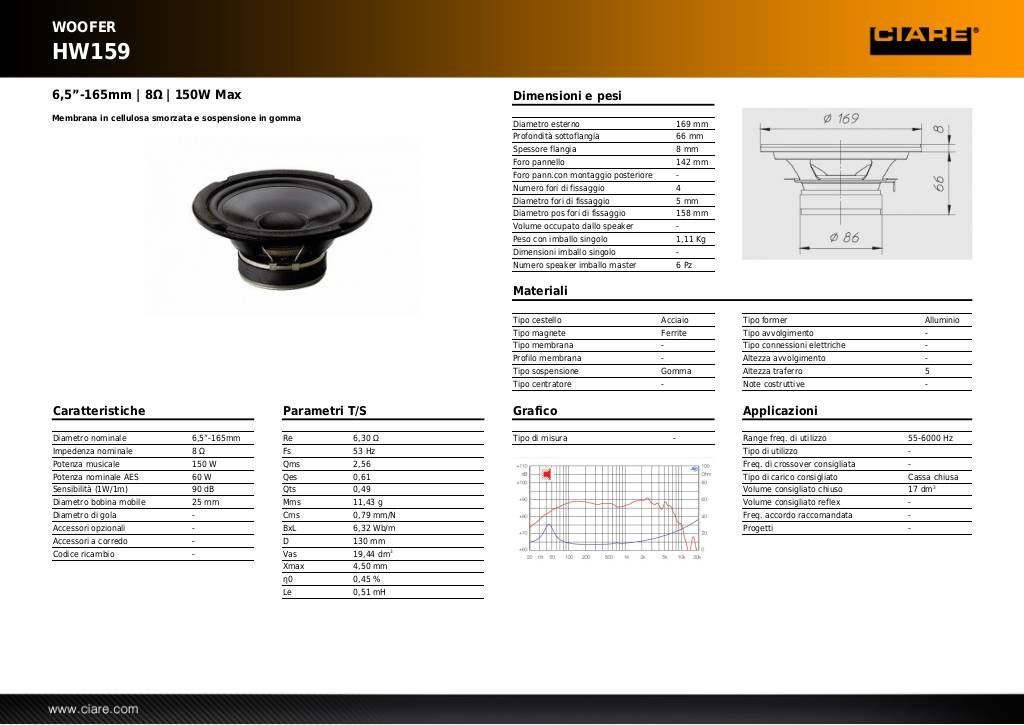

Scheda tecnica

20131104095840-hw159.pdf
