HW131 130mm woofer 8 Ohm

Ciare
Your price:
€ 37,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
180 Watt
RMS Power
70 Watt
Frequency Response
60 - 8.000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
1,35 Kg
Installation Depth
62,5 mm
Voice Coil Diameter
32 mm

Ciare HW131 woofer 130mm is a Hi-Fi woofer speaker with a nominal diameter of 130 mm (5″). Its construction features a steel basket with a powerful ferrite magnetic complex with a diameter of 102 mm.

This woofer can be installed in a box of approximately 6 liters, bass reflex tuned around 72 Hz. In fact, the HW131 is an excellent component for use in Home Audio and Hi-Fi systems when you need to keep the physical size of the cabinets compact. Furthermore, the HW131 is the 8 Ω version of the Ciare CW131 woofer.

HW131 Features

  • Max power: 180W
  • Nominal power: 70W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 88 dB

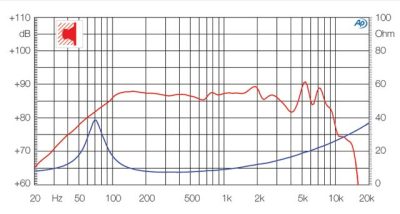

  • Frequency response 60-8,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 6 dm3
  • Recommended tuning frequency: 72 Hz

HW131 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 6 mm

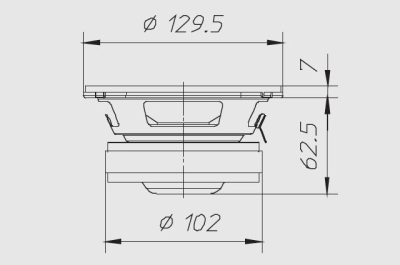

HW131 Dimensions

  • Outer diameter: 129.5 mm
  • Depth below flange: 62.5 mm
  • Flange thickness: 7 mm
  • Panel hole: 112 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 138
  • Weight with single packaging: 1.35 Kg

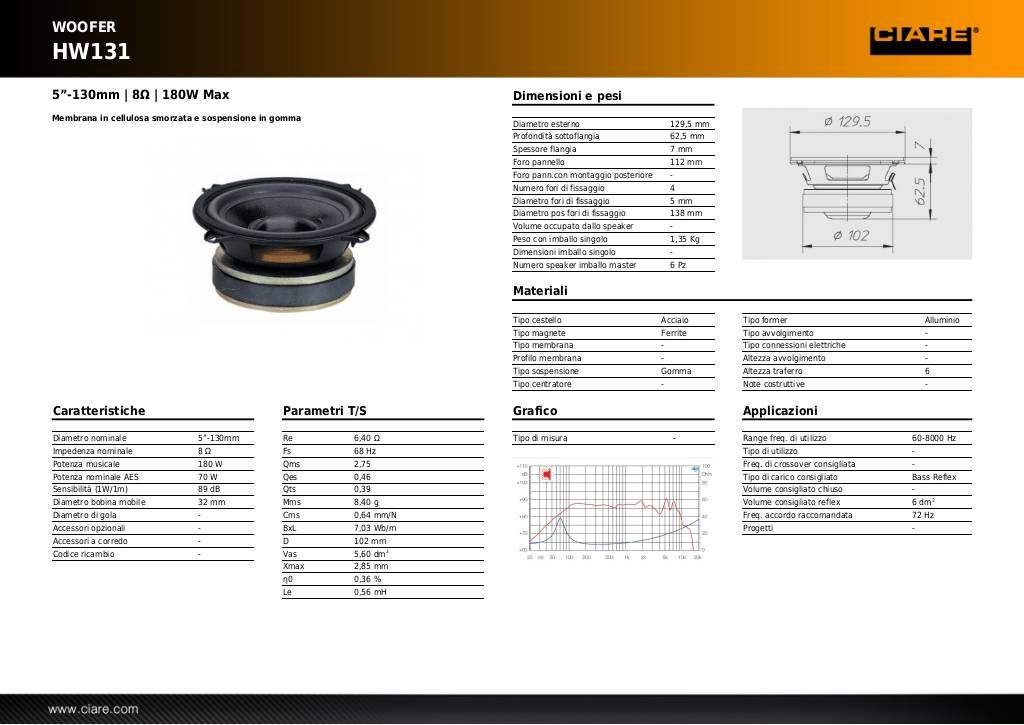

Scheda tecnica

20131031180436-hw131.pdf
