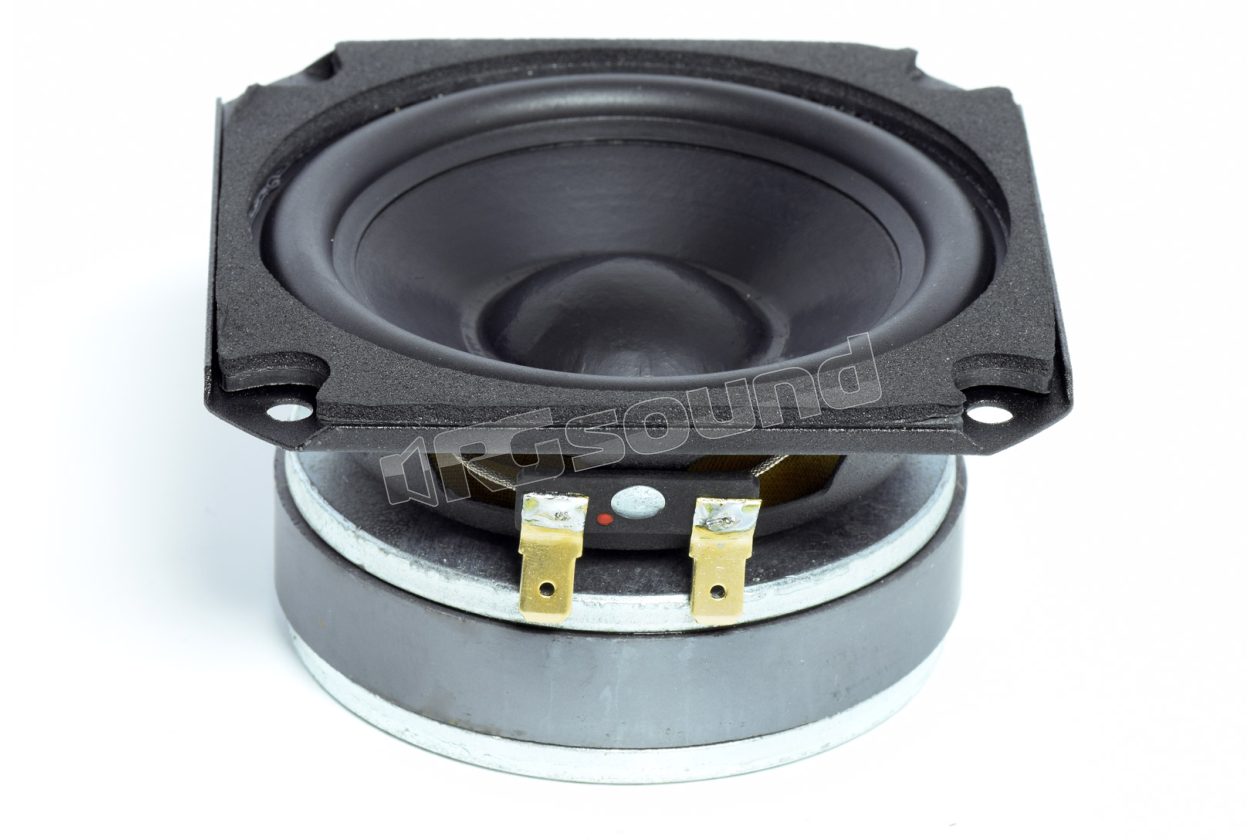

HW100 100mm woofer

Ciare
Your price:
€ 32,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
100 mm
MAX Power
150 Watt
RMS Power
50 Watt

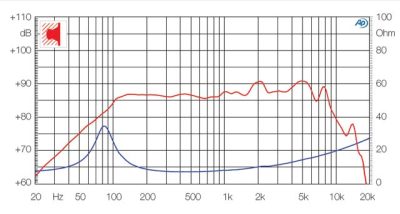

Frequency Response
75 - 8.000 Hertz
Sensitivity
88 dB
Impedance
8 Ohm
Weight
0,97 Kg
Voice Coil Diameter
25 mm

Ciare HW100 woofer 100mm damped cellulose cone and rubber suspension. Ciare is a company constantly in step with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

HW100 Features

  • Max power: 150W
  • Nominal power: 50W
  • Nominal impedance: 8Ω
  • Diameter: 100mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB
  • Frequency response 75-8,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 2.5 dm3
  • Recommended tuning frequency: 50 Hz

HW100 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 5 mm

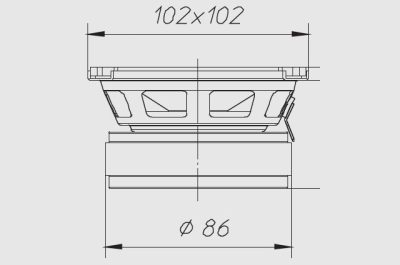

HW100 Dimensions

  • Outer diameter: 102 x 102 mm
  • Panel hole: 91 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole position diameter: 116
  • Weight with individual packaging: 0.97 Kg

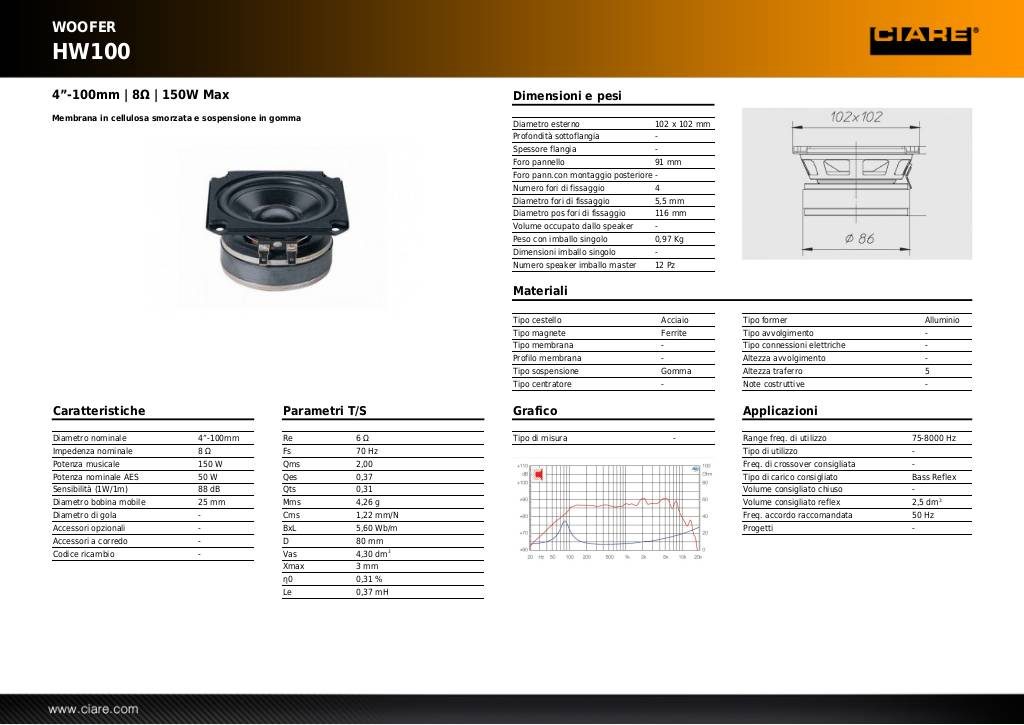

Scheda tecnica

20131031174355-hw100.pdf

1 Ciare HW100 8 Ohm woofer speaker
€ 32,00 Price incl. VAT
