HT269

Ciare
Your price:
€ 49,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2.000 - 20.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Outer Diameter
110 mm
Installation Depth
44,5 mm
Tweeter Material
Alluminio e Ferrite

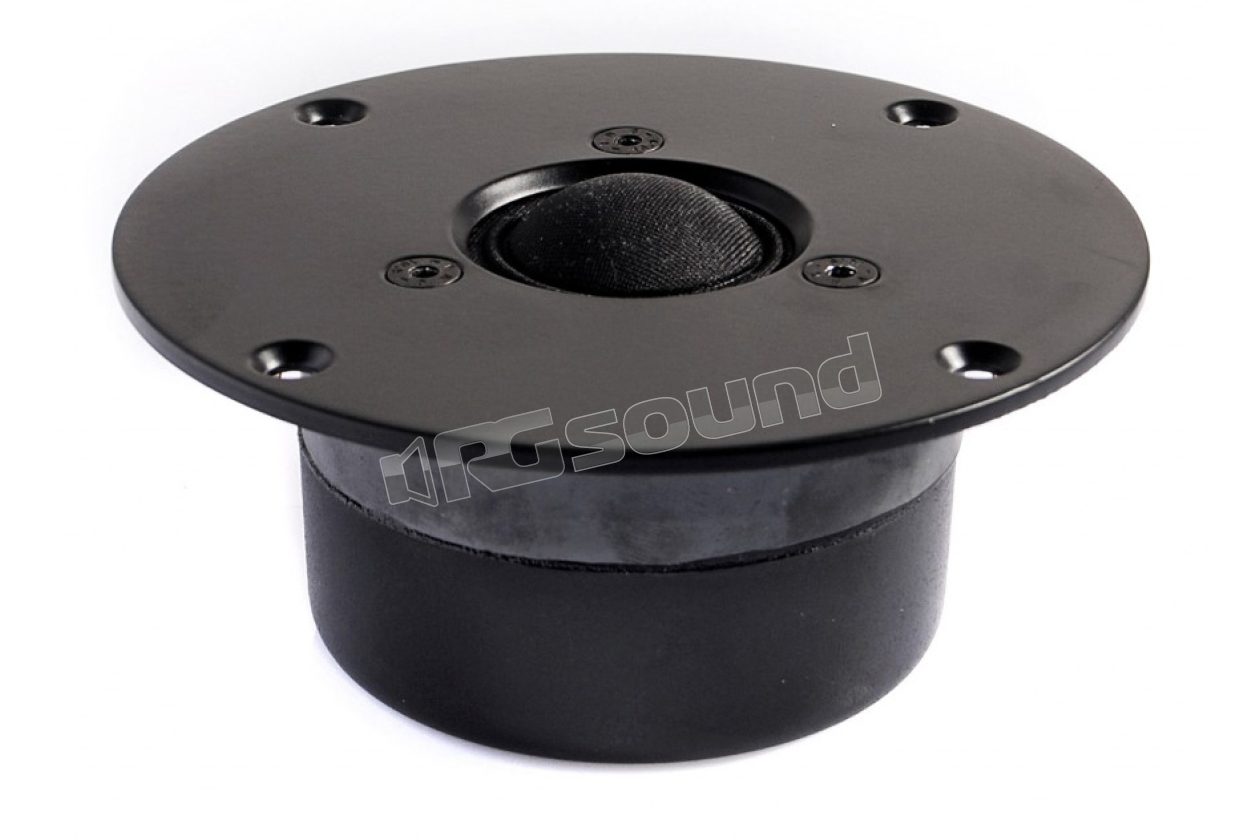

Ciare HT269 Tweeter soft dome in treated fabric, aluminum flange. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HT269 Features

  • Music power: 200 W
  • Nominal AES power: 100 W
  • Nominal diameter: 1''-25mm
  • Nominal impedance: 8Ω
  • Voice coil: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended crossover freq: 2700 Hz
  • Frequency range of use: 2000-20000 Hz

HT269 Materials

  • Magnet type: Ferrite
  • Former type: Aluminum
  • Air gap height: 3 mm

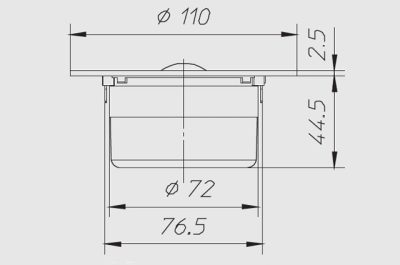

HT269 Dimensions

  • External diameter: 110 mm
  • Depth under flange: 44.5 mm
  • Flange thickness: 2.5 mm
  • Panel hole: 75 mm
  • Number of fixing holes: 4
  • Fixing hole diameter: 5 mm
  • Fixing hole position diameter: 96
  • Weight with single package: 0.645 Kg

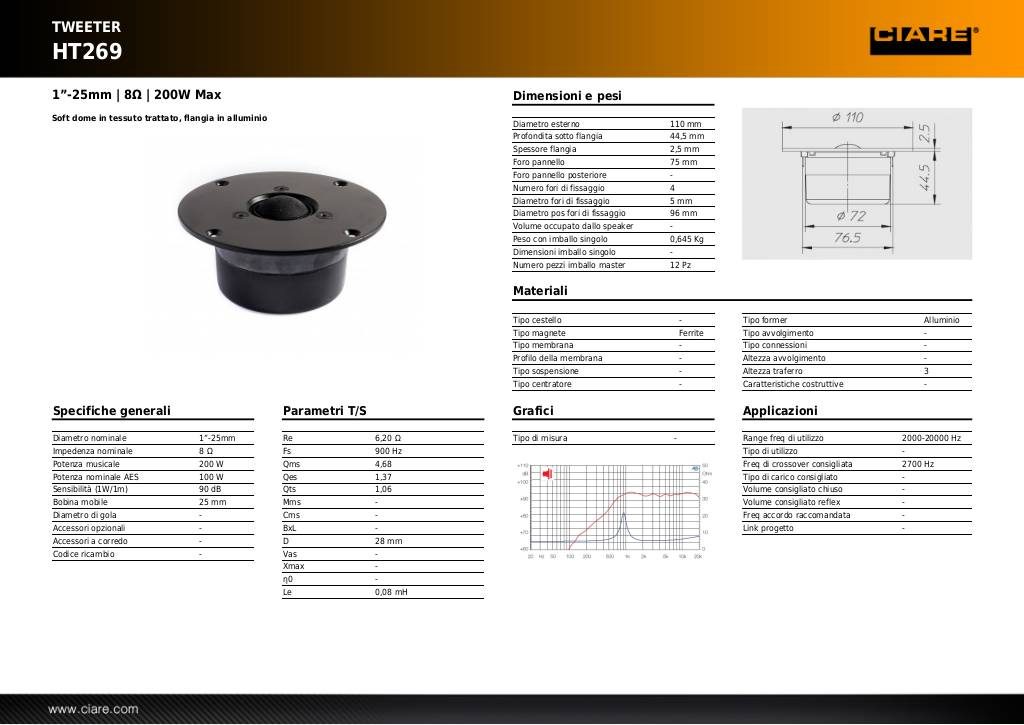

Scheda tecnica

20140228174041-ht269.pdf

1 Ciare HT269 tweeter speaker
€ 49,00 Price incl. VAT
