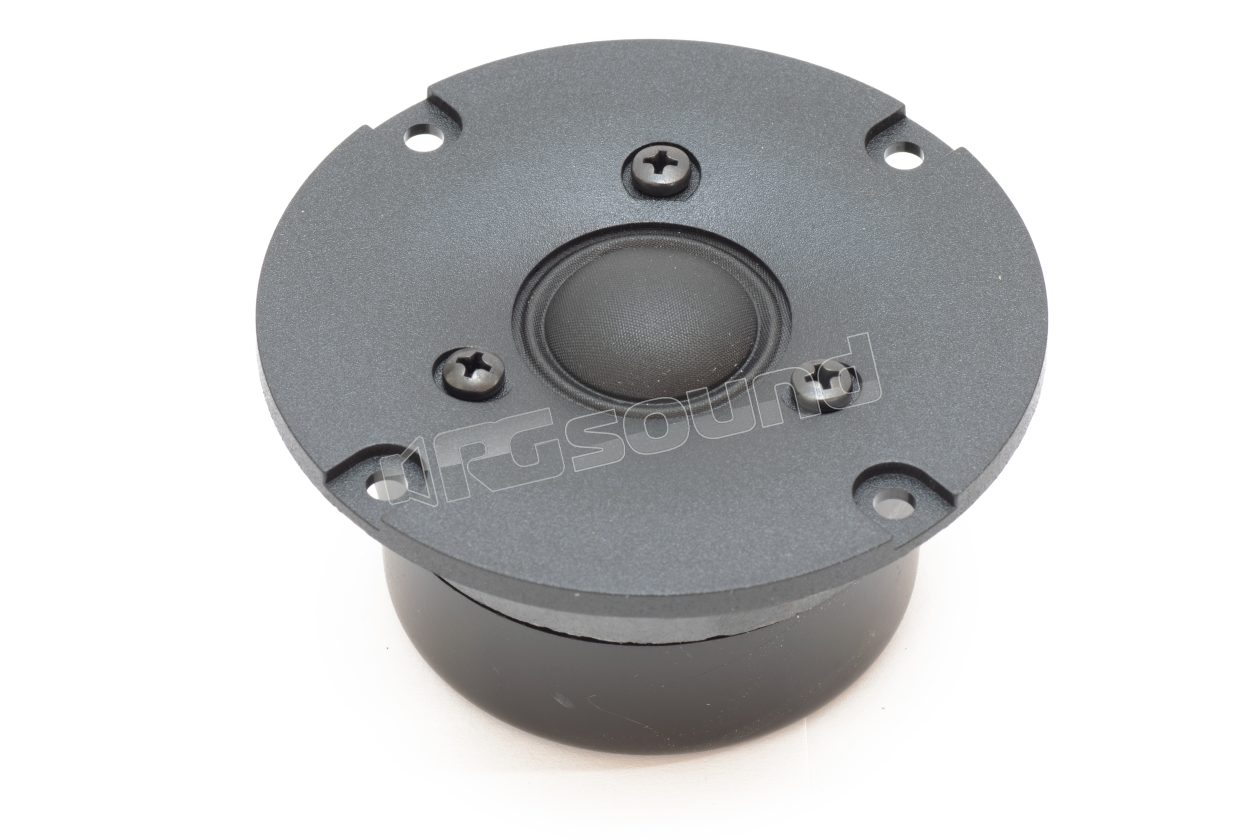

HT264 100mm tweeter

Ciare
Your price:
€ 47,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
100 mm
MAX Power
250 Watt
RMS Power
100 Watt
Frequency Response
2.500 - 20.000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Weight
0,66 Kg
Installation Depth
44,5 mm
Voice Coil Diameter
25 mm

Ciare HT264 tweeter 100mm soft dome in silk with rear load volume and ferrofluuid. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HT264 Features

  • Max power: 250W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 100mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 92 dB
  • Frequency response 2,500-20,000 Hz
  • Recommended crossover frequency: 3,000 Hz

HT264 Materials

  • Magnet type: Ferrite
  • Former type: Aluminum
  • Air gap height: 3 mm

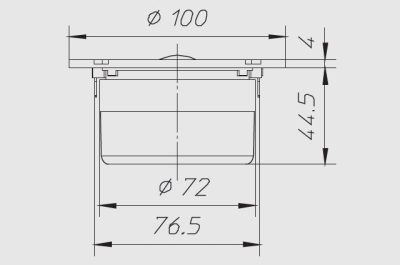

HT264 Dimensions

  • Outer diameter: 100 mm
  • Sub-flange depth: 44.5 mm
  • Flange thickness: 4 mm
  • Panel hole: 75 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 88
  • Weight with single packaging: 0.66 Kg

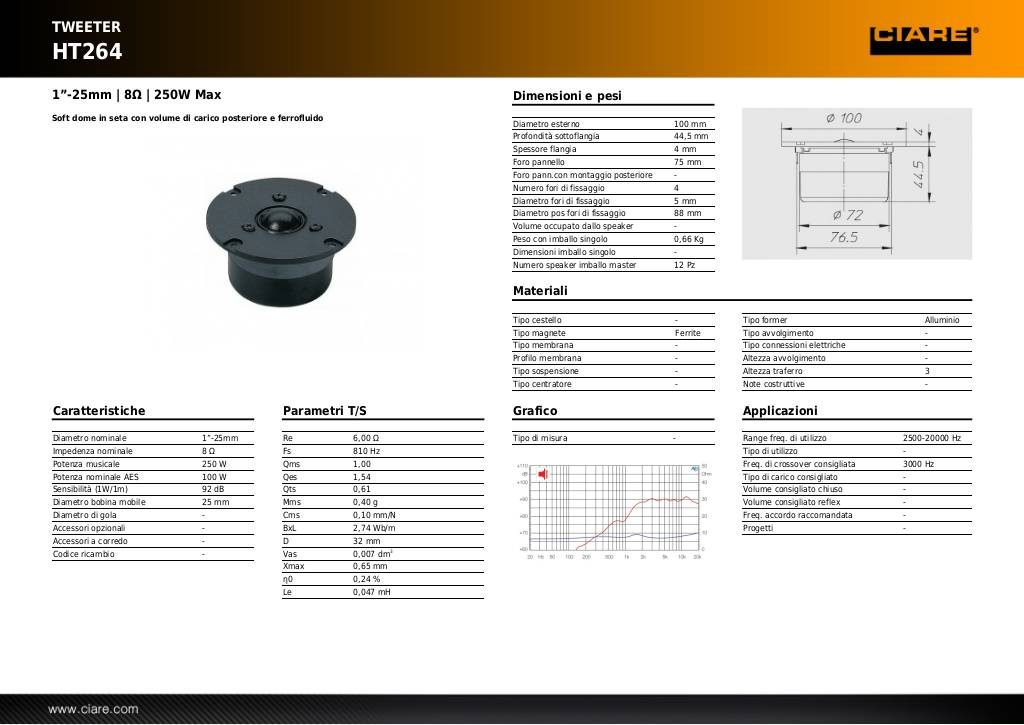

Scheda tecnica

20131031170742-ht264.pdf

1 Ciare HT264 tweeter speaker 8 Ohm
€ 47,00 Price incl. VAT
