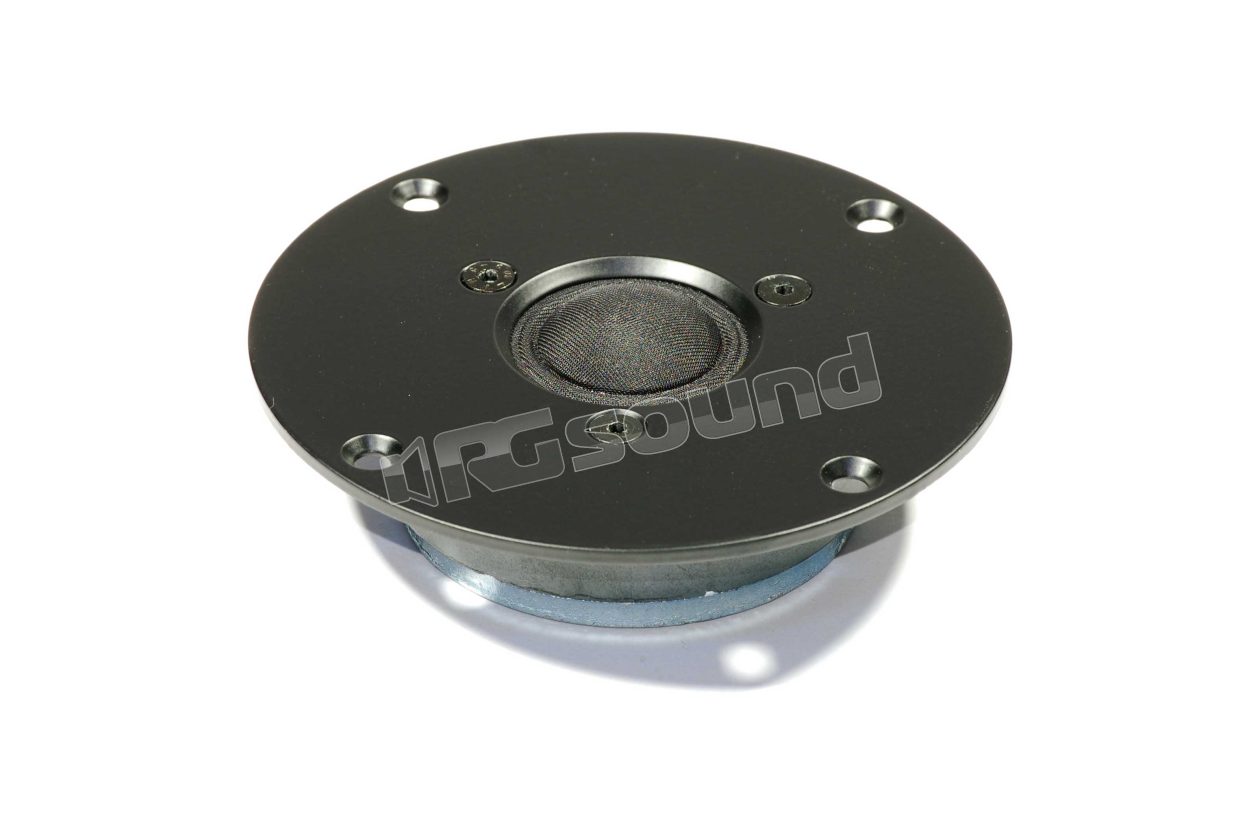

HT263 110mm 8 Ohm tweeter

Ciare
Your price:
€ 38,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
100 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2.500 - 20.000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,65 Kg
Installation Depth
26 mm
Voice Coil Diameter
25 mm

Ciare HT263 tweeter 110mm soft dome in silk, aluminum flange. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HT263 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 110mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 91 dB

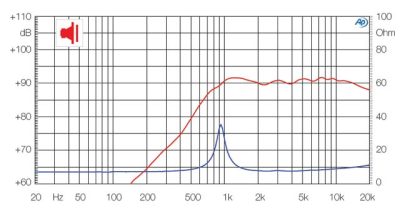

  • Frequency response 2,500-20,000 Hz
  • Recommended crossover frequency: 3,000 Hz

HT263 Materials

  • Magnet type: Ferrite
  • Former type: Aluminum
  • Air gap height: 3 mm

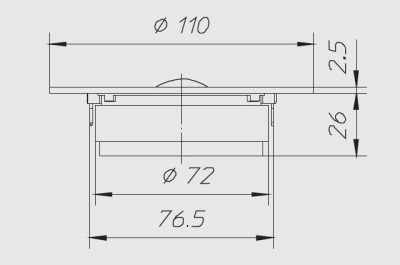

HT263 Dimensions

  • External diameter: 110 mm - ''
  • Depth below flange: 26 mm
  • Flange thickness: 2.5 mm
  • Panel hole: 75 mm
  • Number of mounting holes: 4
  • Diameter of mounting holes: 5 mm
  • Diameter pos. mounting holes: 96
  • Weight with single packaging: 0.65 Kg

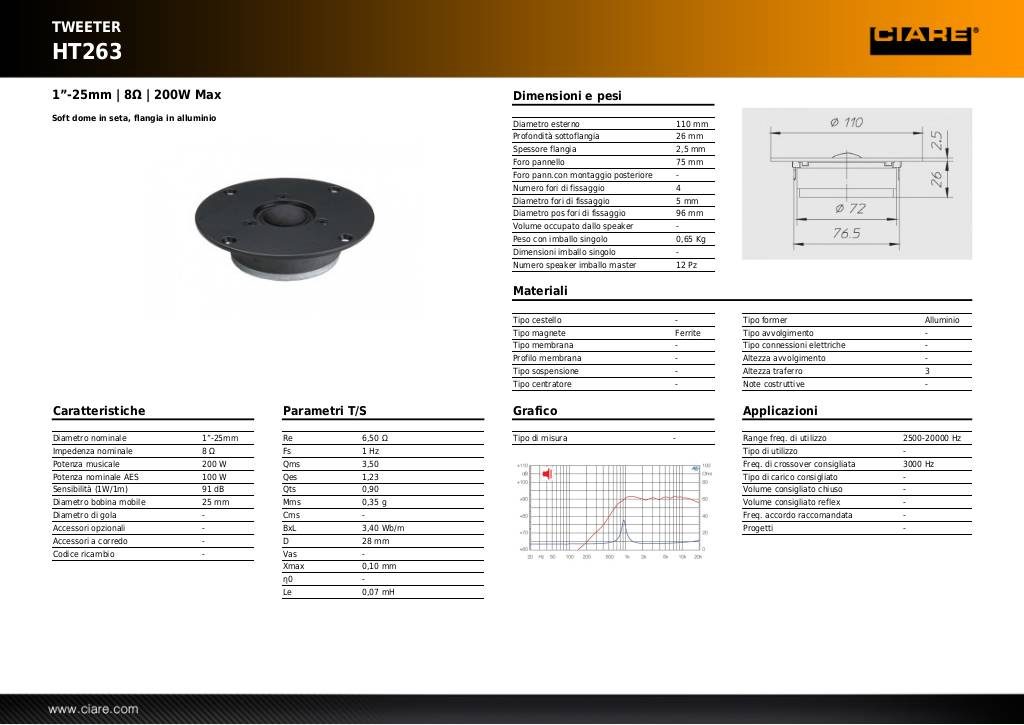

Scheda tecnica

20131031163716-ht263.pdf

1 Speaker 8 Ohm Ciare tweeter HT263
€ 38,00 Price incl. VAT
