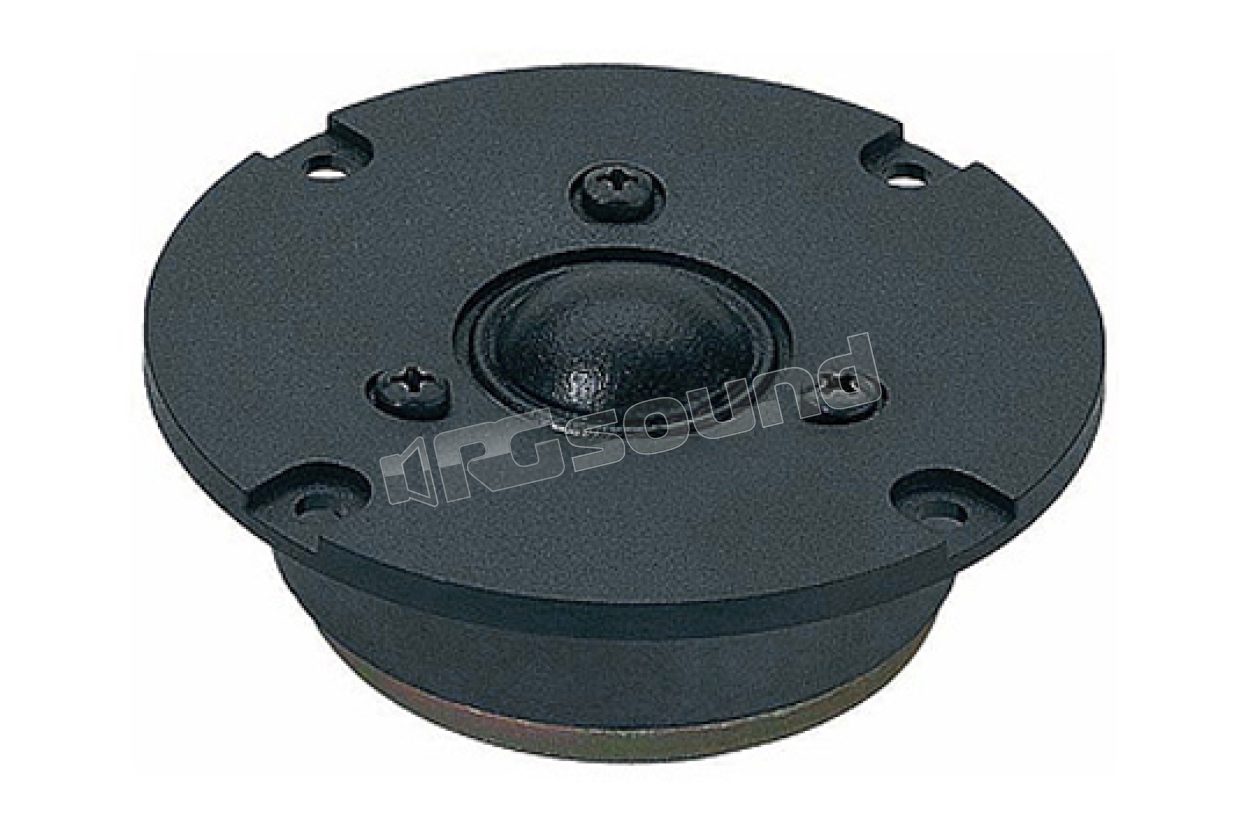

HT262 100mm tweeter

Ciare
Your price:
€ 35,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
100 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2.000 - 20.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
0,63 Kg
Installation Depth
26 mm
Voice Coil Diameter
25 mm

Ciare HT262 tweeter 100mm soft dome in silk, aluminum flange. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the creation of each component.

HT262 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 100mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 2,000-20,000 Hz
  • Recommended crossover frequency: 3,000 Hz

HT262 Materials

  • Magnet type: Ferrite
  • Former type: Aluminum
  • Air gap height: 3 mm

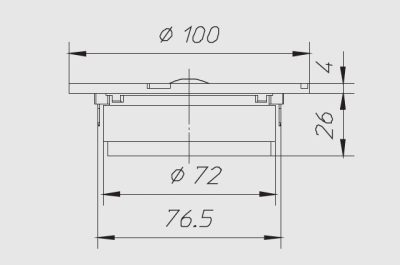

HT262 Dimensions

  • Outer diameter: 100 mm
  • Depth below flange: 26 mm
  • Flange thickness: 4 mm
  • Panel hole: 75 mm
  • Number of fixing holes: 4
  • Fixing hole diameter: 5 mm
  • Fixing hole position diameter: 88
  • Weight with single packaging: 0.63 Kg

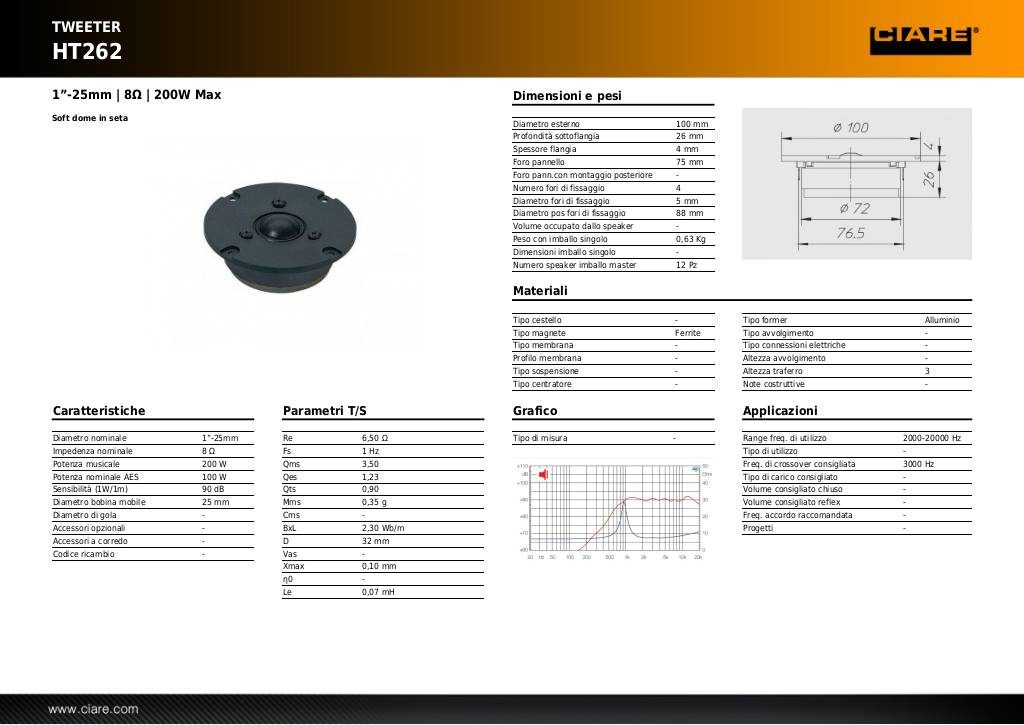

Scheda tecnica

20131031165240-ht262.pdf

1 Speaker at 8 Ohm Ciare tweeter HT262
€ 35,00 Price incl. VAT
