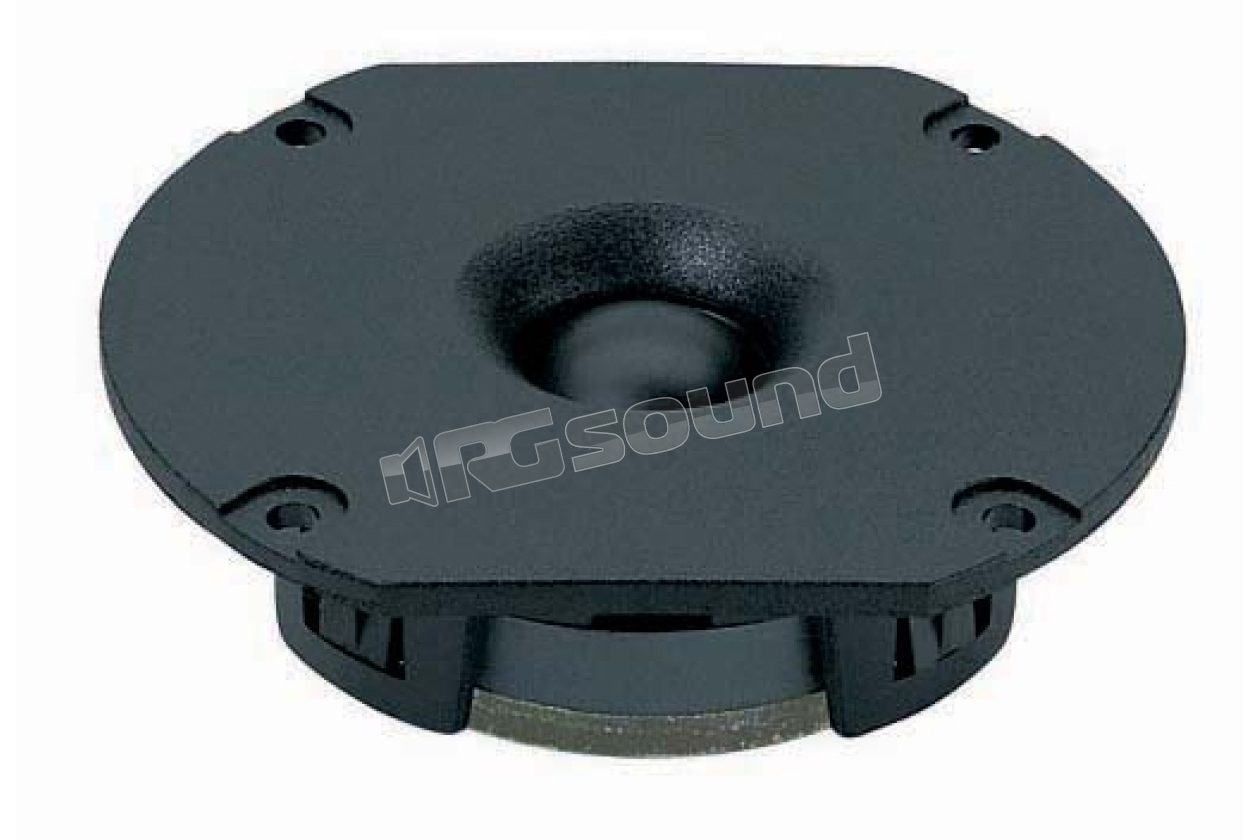

HT200 tweeter 90x78mm

Ciare
Your price:
€ 32,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
100 Watt
RMS Power
60 Watt

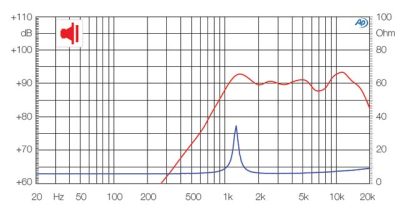

Frequency Response
2.500 - 20.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
0,28 Kg
Installation Depth
21 mm
Voice Coil Diameter
20 mm

Ciare HT200 tweeter 90x78mm soft dome in polyamide. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the creation of every component.

HT200 Features

  • Max power: 100W
  • Nominal power: 60W
  • Nominal impedance: 8Ω
  • Diameter: 90x78mm
  • Voice coil diameter: 20mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 2,500-20,000 Hz
  • Recommended crossover frequency: 3,500 Hz

HT200 Materials

  • Former type: Kapton
  • Air gap height: 2 mm

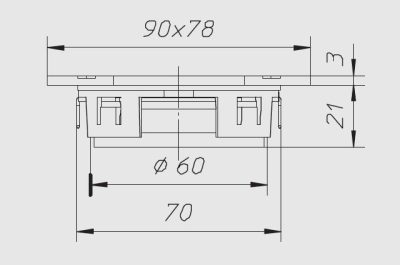

HT200 Dimensions

  • Outer diameter: 90 x 78 mm
  • Sub-flange depth: 21 mm
  • Flange thickness: 3 mm
  • Panel hole: 70 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4 mm
  • Mounting hole position diameter: 81
  • Weight with individual packaging: 0.28 Kg

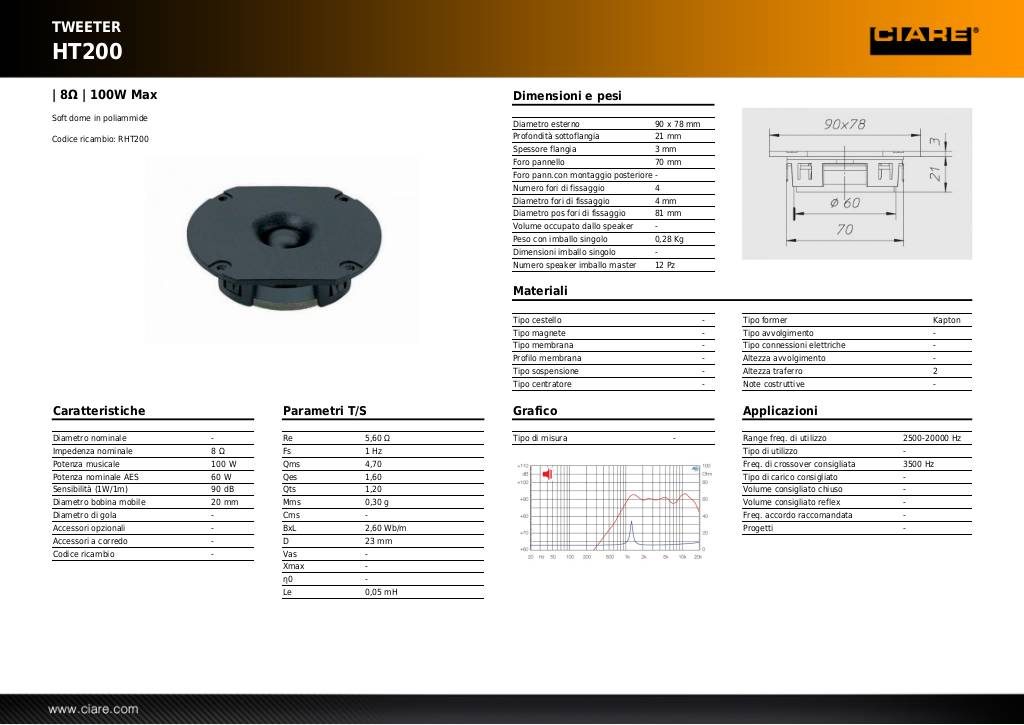

Scheda tecnica

20131031161414-ht200.pdf

1 Ciare HT200 tweeter speaker 8 Ohm
€ 32,00 Price incl. VAT
