HT080 87 mm tweeter, 8 Ohm impedance (last piece)

Ciare

Discontinued

Your price:
€ 13,70
Price per single item (VAT included)
Type
Tweeter
Speaker Size
87 mm
MAX Power
90 Watt
RMS Power
35 Watt
Frequency Response
3.000 - 15.000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Weight
0,26 Kg
Installation Depth
34 mm
Voice Coil Diameter
14 mm

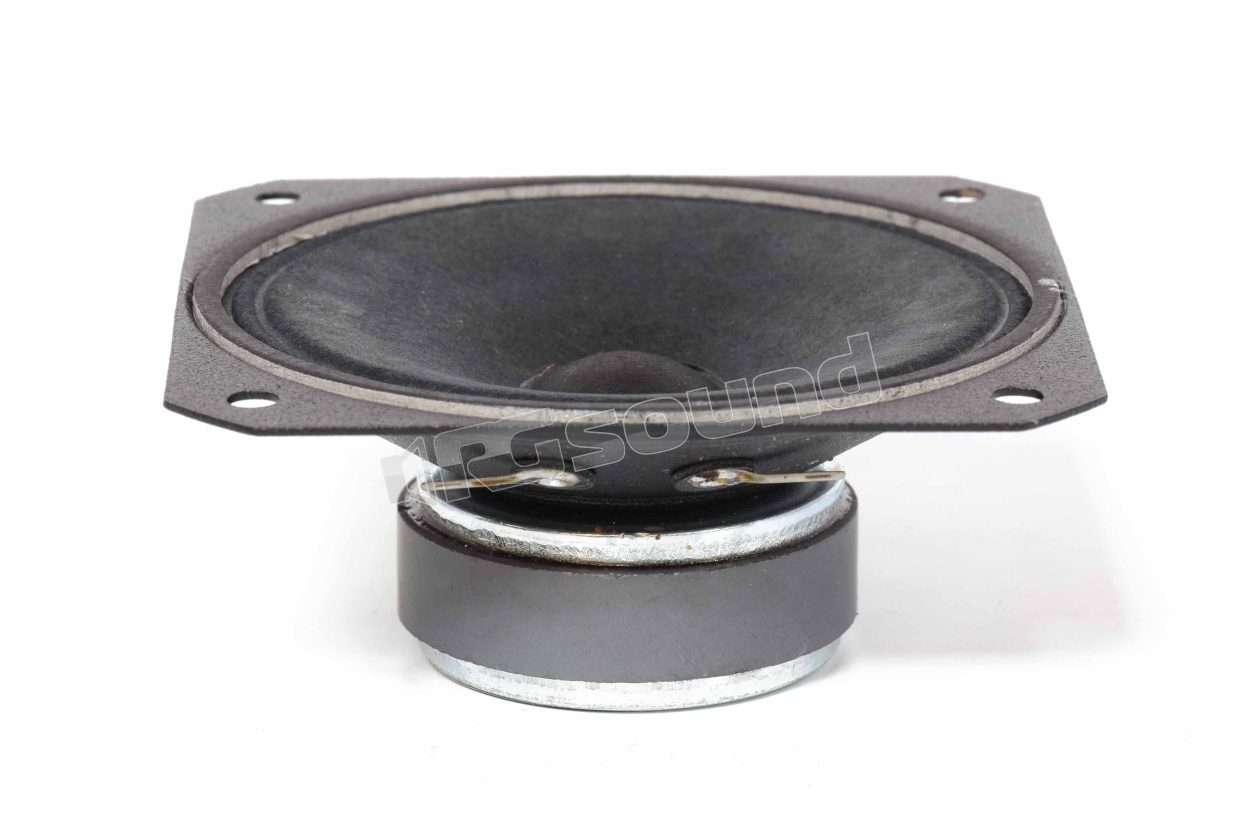

Ciare HT080 tweeter 87mm (available 1 last piece only) with 8 Ohm impedance, membrane and suspension in cellulose fiber.

Ciare HT080 is a tweeter with nominal diameter of 80 mm (3″), dedicated to the Home Audio and Hi-Fi world, always with the characteristic vintage look, the 50 mm (2″) version Ciare HT050 is available. The constructive structure of the HT080 provides the use of a "basket" in steel sheet with a ferrite magnetic complex of 45 mm diameter. The depth under flange of this Ciare tweeter is just 34 mm, and this allows its installation in practically any type of cabinet.

HT080 Features

  • Max power: 90W
  • Nominal power: 35W
  • Nominal impedance: 8 Ohm
  • Diameter: 87mm
  • Mobile coil diameter: 14mm
  • Sensitivity 1W/1m: 92 dB

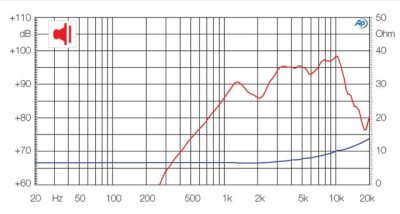

  • Frequency response 3,000-15,000 Hz

HT080 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Air gap height: 2 mm

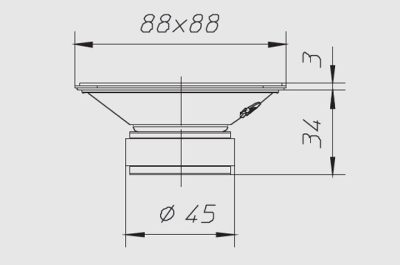

HT080 Dimensions

  • Outer diameter: 88 x 88 mm
  • Depth under flange: 34 mm
  • Flange thickness: 3 mm
  • Panel hole: 81 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 100
  • Weight with single packaging: 0.26 Kg

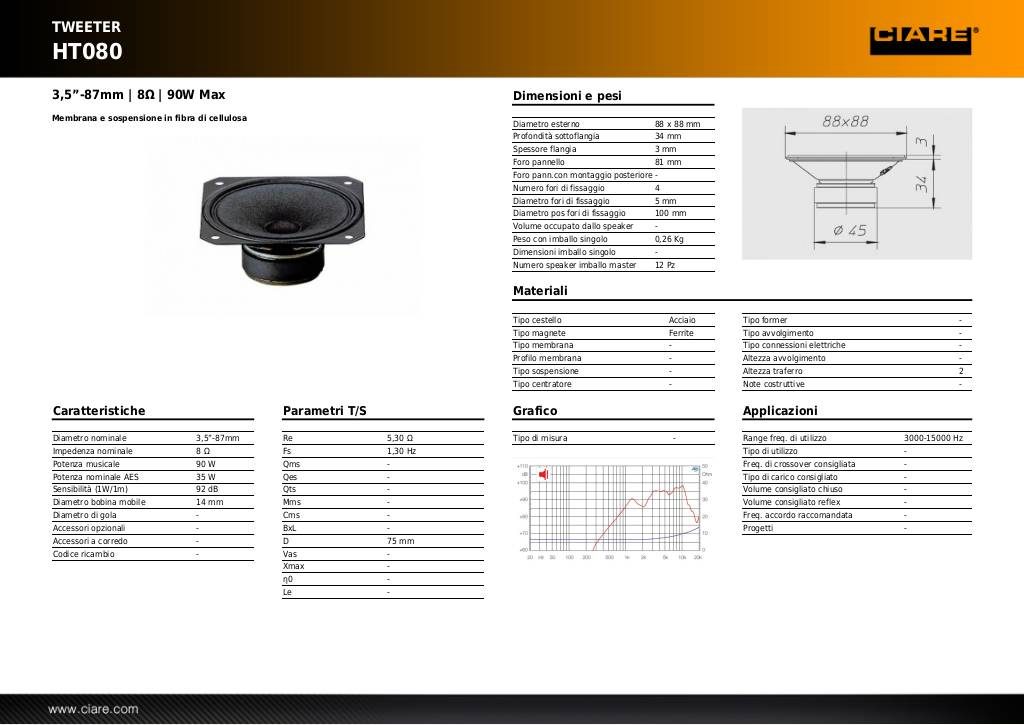

Scheda tecnica

20131031155145-ht080.pdf
