HT050 50mm tweeter

Ciare
Your price:
€ 17,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
90 Watt
RMS Power
35 Watt

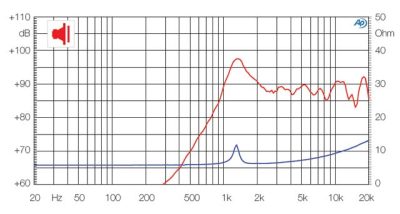

Frequency Response
2.500 - 20.000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,14 Kg
Installation Depth
24 mm
Voice Coil Diameter
14 mm

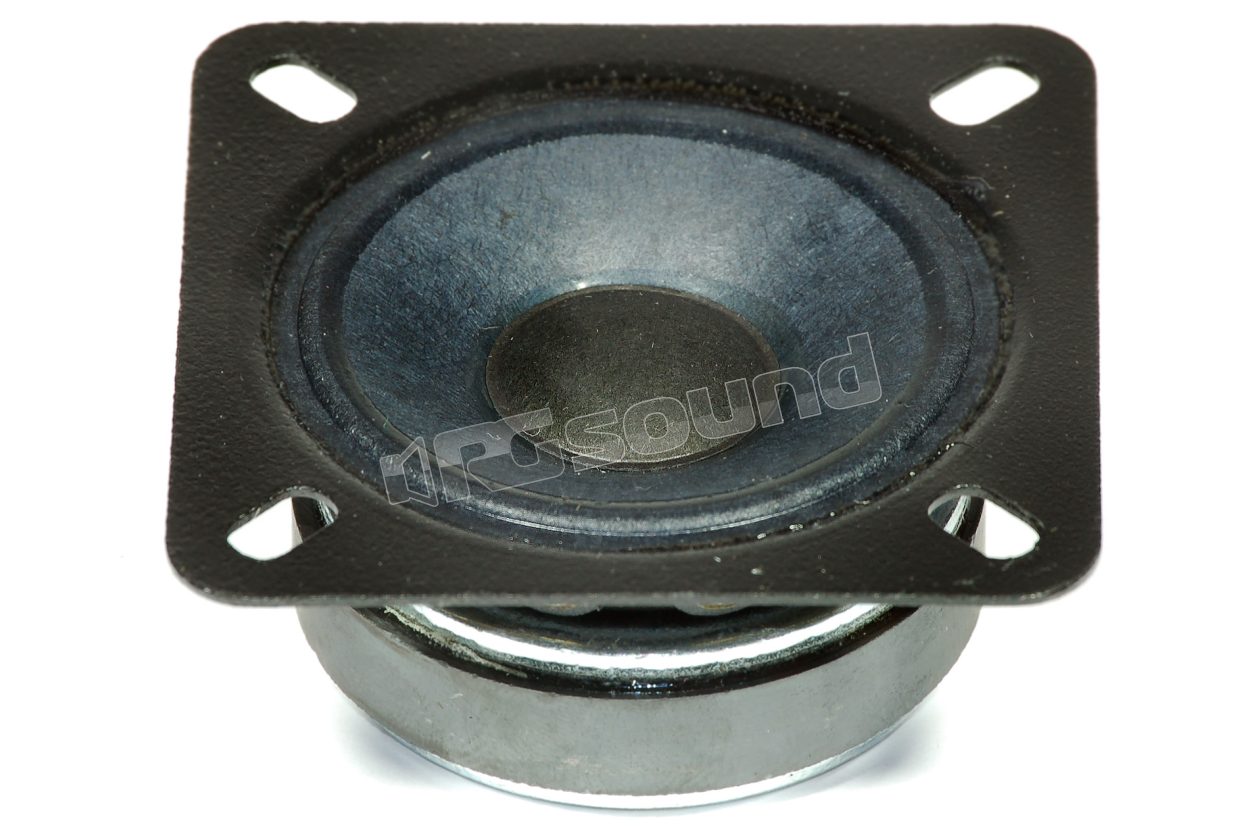

Ciare HT050 tweeter 50mm with cellulose fiber diaphragm and surround.

Ciare HT050 is a tweeter with a nominal diameter of 50 mm (2″) and vintage look, dedicated to the Home Audio and Hi-Fi world, it is the smallest model in the series. Its construction structure uses a steel basket with a ferrite magnetic assembly with a diameter of 45 mm. The depth under flange of this Ciare tweeter is just 24 mm, and this allows its installation in practically any type of cabinet. Also with a vintage look, a version with a nominal diameter of 80 mm (3″) Ciare HT080 is also available.

HT050 Features

  • Max power: 90W
  • Nominal power: 35W
  • Nominal impedance: 8Ω
  • Diameter: 50mm
  • Voice coil diameter: 14mm
  • Sensitivity 1W/1m: 91 dB
  • Frequency response 2,500-20,000 Hz

HT050 Materials

  • Magnet type: Ferrite
  • Gap height: 2 mm

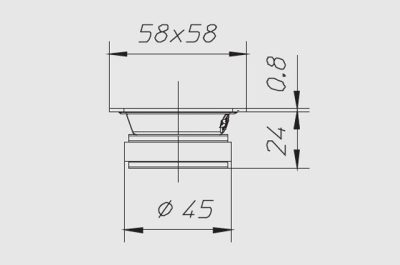

HT050 Dimensions

  • Outer diameter: 58 x 58 mm
  • Depth under flange: 24 mm
  • Flange thickness: 0.8 mm
  • Panel hole: 50 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4.5 mm
  • Mounting hole position diameter: 161
  • Weight with individual packaging: 0.14 Kg

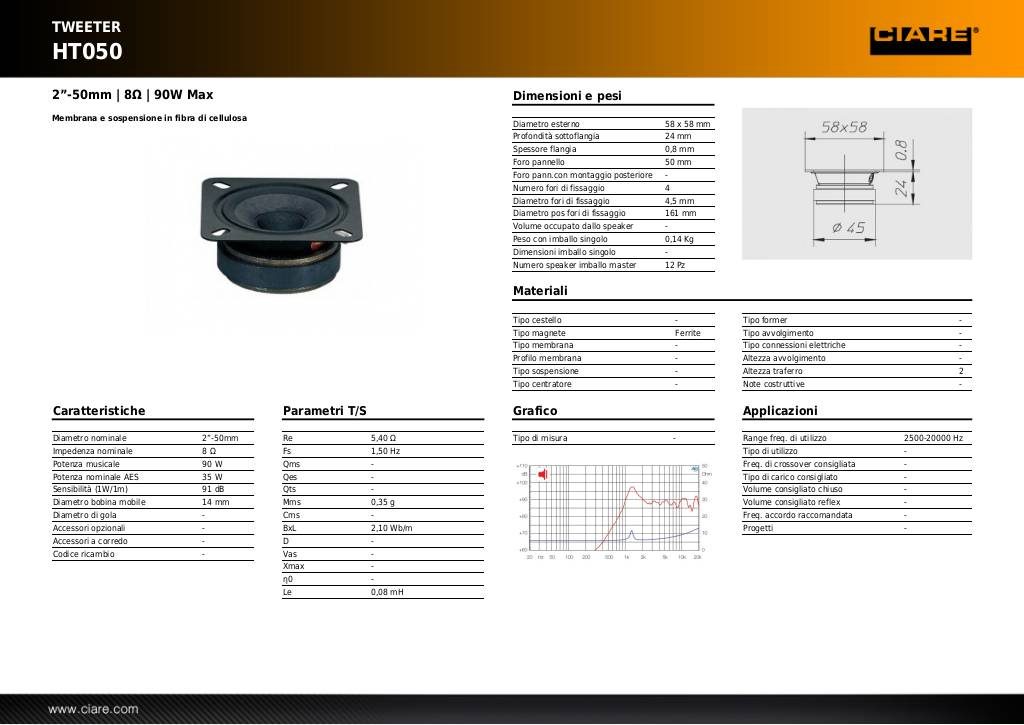

Scheda tecnica

20131031154238-ht050.pdf

1 8 Ohm speaker Ciare HT050 tweeter
€ 17,00 Price incl. VAT
