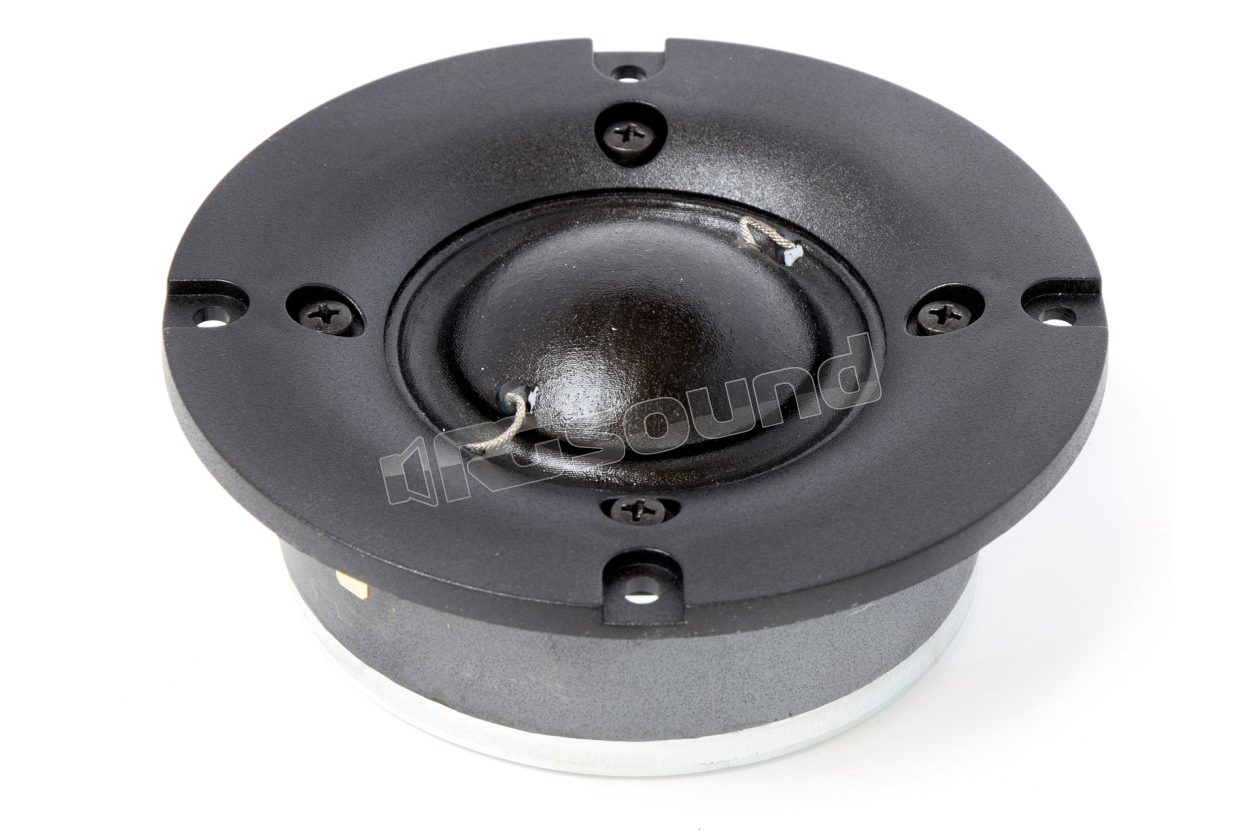

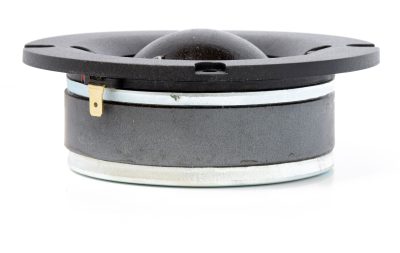

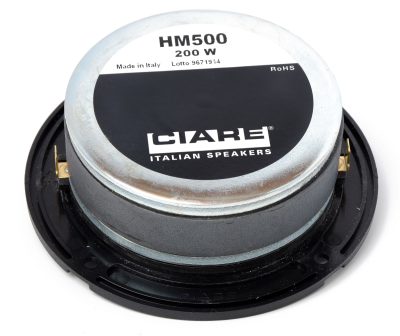

HM500 130mm midrange

Ciare
Your price:
€ 71,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
130 mm
MAX Power
200 Watt
RMS Power
100 Watt
Sensitivity
91 dB
Impedance
8 Ohm
Weight
1,5 Kg
Installation Depth
40 mm
Voice Coil Diameter
50 mm

Ciare HM500 130mm midrange with rear load volume, damped cellulose membrane and polyurethane suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous drive of market demands, with absolute fidelity to its original ideals, first and foremost constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of each component.

HM500 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 91 dB

HM500 Materials

  • Magnet type: Ferrite
  • Air gap height: 3 mm

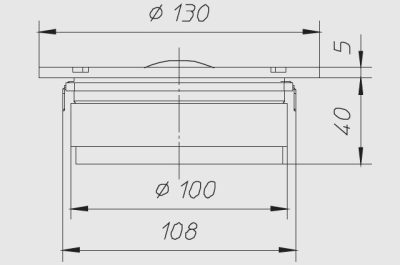

HM500 Dimensions

  • Outer diameter: 130 mm
  • Mounting depth: 40 mm
  • Flange thickness: 5 mm
  • Panel hole: 103 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 116
  • Weight with single package: 1.50 Kg

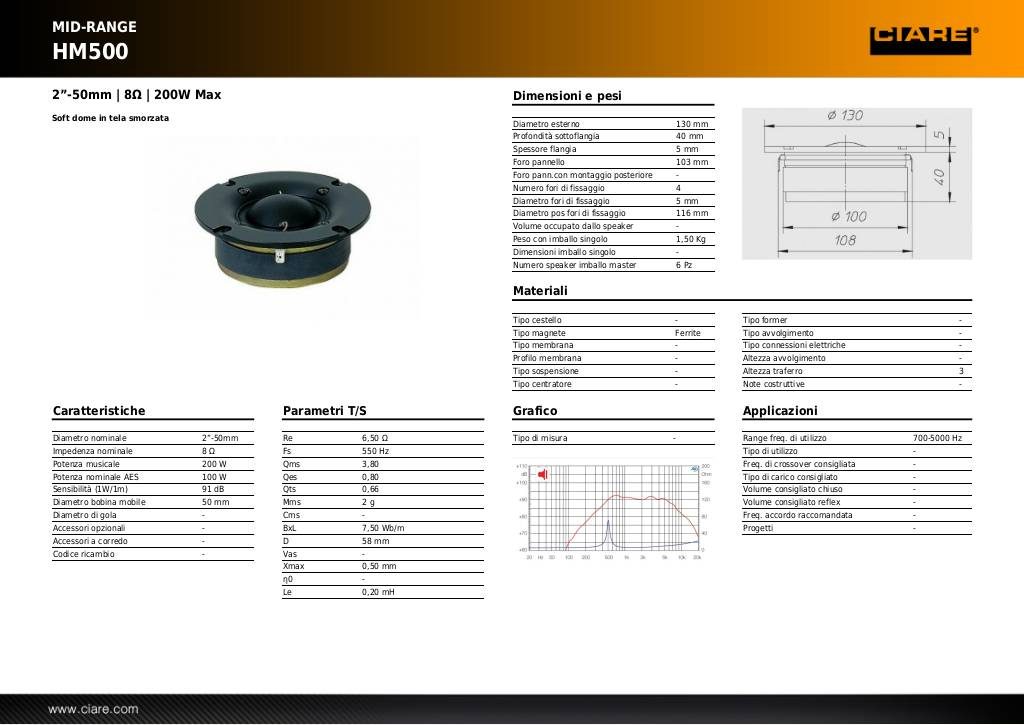

Scheda tecnica

20131031113331-hm500.pdf
