HM130 130mm midrange

Ciare
Your price:
€ 38,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
130 mm
MAX Power
150 Watt
RMS Power
60 Watt
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,8 Kg
Installation Depth
73,5 mm
Voice Coil Diameter
25 mm

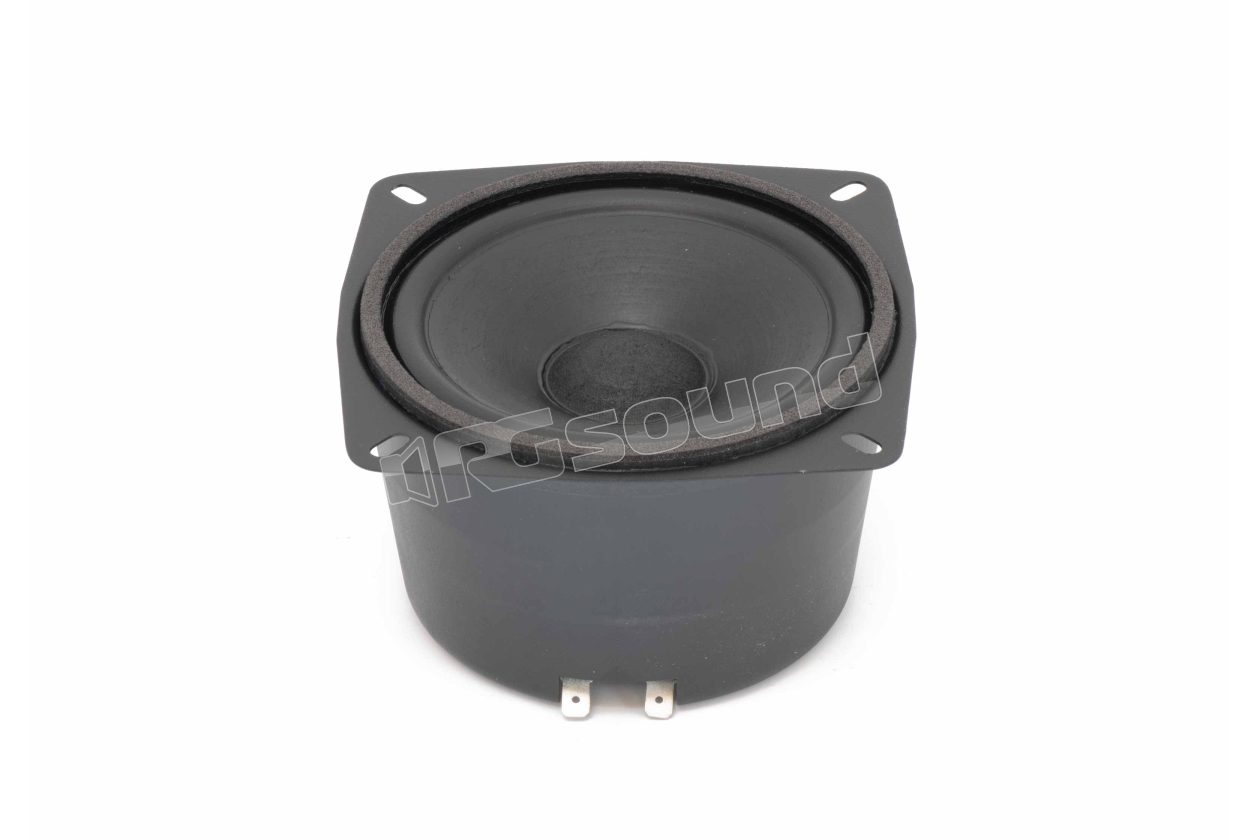

Ciare HM130 midrange 130mm with rear loading volume, damped cellulose membrane and polyurethane suspension.

Ciare HM130 is a midrange speaker with nominal diameter of 130 mm (5″), dedicated to the Home Audio and Hi-Fi world. It is the largest model among the cellulose cone speakers of Ciare's HM series. Its construction structure uses a steel sheet basket with a ferrite magnetic complex, hidden inside a plastic cap that acts as a loading volume. The depth under flange of this Ciare midrange is 73.50 mm, and this allows its installation in cabinets with at least 8 centimeters of net internal depth.

The HM130 can be installed inside a 3-way or higher speaker and does not require dedicated loading volumes. The cap that closes the rear of the speaker functions precisely as a dedicated loading volume, and this makes the use of this Ciare midrange extremely simple.

HM130 Features

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 91 dB

HM130 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Former type: Aluminum
  • Air gap height: 6 mm

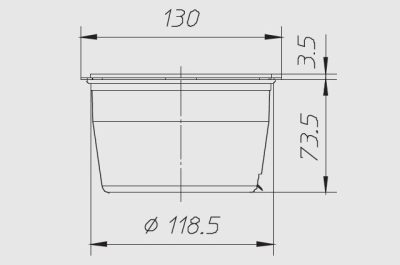

HM130 Dimensions

  • Outer diameter: 130 mm
  • Depth under flange: 73.5 mm
  • Flange thickness: 3.5 mm
  • Panel hole: 123 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 144
  • Weight with single packaging: 0.80 Kg

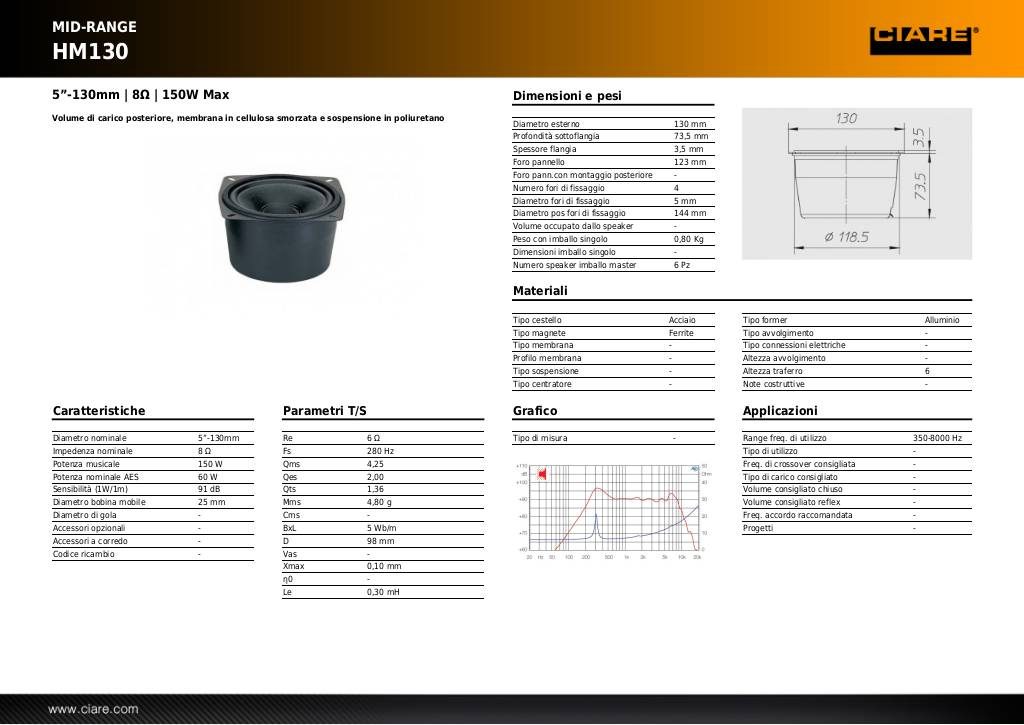

Scheda tecnica

20131031112419-hm130.pdf

1 Ciare HM130 8 Ohm speaker
€ 38,00 Price incl. VAT
