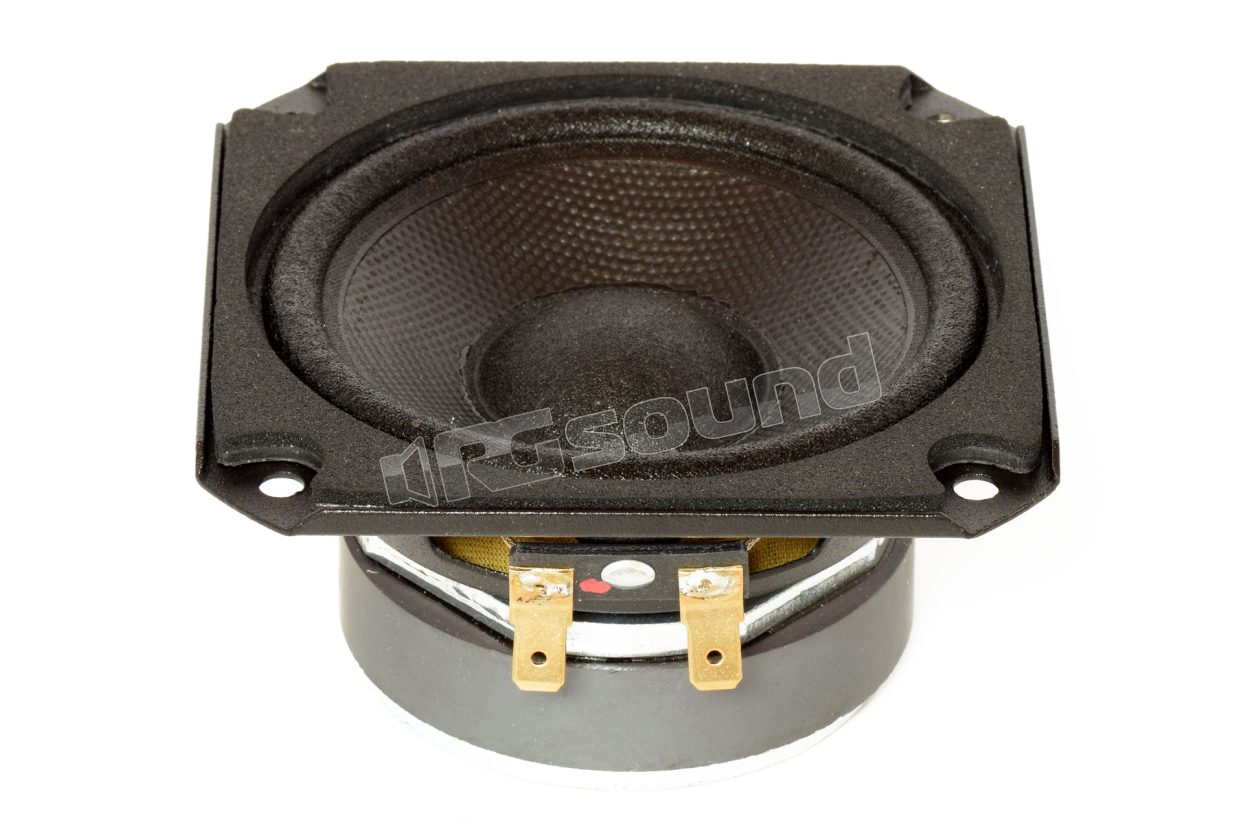

HM100 100mm midrange

Ciare
Your price:
€ 31,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
MAX Power
150 Watt
RMS Power
60 Watt
Sensitivity
88 dB
Impedance
8 Ohm
Weight
0,7 Kg
Installation Depth
49 mm
Voice Coil Diameter
25 mm

Ciare HM100 100mm midrange with damped cellulose membrane, fabric suspension. Ciare is a company constantly in line with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage autonomously all phases of product realization allow the company to achieve the highest quality standards in the realization of every component.

HM100 Features

  • Max power: 150W
  • Nominal power: 60W
  • Nominal impedance: 8Ω
  • Diameter: 100mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 88 dB

HM100 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Treated fabric
  • Former type: Aluminum
  • Airgap height: 5 mm

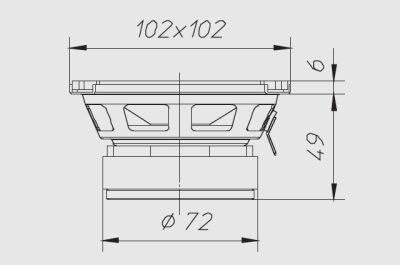

HM100 Dimensions

  • Outer diameter: 102 x 102 mm
  • Depth below flange: 49 mm
  • Flange thickness: 6 mm
  • Panel hole: 91 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole pos. diameter: 116
  • Weight with single packaging: 0.69 Kg

Recommended load type: Sealed enclosure - Recommended sealed volume: 2 dm3

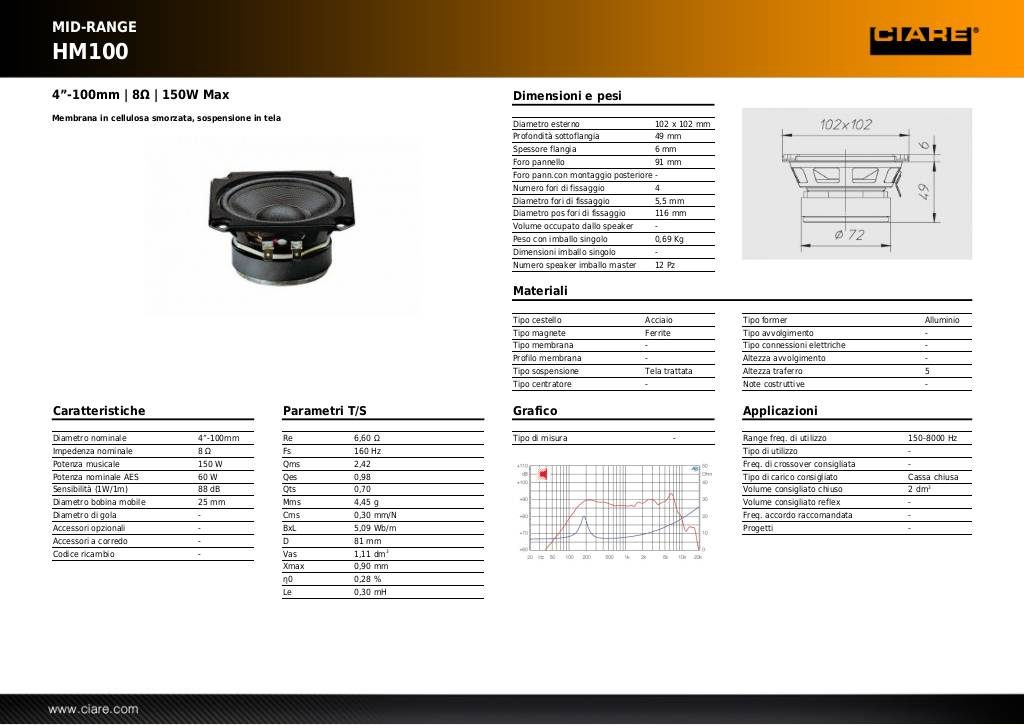

Scheda tecnica

20131031110343-hm100.pdf

1 Ciare HM100 8 Ohm Speaker
€ 31,00 Price incl. VAT
