HM087 87mm midrange

Ciare
Your price:
€ 21,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
87 mm
MAX Power
90 Watt
RMS Power
30 Watt
Sensitivity
89 dB
Impedance
8 Ohm
Weight
0,4 Kg
Installation Depth
37 mm
Voice Coil Diameter
20 mm

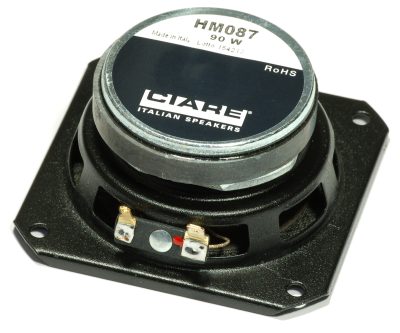

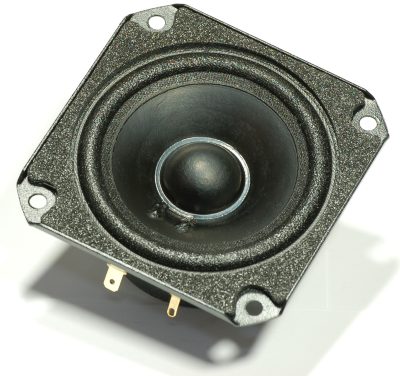

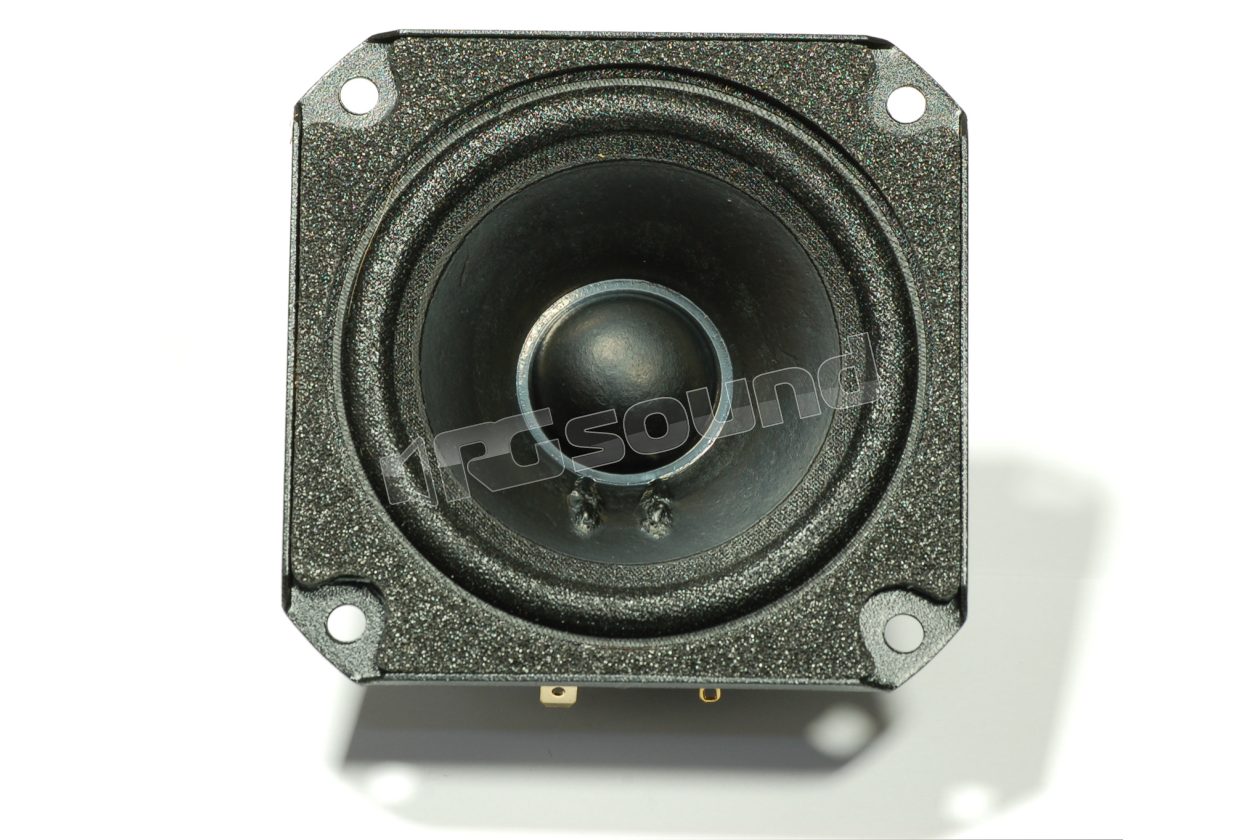

Ciare HM087 87mm midrange with damped cellulose membrane, cloth suspension.
Ciare is a company constantly keeping pace with technological innovations and under the continuous drive of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization allow the company to achieve the highest quality standards in the realization of every component.

HM087 Characteristics

  • Max power: 90W
  • Nominal power: 30W
  • Nominal impedance: 8Ω
  • Diameter: 87mm
  • Voice coil diameter: 20mm
  • Sensitivity 1W/1m: 89 dB

HM087 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Treated cloth
  • Former type: Aluminum
  • Air gap height: 4 mm

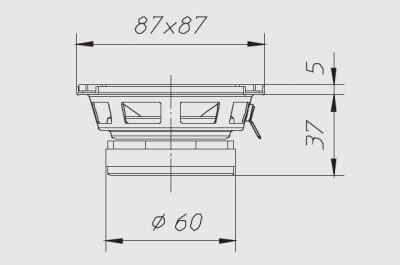

HM087 Dimensions

  • Outer diameter: 87 x 87 mm
  • Depth under flange: 37 mm
  • Flange thickness: 5 mm
  • Panel hole: 77 mm
  • Number of mounting holes: 4
  • Mounting holes diameter: 5 mm
  • Mounting holes diameter position: 100
  • Weight with single package: 0.37 Kg

Recommended load type:Closed enclosure - Recommended closed volume: 3 dm3

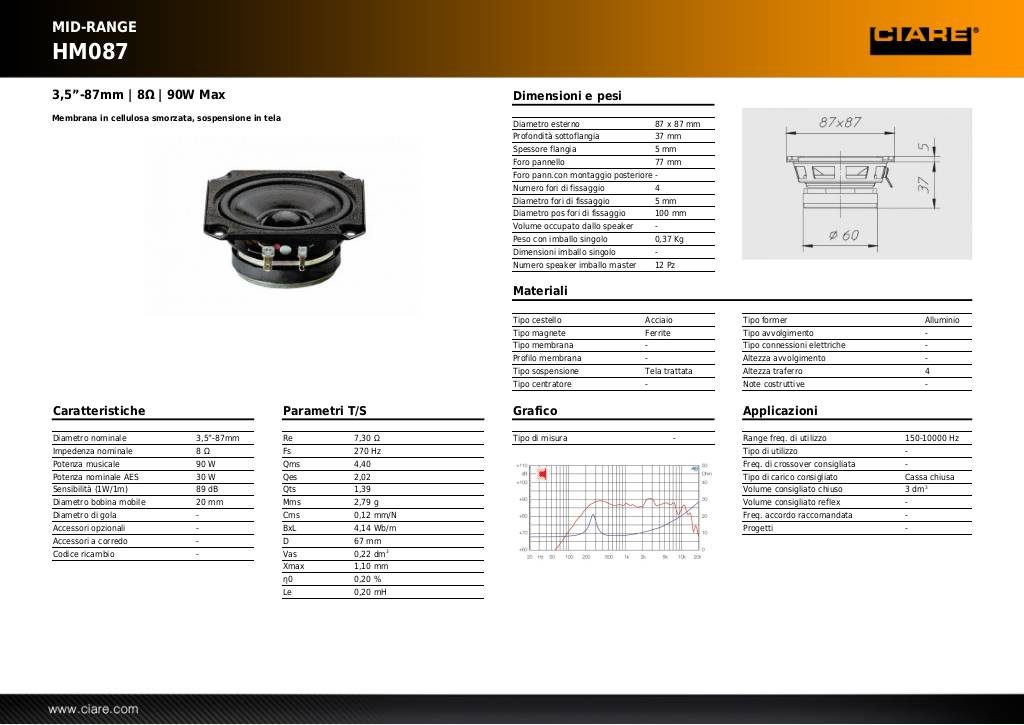

Scheda tecnica

20131031105731-hm087.pdf
