GZCT 0500X

Ground Zero
Your price:
€ 75,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Super Tweeter
Dome Size
25 mm
MAX Power
100 Watt
RMS Power
30 Watt
Frequency Response
4 - 25.000 Hertz
Sensitivity
102 dB
Impedance
4 Ohm
Outer Diameter
58 mm
Installation Depth
43 mm
Tweeter Material
Alluminio e Neodimio

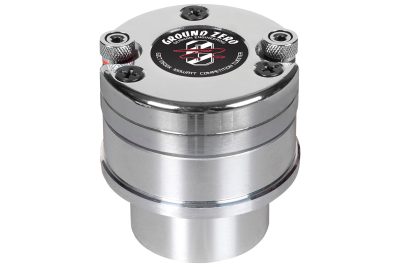

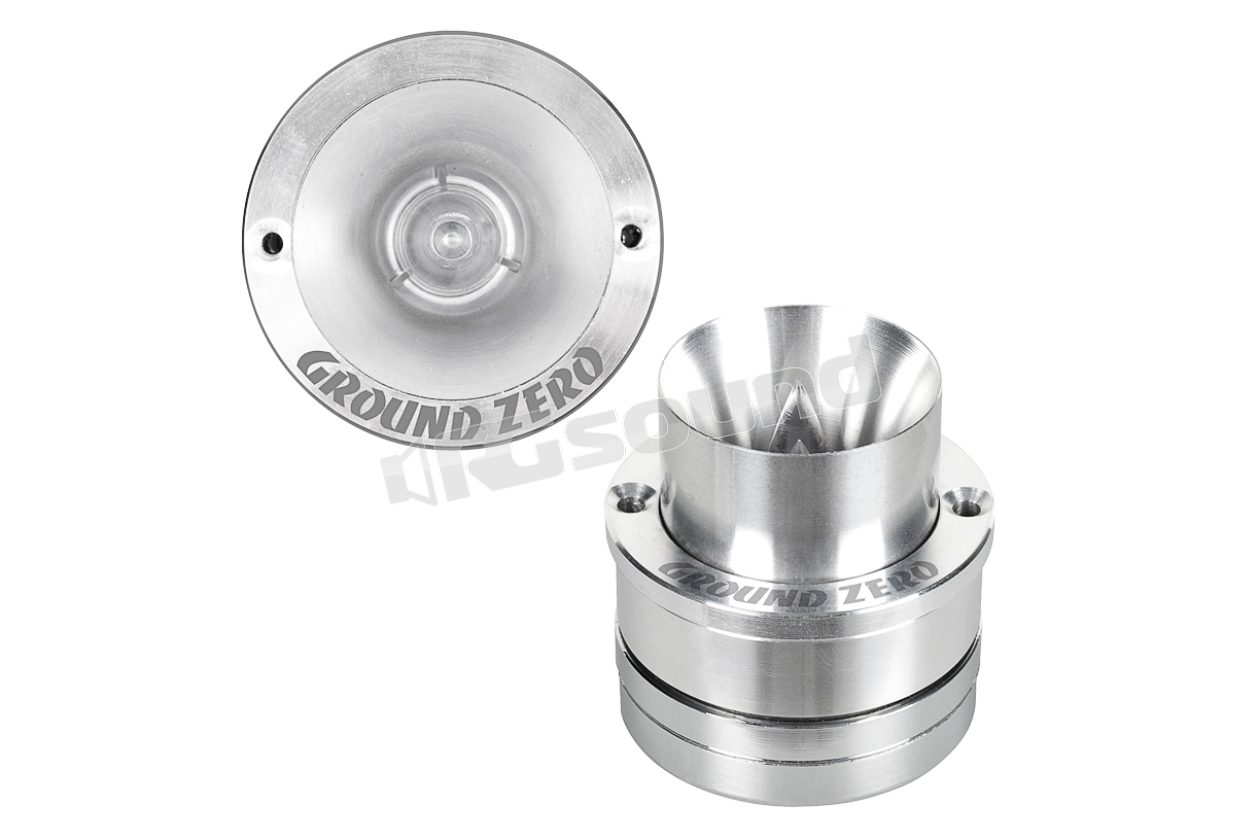

GZCT 0500X neodymium horn tweeter, 30W RMS power

- Compression tweeter
- Aluminium dome
- Cast baffle
- Plastic bullet
- 1" Copper-clad aluminium flat wire voice coil

GZCT 0500X compression tweeter specifications

Diameter of tweeter 58 mm / 2.28"
Mounting diameter of tweeter 43 mm / 1.69"
Mounting depth of tweeter 43 mm incl. Terminals / 1.69" incl. terminals
Voice coil of tweeter 25 mm / 1" CCAR
Cone of tweeter Aluminium
Housing of tweeter Aluminium
Magnet of tweeter Neodym
Power handling WRMS 30 W
Power handling W peak 100 W
Impedance 4 Ohm
SPL 102 dB
Frequency response 4 - 25 KHz

Scheda tecnica

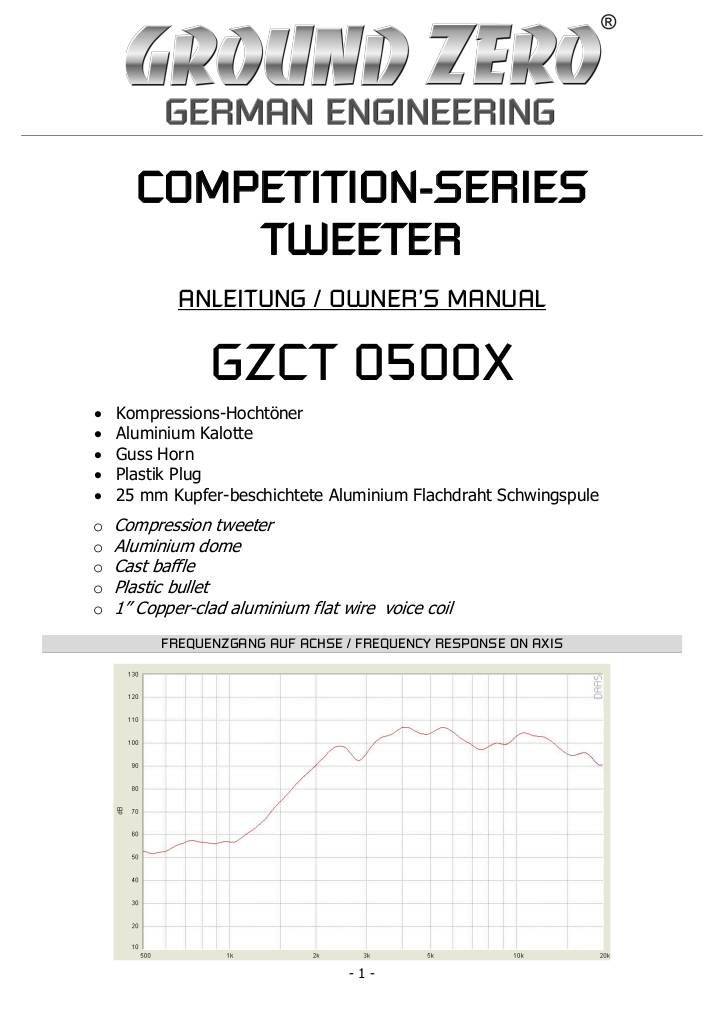

20150720161910-gzct-0500x-om-final.pdf
€ 75,00 Price incl. VAT
