FXI12.50W

Ciare
Your price:
€ 112,30
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
450 Watt
RMS Power
220 Watt
Frequency Response
50 - 4000 Hertz
Sensitivity
97.5 dB
Impedance
8 Ohm
Installation Depth
117 mm
Voice Coil Diameter
50 mm

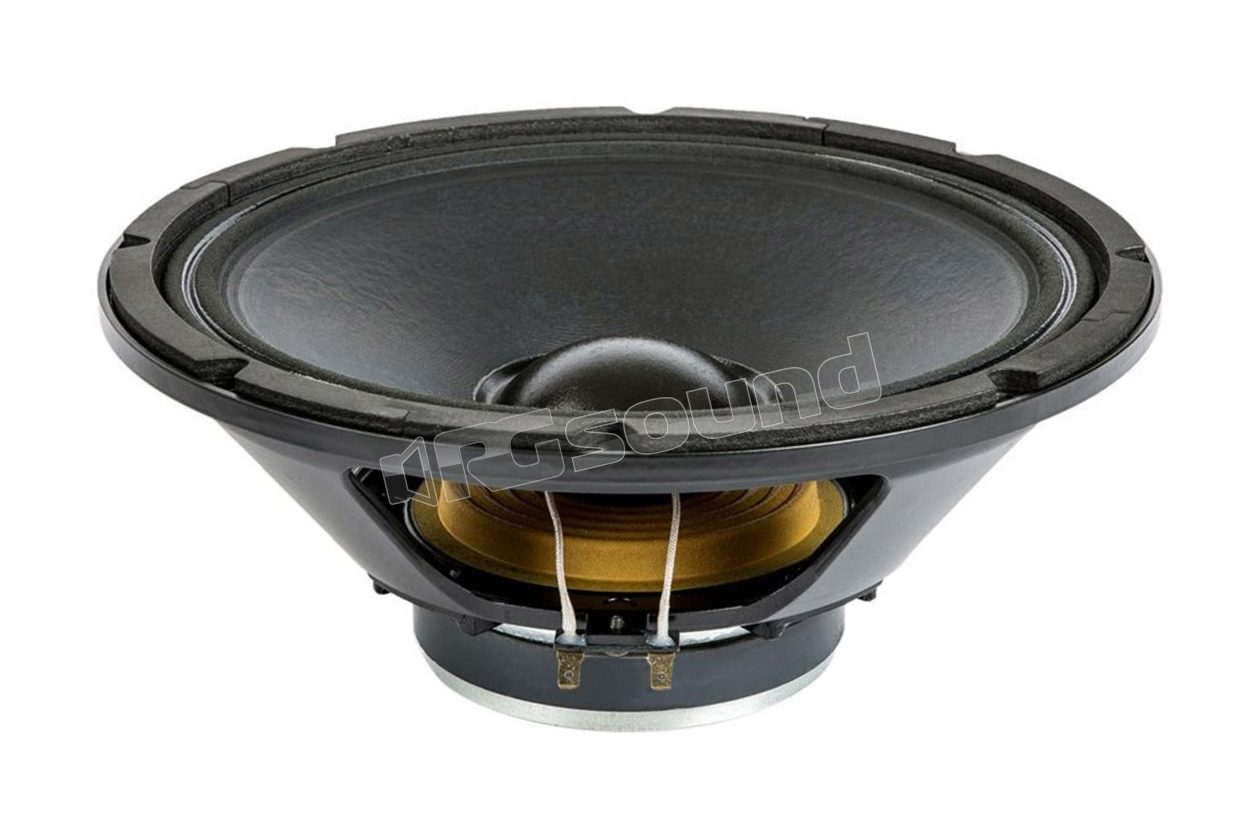

Ciare FXI12.50W is a professional woofer with a nominal diameter of 12″ (320 mm) equipped with a 134 mm ferrite magnet and a die-cast aluminum basket. The FXI12.50W was born for the professional market, finds application in high-level multiway systems, considering its good linearity up to about 2000 Hertz. It can indeed be used easily in multiway systems, loaded in a reflex box of about 60 liters and tuned around 50 Hz.

Maximum power (W) 450
Nominal power AES (W) 220
Nominal impedance (Ohm) 8
Sensitivity 1W / 1m (dB) 97.5

Ciare FXI12.50W main features

This 320 mm mounts a voice coil of 50 mm diameter and 8 Ω impedance, wound with aluminum wire on aluminum support. The voice coil of the Ciare FXI12.50W is able to dissipate a maximum power of 220 WAES. Furthermore, the moving group of this woofer provides for the use of a cellulose fiber membrane treated, coupled to suspensions and spider both in Nomex cloth. The frequency range of use declared by the manufacturer goes from 50 to 4000 Hertz, with an average nominal sensitivity of 97.5 dBSPL 2.83V/1m. Finally, the cone membrane is treated and protected, to allow correct use of the woofer outdoors.

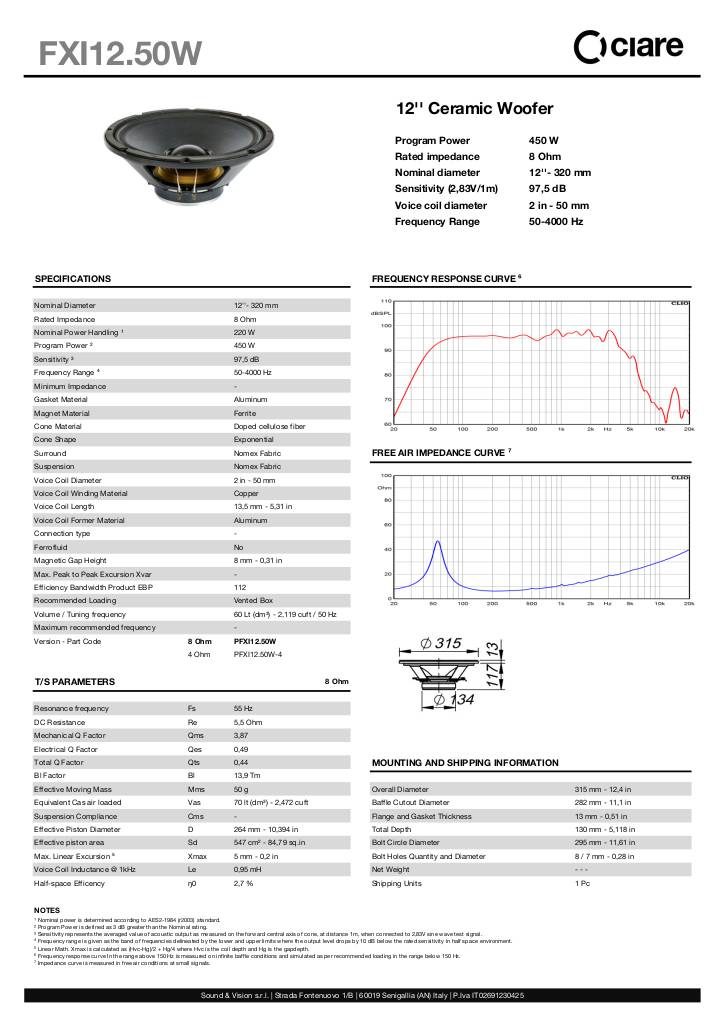

Scheda tecnica

n-20230313100132-pfxi12-50w.pdf

Ciare FXI12.50W technical specifications

Woofer

Power (WAES) 220

Nominal impedance (Ω) 8

Sensitivity (dBSPL2.83V/1m) 97.5

Diameter (mm/in) 320 / 12

Voice coil diameter (mm) 50

Weight (Kg) 3.70

Die-cast aluminum basket

Aluminum voice coil support

Treated membrane

Original replacement RPFXI12.50W

€ 112,30 Price incl. VAT
