FXC10.50W

Ciare
Your price:
€ 81,70
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
450 Watt
RMS Power
220 Watt
Sensitivity
94,5 dB
Impedance
8 Ohm
Installation Depth
105 mm
Voice Coil Diameter
50 mm

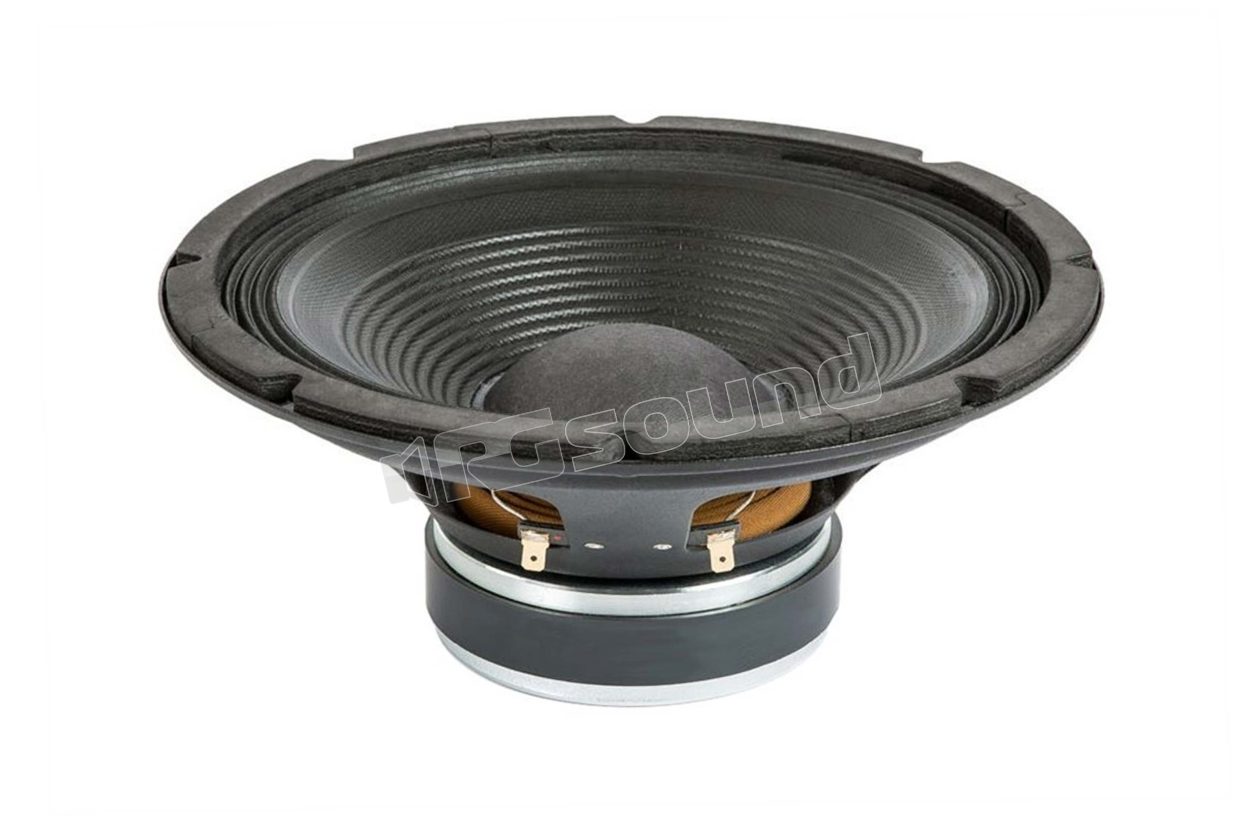

Ciare FXC10.50W woofer 250 mm with 8 Ohm impedance, with cone protected against weather for outdoor use and designed for compact two-way systems. Sensitivity 96 dB SPL, 50 mm (2") aluminum voice coil.

Steel basket

Ferrite magnet

Treated paper membrane

Canvas suspension

Cotton dust cap

Aluminum former

Aluminum voice coil

Connection type: Faston

Linear membrane profile

Music power (W) 450

Rated power AES (W) 220

Nominal diameter (''/mm) 10 in (250 mm)

Nominal impedance (Ohm) 8

Voice coil (mm) 50

Sensitivity 1W/1m (dB) 94.5

Ciare FXC10.50W technical specifications

Re 5.8 ohm

Fs 52 Hz

Qms 4.2

Qes 0.5

Qts 0.45

Mms 29.5 g

D 22 mm

Vas 65 l

BxL 10.5 Tm

Linear Mathematical Xmax 4.5 mm

Le (1kHz) 1.6 mH

Applications

Type of use: two-way

Recommended load type: closed box

Recommended reflex volume 35 l

Frequency range of use 60 - 2000 Hz

Dimensions and weights

External diameter 265 mm

Depth under flange 105 mm

Flange thickness 9 mm

Panel hole 238 mm

Number of mounting holes 8

Mounting hole diameter (mm) 4.5 mm

Mounting hole position diameter 253 mm

€ 81,70 Price incl. VAT
