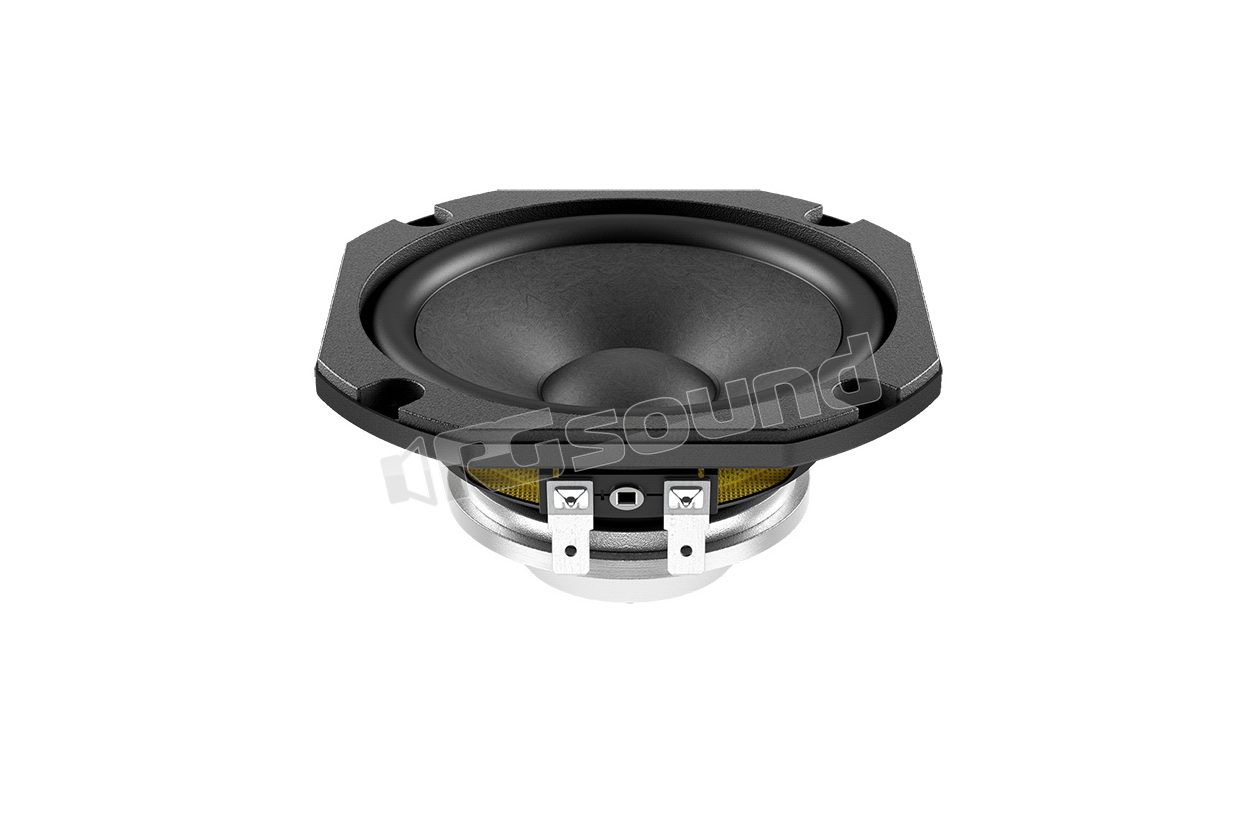

FSN041.00 4"/100mm full-range speaker

LaVoce
Your price:
€ 47,70
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
100 mm
Frequency Response
110-20000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,39 Kg
Voice Coil Diameter
25 mm

LaVoce FSN041.00 4"/100mm Fullrange

LaVoce code 70R06042

FSN041.00 Features
  • 1 inch copper voice coil
  • Sensitivity 91 db/spl
  • Program power handling 80 watt
  • Motor and suspensions optimized for FEM
  • Copper ring for extended frequency response
  • Steel basket design without resonances and for heavy duty use
  • Rubber surround material

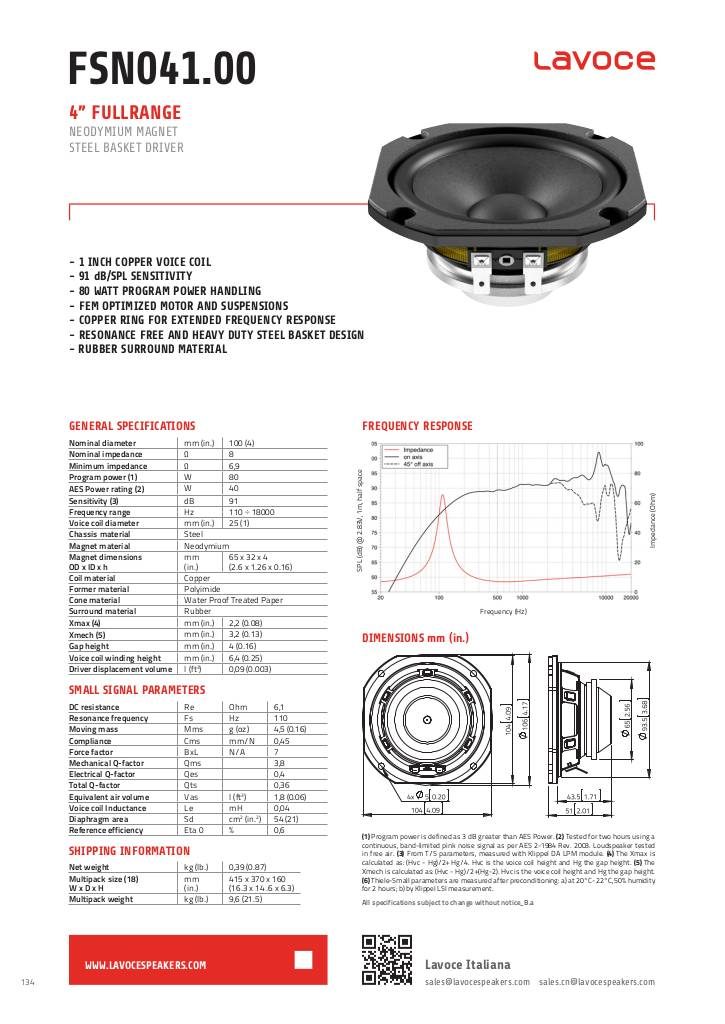

scheda tecnica

1549117562-fsn04100-1.pdf

LaVoce FSN041.00 Technical Specifications

  • Nominal diameter mm (in) 100 (4)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.9
  • Program power W 80
  • AES power W 40
  • Sensitivity dB 91
  • Frequency range Hz 110 ÷ 20000
  • Voice coil diameter mm (in) 25 (1)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 65 x 32 x 4 (2.6 x 1.26 x 0.16)
  • Coil material Copper
  • Structure material Polyimide
  • Cone material Waterproof treated paper
  • Surround material Rubber
  • Xmax mm (in) 2.2 (0.08)
  • Xmech mm (in) 3.2 (0.13)
  • Gap height mm (in) 4 (0.16)
  • Voice coil winding height mm (in) 6.4 (0.25)
  • Driver displacement volume l (ft³) 0.09 (0.003)
  • DC resistance Ohm 6.1
  • Resonance frequency Hz 110
  • Moving mass g (oz) 4.5 (0.16)
  • Compliance mm/N 0.45
  • Force factor N/A 7
  • Mechanical Q factor 3.8
  • Electrical Q factor 0.4
  • Total Q factor 0.36
  • Equivalent air volume l (ft3) 1.8 (0.06)
  • Voice coil inductance mH 0.04
  • Diaphragm area cm2 (in.2) 54 (21)
  • Reference efficiency 0.6
  • Net weight kg (lb) 0.39 (0.87)
  • Multipack dimensions L x W x H 415 x 370 x 160 (16.3 x 14.6 x 6.3)
  • Multipack weight kg (lb) 9.6 (21.5)
