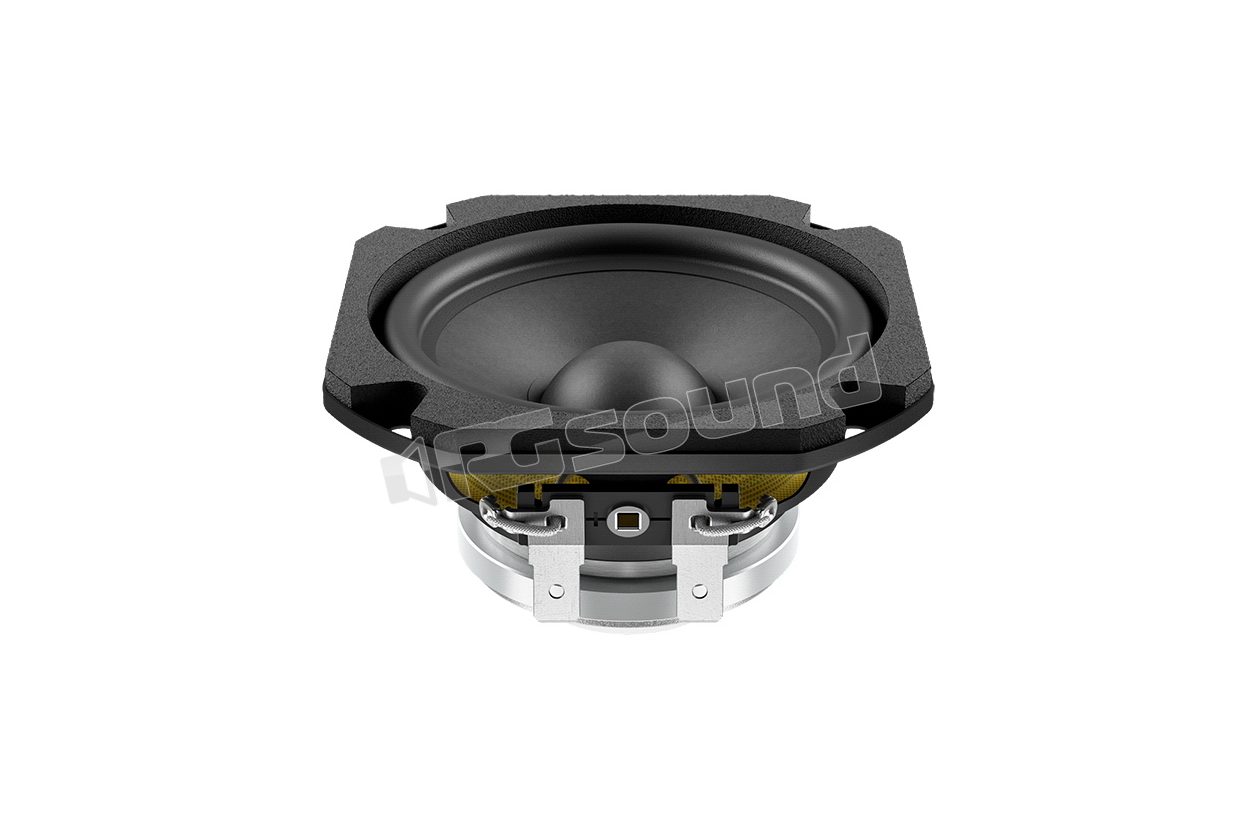

FSN030.72 3"/78mm Full-range

LaVoce
Your price:
€ 36,20
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
Other sizes
Frequency Response
120-21000 Hertz
Sensitivity
91 dB
Impedance
8 Ohm
Weight
0,19 Kg
Voice Coil Diameter
20 mm

LaVoce FSN030.72 Fullrange 3"/78mm Fullrange

LaVoce code 70R06038

FSN030.72 Features

  • 0.75 inch CCAW voice coil
  • Sensitivity 91 db/spl
  • Program power handling 60 watt
  • Motor and suspensions optimized for Fem
  • Steel basket design with no resonances and for heavy duty applications
  • Rubber surround material
  • Extended frequency response

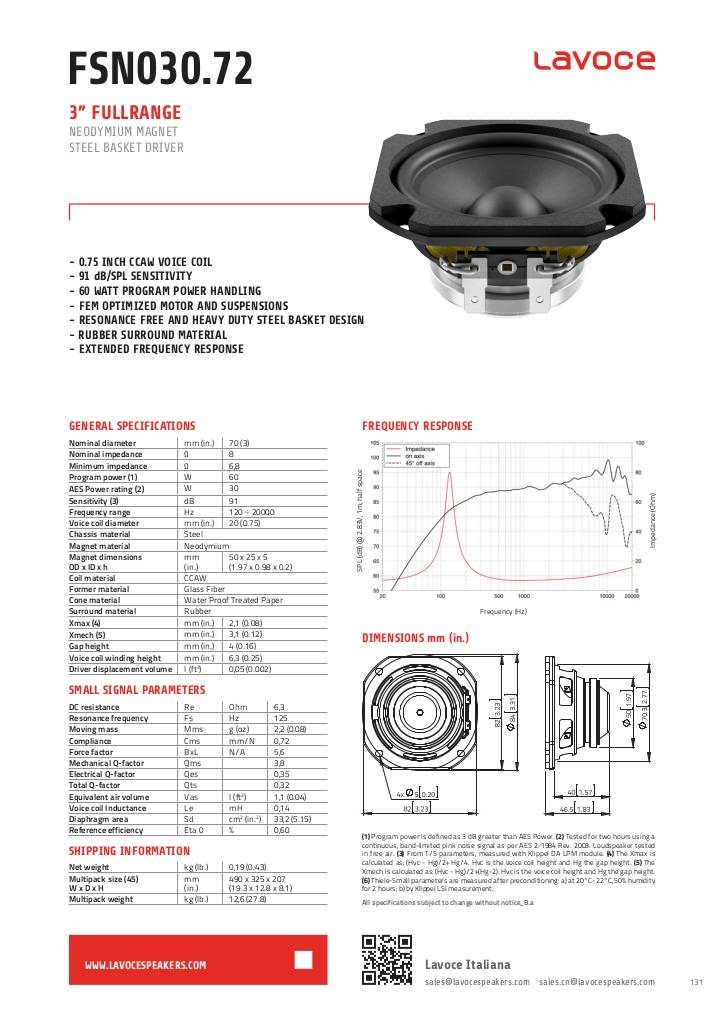

scheda tecnica

1549117732-fsn03072-1.pdf

LaVoce FSN030.72 Technical Specifications

  • Nominal diameter mm (in) 70 (3)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power W 60
  • AES power W 30
  • Sensitivity dB 91
  • Frequency range Hz 120 ÷ 21000
  • Voice coil diameter mm (in) 20 (0.75)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet size OD x ID x h mm (in) 50 x 25 x 5 (1.97 x 0.98 x 0.2)
  • Coil material CCAW
  • Former material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Rubber
  • Xmax mm (in) 2.1 (0.08)
  • Xmech mm (in) 3.1 (0.12)
  • Gap height mm (in) 4 (0.16)
  • Voice coil winding height mm (in) 6.3 (0.25)
  • Driver displacement volume l (ft³) 0.05 (0.002)
  • DC resistance Ohm 6.3
  • Resonance frequency Hz 125
  • Moving mass g (oz) 2.2 (0.08)
  • Compliance mm/N 0.72
  • Force factor N/A 5.6
  • Mechanical Q factor 3.8
  • Electrical Q factor 0.35
  • Total Q factor 0.32
  • Equivalent air volume l (ft3) 1.1 (0.04)
  • Voice coil inductance mH 0.14
  • Diaphragm area cm2 (in.2) 33.2 (5.15)
  • Reference efficiency 0.60%
  • Net weight kg (lb) 0.19 (0.43)
  • Multipack dimensions L x W x H 490 x 325 x 207 (19.3 x 12.8 x 8.1)
  • Multipack weight kg (lb) 12.6 (27.8)
