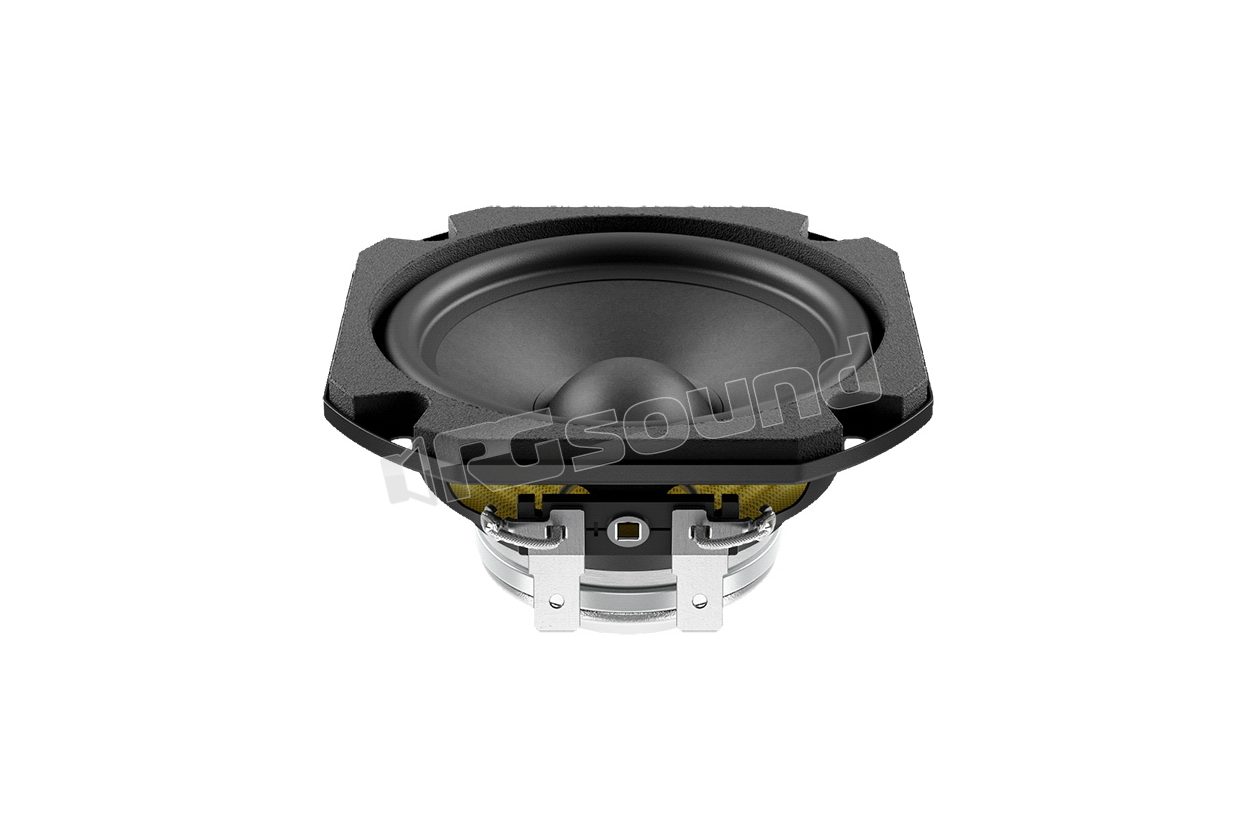

FSN030.71 3"/78mm Full-Range

LaVoce
Your price:
€ 27,70
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
Other sizes
Frequency Response
120-21000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
0,19 Kg
Voice Coil Diameter
20 mm

LaVoce FSN030.71 3"/78mm Fullrange


LaVoce code 70R06034
FSN030.71 Features
  • 0.75 inch CCAW voice coil
  • Sensitivity 89 db/spl
  • Program power handling 60 watts
  • Motor and suspensions optimized for FEM
  • Copper ring for extended frequency response
  • Steel basket design with no resonances and for heavy-duty applications
  • Rubber edge material

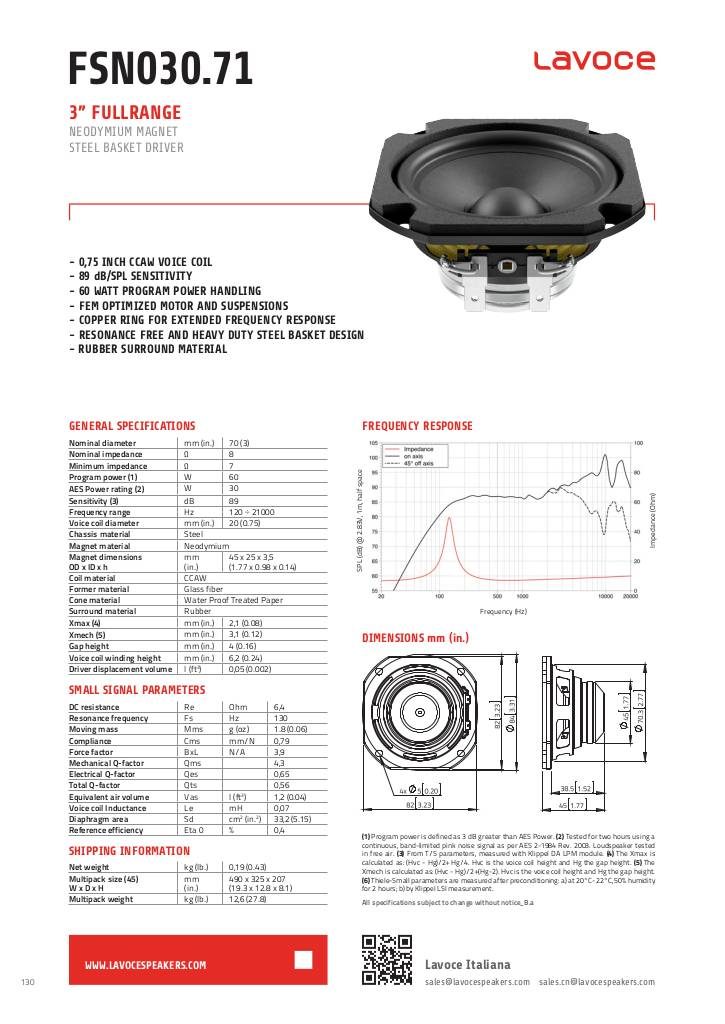

scheda tecnica

1549117621-fsn03071-1.pdf

LaVoce FSN030.71 Technical Specifications

  • Nominal diameter mm (in) 70 (3)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7
  • Program power W 60
  • AES power W 30
  • Sensitivity dB 89
  • Frequency range Hz 120 ÷ 21000
  • Voice coil diameter mm (in) 20 (0.75)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 45 x 25 x 3.5 (1.77 x 0.98 x 0.14)
  • Coil material CCAW Coil former material
  • Fiberglass Cone material
  • Water-resistant treated paper
  • Surround material Rubber
  • Xmax mm (in) 2.1 (0.08)
  • Xmech mm (in) 3.1 (0.12)
  • Gap height mm (in) 4 (0.16)
  • Voice coil winding height mm (in) 6.2 (0.24)
  • Driver displacement volume l (ft³) 0.05 (0.002)
  • DC resistance Ohm 6.4
  • Resonance frequency Hz 130
  • Moving mass g (oz) 1.8 (0.06)
  • Compliance mm/N 0.79
  • Force factor N/A 3.9
  • Mechanical Q factor 4.3
  • Electrical Q factor 0.65
  • Total Q factor 0.56
  • Equivalent air volume l (ft3) 1.2 (0.04)
  • Voice coil inductance mH 0.07
  • Diaphragm area cm2 (in.2) 33.2 (5.15)
  • Reference efficiency 0.4
  • Net weight kg (lb) 0.19 (0.43)
  • Multipack dimensions L x W x H 490 x 325 x 207 (19.3 x 12.8 x 8.1)
  • Multipack weight kg (lb) 12.6 (27.8)
€ 27,70 Price incl. VAT
