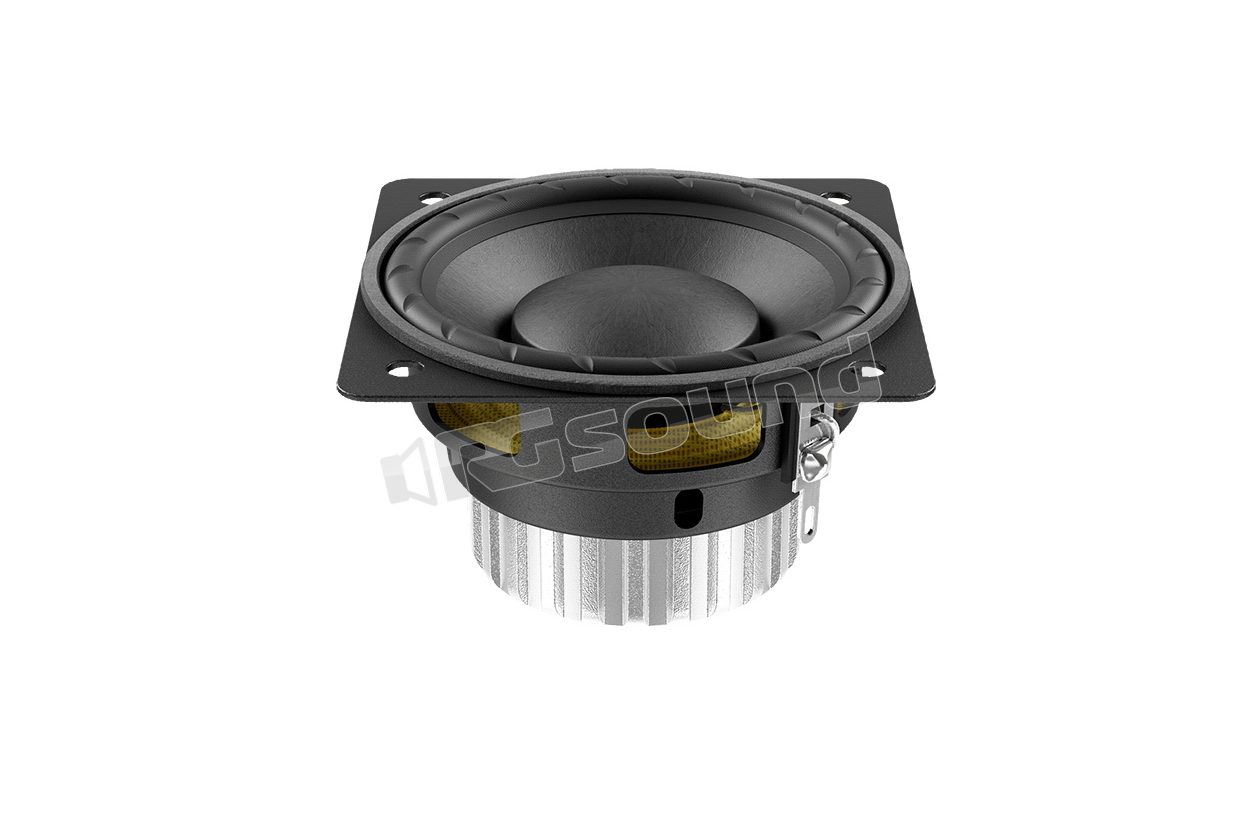

FSN021.00 2"/52mm full-range

LaVoce
Your price:
€ 20,10
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
50 mm
Frequency Response
200-20000 Hertz
Sensitivity
88 dB
Impedance
8 Ohm
Weight
0,12 Kg
Voice Coil Diameter
25 mm

LaVoce FSN021.00 Fullrange 2"/52mm

LaVoce code 70R06025
FSN021.00 Features
  • 1 inch CCAW voice coil
  • Sensitivity 88 db/spl
  • Program power handling 40 watt
  • Motor and suspensions optimized for FEM
  • Copper ring for extended frequency response
  • Steel basket design without resonances and for heavy-duty use
  • Flat basket flange for easy installation

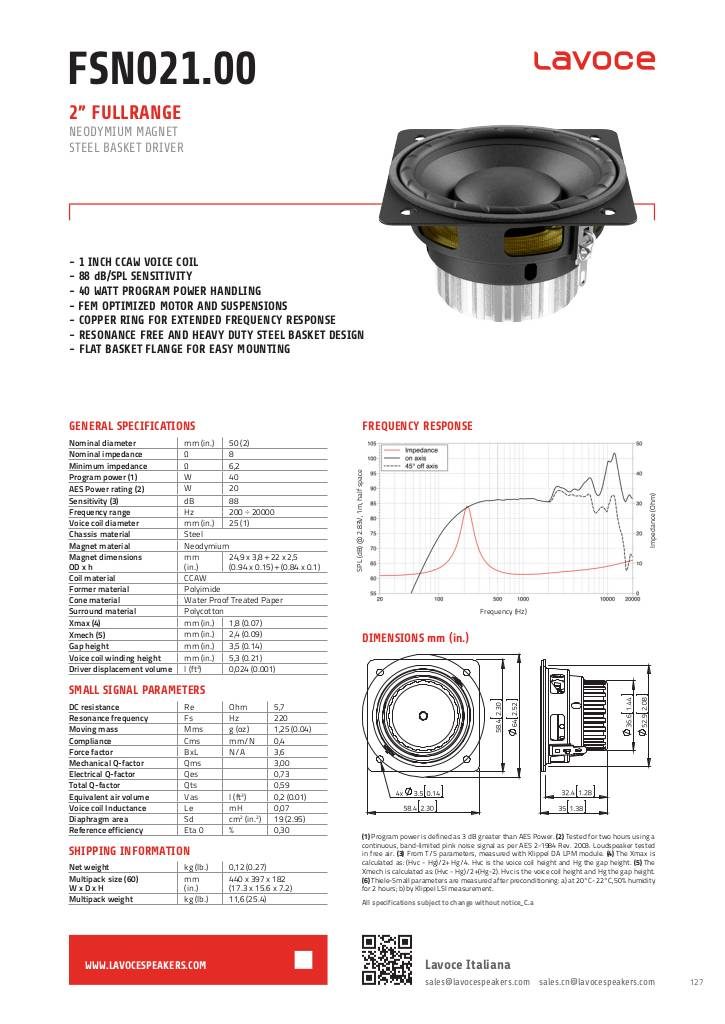

scheda tecnica

1549117086-fsn02100-1.pdf

LaVoce FSN021.00 Technical Specifications

  • Nominal diameter mm (in) 50 (2)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.2
  • Program power W 40
  • AES power W 20
  • Sensitivity dB 88
  • Frequency range Hz 200 ÷ 20000
  • Voice coil diameter mm (in) 25 (1)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 24.9 x 3.8 + 22 x 2.5 (0.94 x 0.15) + (0.84 x 0.1)
  • Coil material CCAW
  • Shaping material Polyamide
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 1.8 (0.07)
  • Xmech mm (in) 2.4 (0.09)
  • Gap height mm (in) 3.5 (0.14)
  • Voice coil winding height mm (in) 5.3 (0.21)
  • Driver displacement volume l (ft³) 0.024 (0.001)
  • DC resistance Ohm 5.7
  • Resonance frequency Hz 220
  • Moving mass g (oz) 1.25 (0.04)
  • Compliance mm/N 0.4
  • Force factor N/A 3.6
  • Mechanical Q factor 3.0
  • Electrical Q factor 0.73
  • Total Q factor 0.59
  • Equivalent air volume l (ft3) 0.2 (0.01)
  • Voice coil inductance mH 0.07
  • Diaphragm area cm2 (in.2) 19 (2.95)
  • Reference efficiency 0.3%
  • Net weight kg (lb) 0.12 (0.27)
  • Multipack dimensions L x W x H 440 x 397 x 182 (17.3 x 15.6 x 7.2)
  • Multipack weight kg (lb) 11.6 (25.4)
