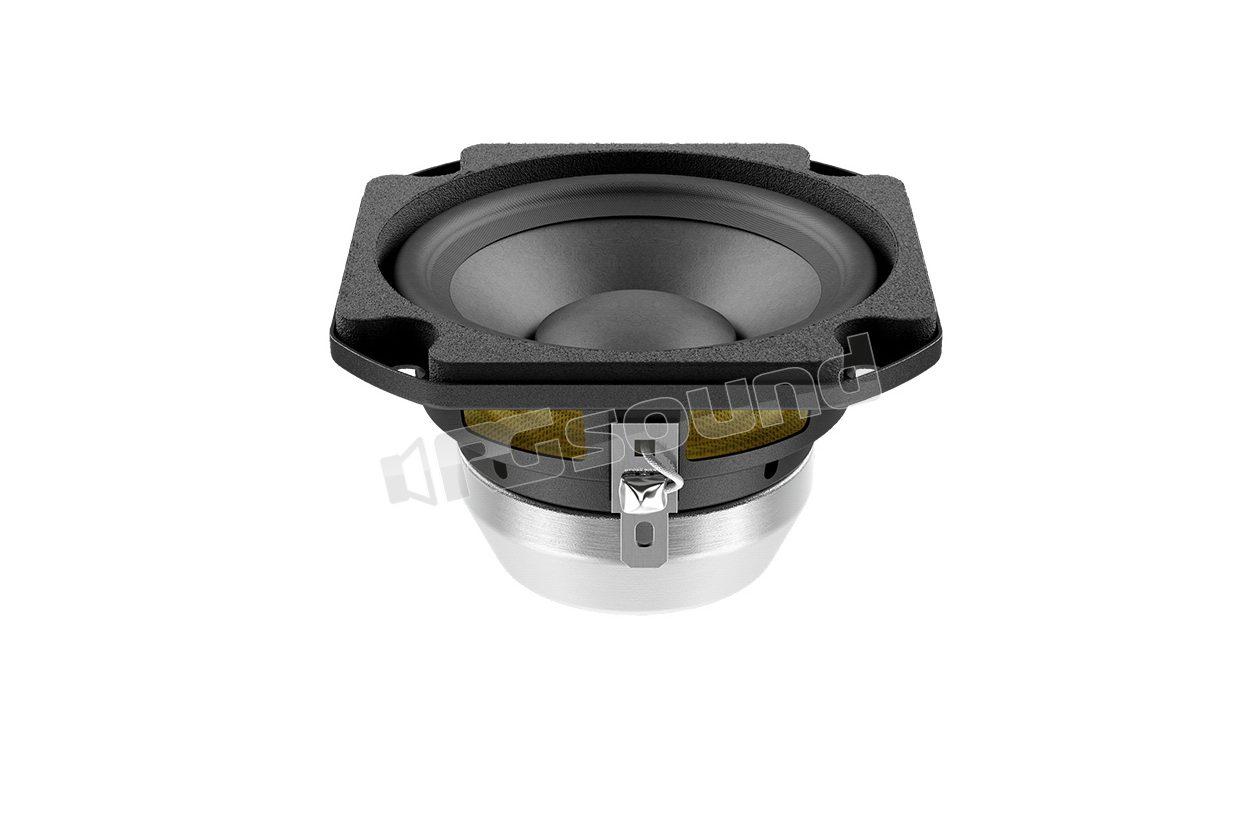

FSN020.72 2"/52mm full-range speaker

LaVoce
Your price:
€ 21,60
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
50 mm
Frequency Response
200-20000 Hertz
Sensitivity
85 dB
Impedance
8 Ohm
Weight
0,15 Kg
Voice Coil Diameter
20 mm

LaVoce FSN020.72 2"/52mm

LaVoce code 70R06023

FSN020.72 Features

  • CCAW voice coil 0.75 inch
  • Sensitivity 85 db/spl
  • Program power handling 30 watt
  • Motor and suspensions optimized for Fem
  • Copper ring for extended frequency response
  • Steel basket design without resonance and for heavy duty use
  • Rubber surround material

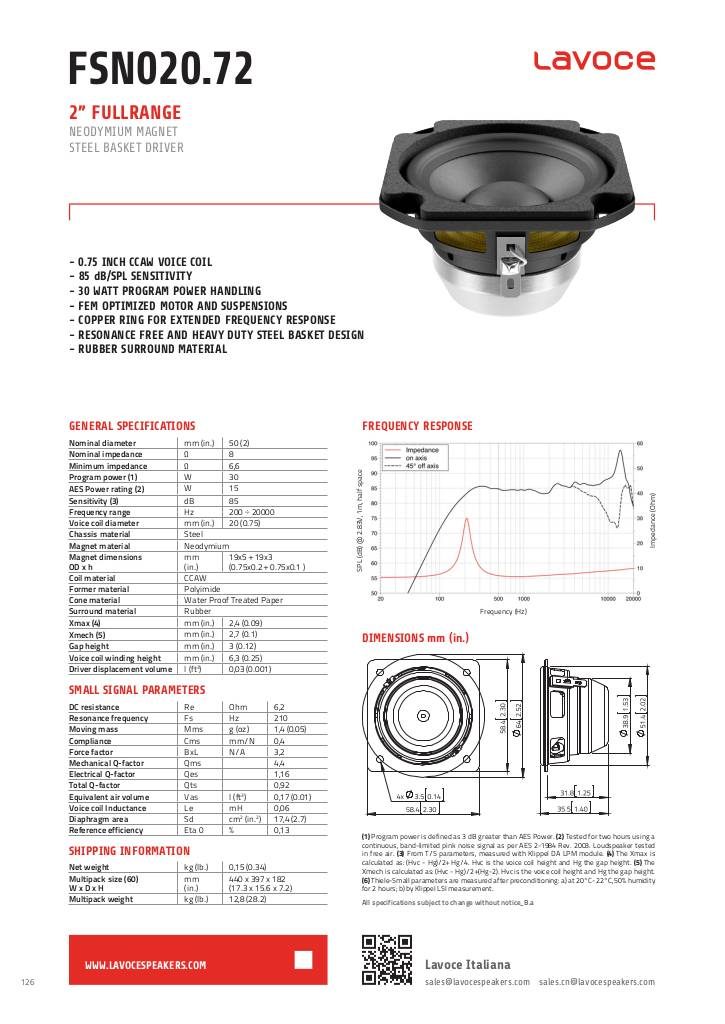

scheda tecnica

1549117079-fsn02072-1.pdf

LaVoce FSN020.72 Technical Specifications

  • Nominal diameter mm (in) 50 (2)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.6
  • Program power W 30
  • AES power W 15
  • Sensitivity dB 85
  • Frequency range Hz 200 ÷ 20000
  • Voice coil diameter mm (in) 20 (0.75)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 19 x 5 + 19 x 3 (0.75 x 0.2 + 0.75 x 0.1)
  • Voice coil material CCAW
  • Formwork material Polyimide
  • Cone material Water-resistant treated paper
  • Surround material Rubber
  • Xmax mm (in) 2.4 (0.09)
  • Xmech mm (in) 2.7 (0.1)
  • Gap height mm (in) 3 (0.12)
  • Voice coil winding height mm (in) 6.3 (0.25)
  • Driver displacement volume l (ft³) 0.03 (0.001)
  • DC resistance Ohm 6.2
  • Resonance frequency Hz 210
  • Moving mass g (oz) 1.4 (0.05)
  • Compliance mm/N 0.4
  • Force factor N/A 3.2
  • Mechanical Q factor 4.4
  • Electrical Q factor 1.16
  • Total Q factor 0.92
  • Equivalent air volume l (ft3) 0.17 (0.01)
  • Voice coil inductance mH 0.06
  • Diaphragm area cm2 (in.2) 17.4 (2.7)
  • Reference efficiency 0.13
  • Net weight kg (lb) 0.15 (0.34)
  • Multipack dimensions L x W x H 440 x 397 x 182 (17.3 x 15.6 x 7.2)
  • Multipack weight kg (lb) 12.8 (28.2)
