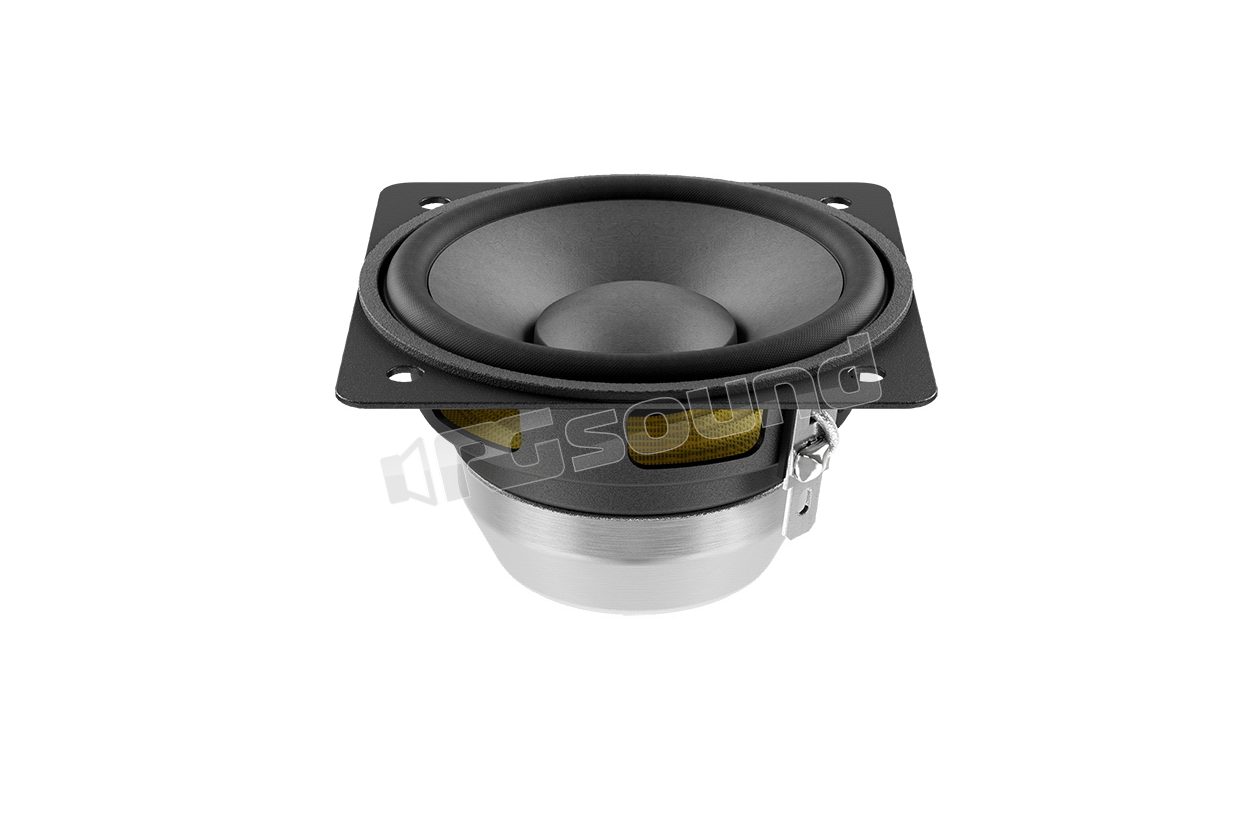

FSN020.71F 2"/52mm Full-range Speaker

LaVoce
Your price:
€ 20,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
50 mm
Frequency Response
200-20000 Hertz
Sensitivity
87 dB
Impedance
8 Ohm
Weight
0,15 Kg
Voice Coil Diameter
20 mm

LaVoce FSN020.71F 2"/52mm Fullrange


LaVoce code 70R06026

FSN020.71F Features

  • 0.75 inch CCAW voice coil
  • Sensitivity 87 db/spl
  • Program power handling 30 watt
  • Motor and suspensions optimized for Fem
  • Copper ring for extended frequency response
  • Steel basket design without resonances and for heavy duty applications
  • Flat basket flange for easy mounting

scheda tecnica

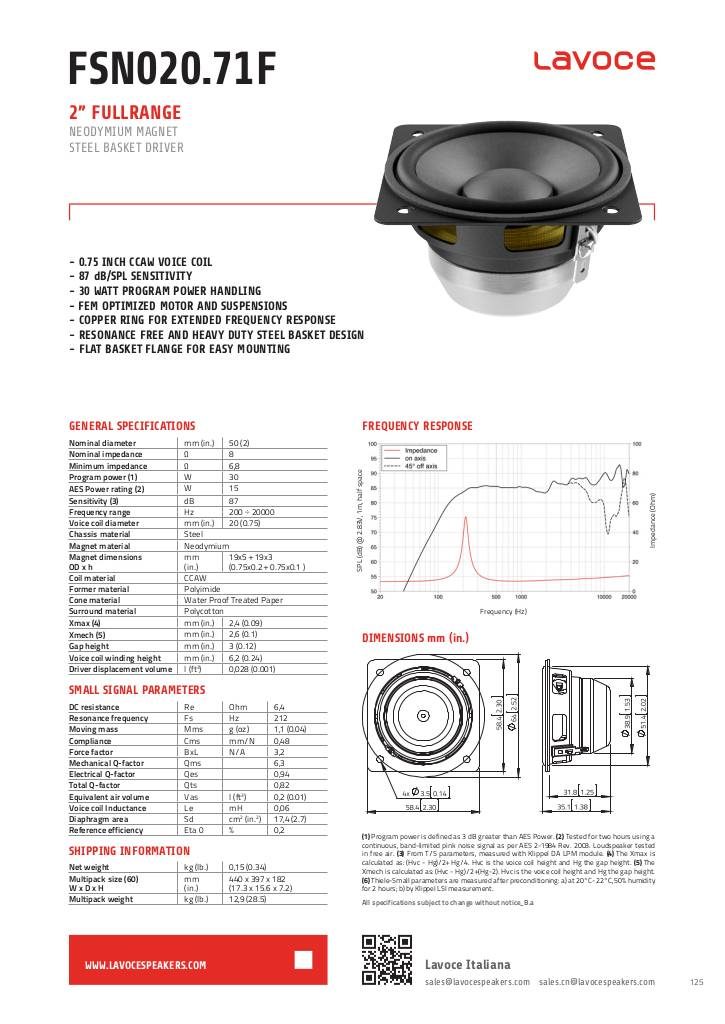

1549117738-fsn02071f-1.pdf

LaVoce FSN020.71F Technical Specifications

  • Nominal diameter mm (in) 50 (2)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power W 30
  • AES power W 15
  • Sensitivity dB 87
  • Frequency range Hz 200 ÷ 20000
  • Voice coil diameter mm (in) 20 (0.75)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 19 x 5 + 19 x 3 (0.75 x 0.2 + 0.75 x 0.1)
  • Coil material CCAW
  • Former material Polyimide
  • Cone material Water resistant coated paper
  • Surround material Polycotton
  • Xmax mm (in) 2.4 (0.09)
  • Xmech mm (in) 2.6 (0.1)
  • Gap height mm (in) 3 (0.12)
  • Voice coil winding height mm (in) 6.2 (0.24)
  • Driver displacement volume l (ft³) 0.028 (0.001)
  • DC resistance Ohm 6.4
  • Resonance frequency Hz 212
  • Moving mass g (oz) 1.1 (0.04)
  • Compliance mm/N 0.48
  • Force factor N/A 3.2
  • Mechanical Q factor 6.3
  • Electrical Q factor 0.94
  • Total Q factor 0.82
  • Equivalent air volume l (ft3) 0.2 (0.01)
  • Voice coil inductance mH 0.06
  • Diaphragm area cm2 (in.2) 17.4 (2.7)
  • Reference efficiency 0.2%
  • Net weight kg (lb) 0.15 (0.34)
  • Multipack dimensions L x W x H 440 x 397 x 182 (17.3 x 15.6 x 7.2)
  • Multipack weight kg (lb) 12.9 (28.5)
