FSF041.00 4"/100mm Full-Range

LaVoce
Your price:
€ 16,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
4x6''
Frequency Response
110-18000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
0,72 Kg
Voice Coil Diameter
25 mm

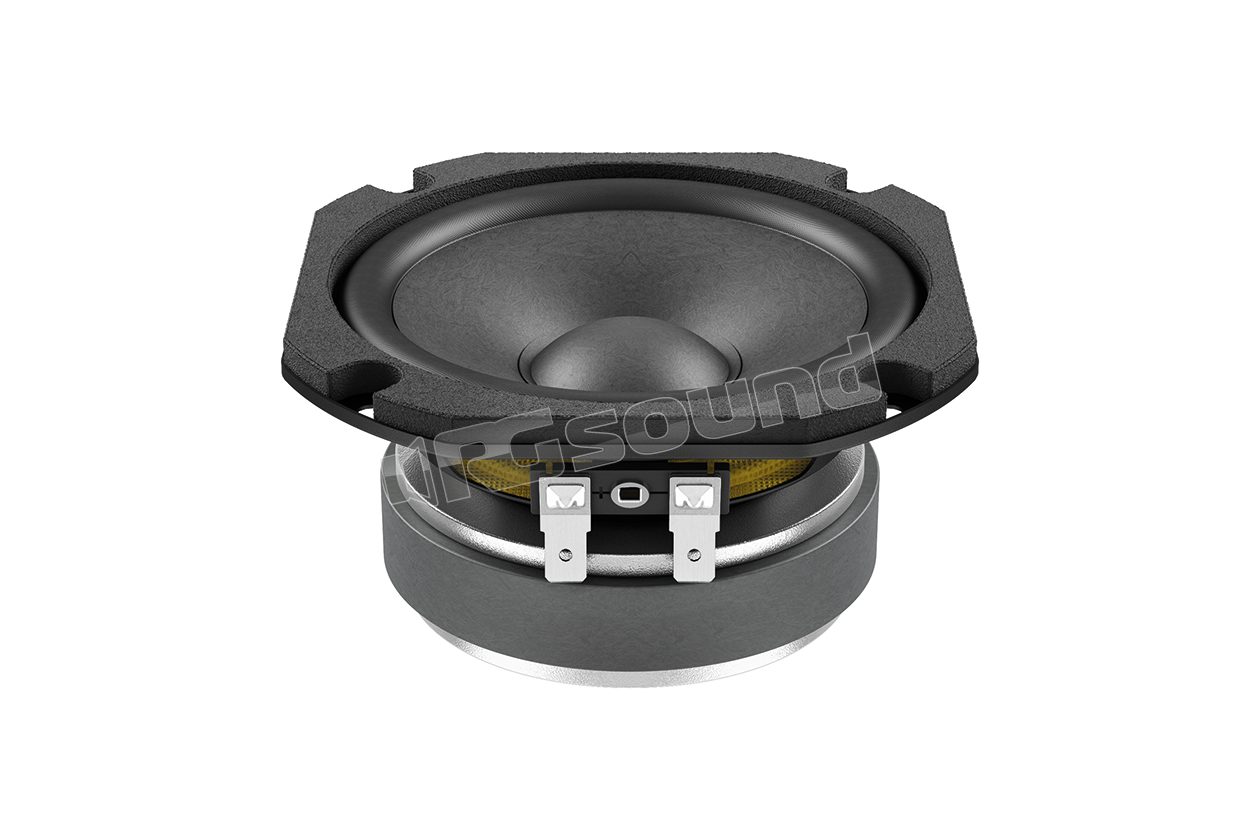

LaVoce FSF041.00 4"/100mm Fullrange

LaVoce code 70R06040

FSF041.00 Features

  • 1 inch Ccaw voice coil
  • Sensitivity 89 db/spl
  • Program power 80 watt
  • Motor and suspensions optimized for FEM
  • Copper ring for extended frequency response
  • Steel basket design without resonances and for heavy duty use
  • Rubber surround material

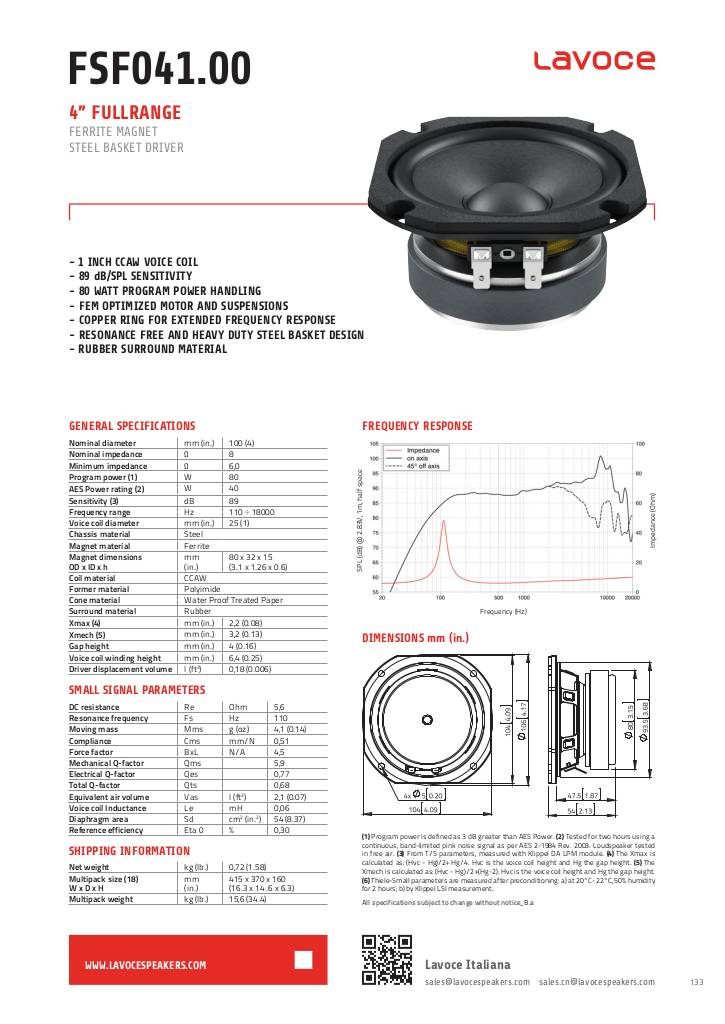

scheda tecnica

1549117454-fsf04100-1.pdf

LaVoce FSF041.0 Technical Specifications

  • Nominal diameter mm (in) 100 (4)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 80
  • AES power W 40
  • Sensitivity dB 89
  • Frequency range Hz 110 ÷ 18000
  • Voice coil diameter mm (in) 25 (1)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 80 x 32 x 15 (3.1 x 1.26 x 0.6)
  • Coil material CCAW
  • Surround material Polyamide
  • Cone material Water-resistant treated paper
  • Surround material Rubber
  • Xmax mm (in) 2.2 (0.08)
  • Xmech mm (in) 3.2 (0.13)
  • Gap height mm (in) 4 (0.16)
  • Voice coil winding height mm (in) 6.4 (0.25)
  • Driver displacement volume l (ft³) 0.18 (0.006)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 110
  • Mobile mass g (oz) 4.1 (0.14)
  • Compliance mm/N 0.51
  • Force factor N/A 4.5
  • Mechanical Q factor 5.9
  • Electrical Q factor 0.77
  • Total Q factor 0.68
  • Equivalent air volume l (ft3) 2.1 (0.07)
  • Voice coil inductance mH 0.06
  • Diaphragm area cm2 (in.2) 54 (8.37)
  • Reference efficiency 0.3%
  • Net weight kg (lb) 0.72 (1.58)
  • Multipack dimensions L x W x H 415 x 370 x 160 (16.3 x 14.6 x 6.3)
  • Multipack weight kg (lb) 15.6 (34.4)
