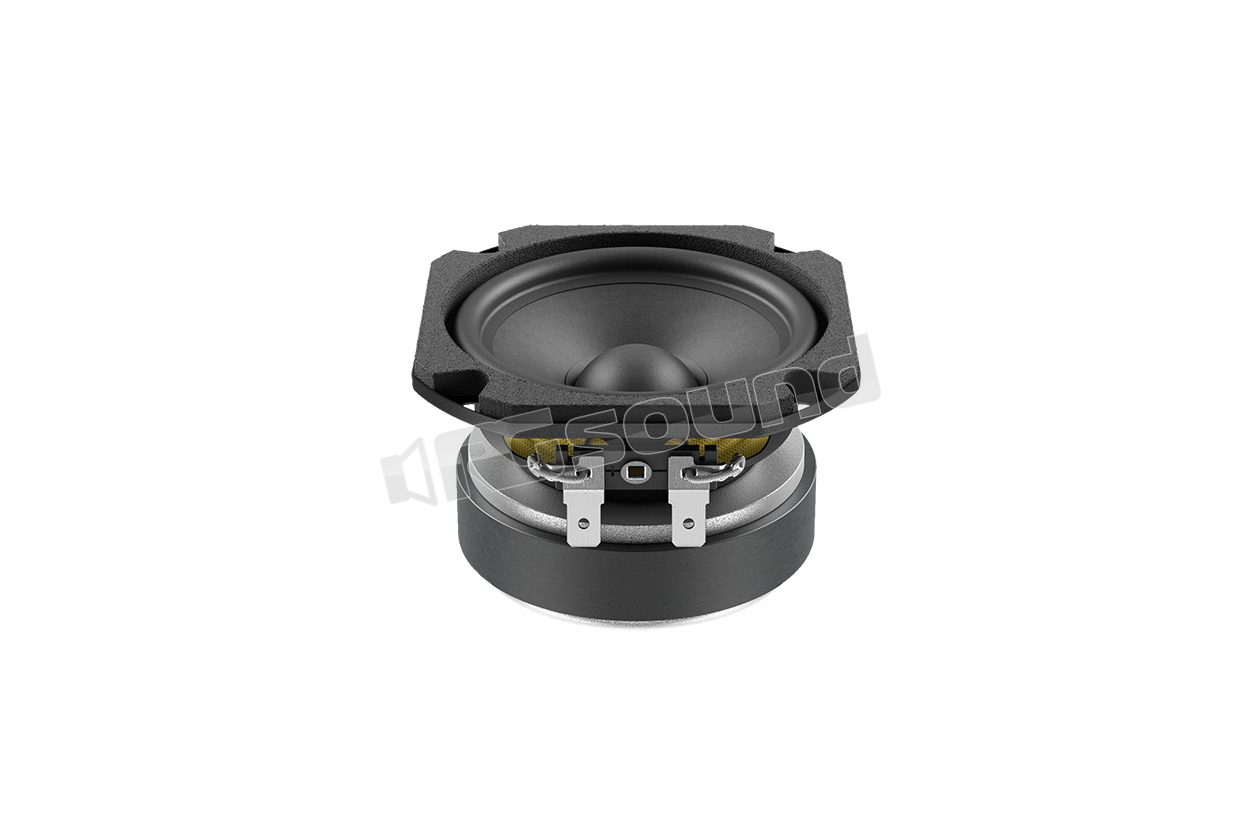

FSF030.70 3"/78mm full-range speaker

LaVoce
Your price:
€ 13,10
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
Other sizes
Frequency Response
120-21000 Hertz
Sensitivity
87,5 dB
Impedance
8 Ohm
Weight
0,5 Kg
Voice Coil Diameter
20 mm

LaVoce FSF030.70 3"/78mm Fullrange


LaVoce code 70R06032

FSF030.70 Features

  • 0.75 inch CCAW voice coil
  • Sensitivity 87.5 db/spl
  • Program power handling 60 watt
  • Motor and suspensions optimized for Fem
  • Copper ring for extended frequency response
  • Steel basket design without resonances and for heavy-duty use
  • Rubber edge material

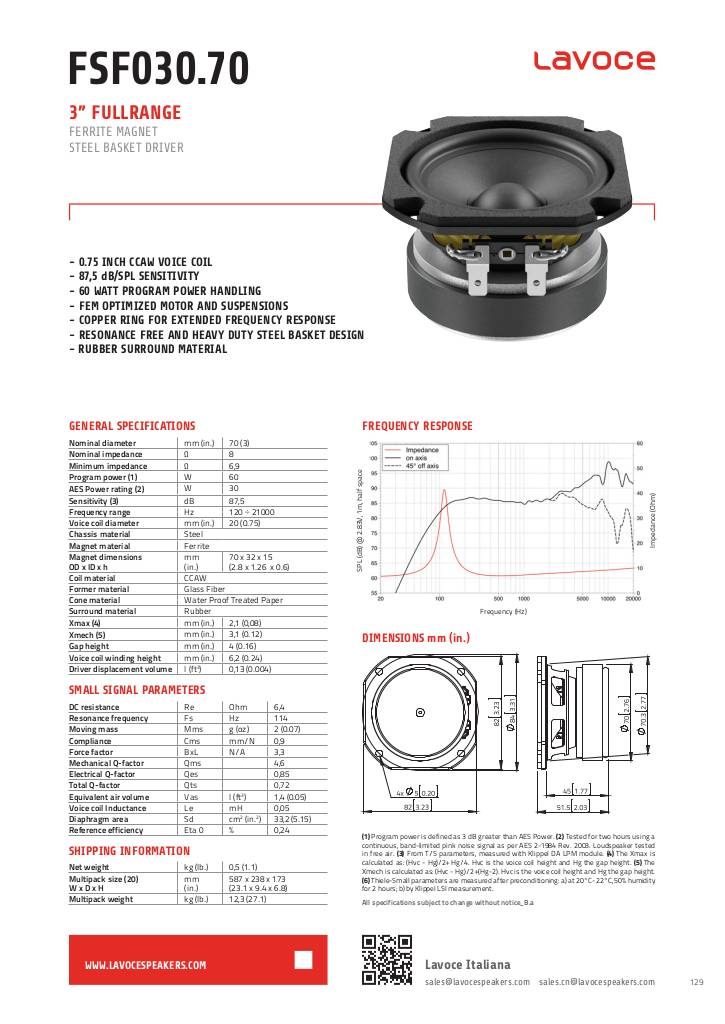

scheda tecnica

1549117467-fsf03070-1.pdf

LaVoce FSF030.70 Technical Specifications

  • Nominal diameter mm (in) 70 (3)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.9
  • Program power W 60
  • AES power W 30
  • Sensitivity dB 87.5
  • Frequency range Hz 120 ÷ 21000
  • Voice coil diameter mm (in) 20 (0.75)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 70 x 32 x 15 (2.8 x 1.26 x 0.6)
  • Coil material CCAW
  • Surround material Fiberglass
  • Cone material Water-resistant treated paper
  • Edge material Rubber
  • Xmax mm (in) 2.1 (0.08)
  • Xmech mm (in) 3.1 (0.12)
  • Gap height mm (in) 4 (0.16)
  • Voice coil winding height mm (in) 6.2 (0.24)
  • Driver displacement volume l (ft³) 0.13 (0.004)
  • DC resistance Ohm 6.4
  • Resonance frequency Hz 114
  • Moving mass g (oz) 2 (0.07)
  • Compliance mm/N 0.9
  • Force factor N/A 3.3
  • Mechanical Q factor 4.6
  • Electrical Q factor 0.85
  • Total Q factor 0.72
  • Equivalent air volume l (ft3) 1.4 (0.05)
  • Voice coil inductance mH 0.05
  • Diaphragm area cm2 (in.2) 33.2 (5.15)
  • Reference efficiency 0.24%
  • Net weight kg (lb) 0.5 (1.1)
  • Multipack dimensions L x W x H 587 x 238 x 173 (23.1 x 9.4 x 6.8)
  • Multipack weight kg (lb) 12.3 (27.1)
