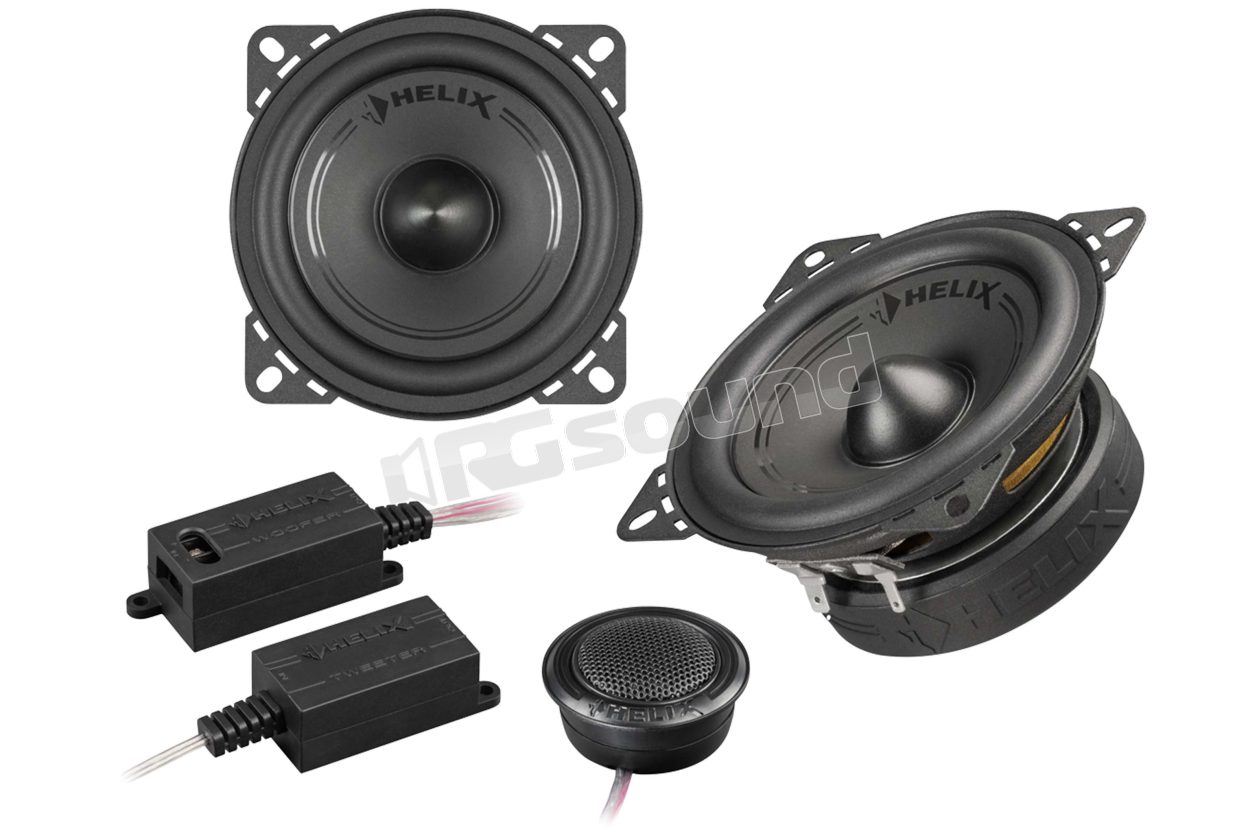

F 42C 2-way speaker kit with 100 mm (4") oofer, 20 mm tweeter and dedicated crossovers

Helix

Discontinued

Your price:
€ 129,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
100 - 22.000 Hertz
Woofer Size
100 mm
Tweeter Size
20 millimetri
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
89 dB
Impedance
3 Ohm
Woofer Material
Polipropilene e fibra di carbonio
Tweeter Material
Cupola in seta

Helix F 42C 2-way speaker kit with 100 mm (4") woofer, 20 mm tweeter and dedicated crossover

The HELIX F speaker series combines proven components and cutting-edge materials, guaranteeing an exceptional sound experience with rich bass, accurate midrange and detailed highs. During development, particular attention was paid to easy integration in the vehicle. In addition to the low installation depth, the innovative "Flex-Crossover" in two parts, in particular, offers much more freedom in terms of connectivity and installation. Therefore, the F speakers are the first choice especially if the tweeters and woofers are installed separately in the door and front pillar.

F 42C Features

  • Power handling: 40/80 Watt
  • Frequency range: 100 Hz - 22000 Hz
  • Sensitivity: 89 dB 1 W / 1m
  • Impedance: woofer 3 Ohm
  • 4" / 100 mm cone with new, low-resonance, polypropylene cone injected with carbon fibers
  • 0.75" / 20 mm silk dome tweeter with neodymium magnet
  • "Flex-Crossover" with 12/12 dB slope and integrated tweeter

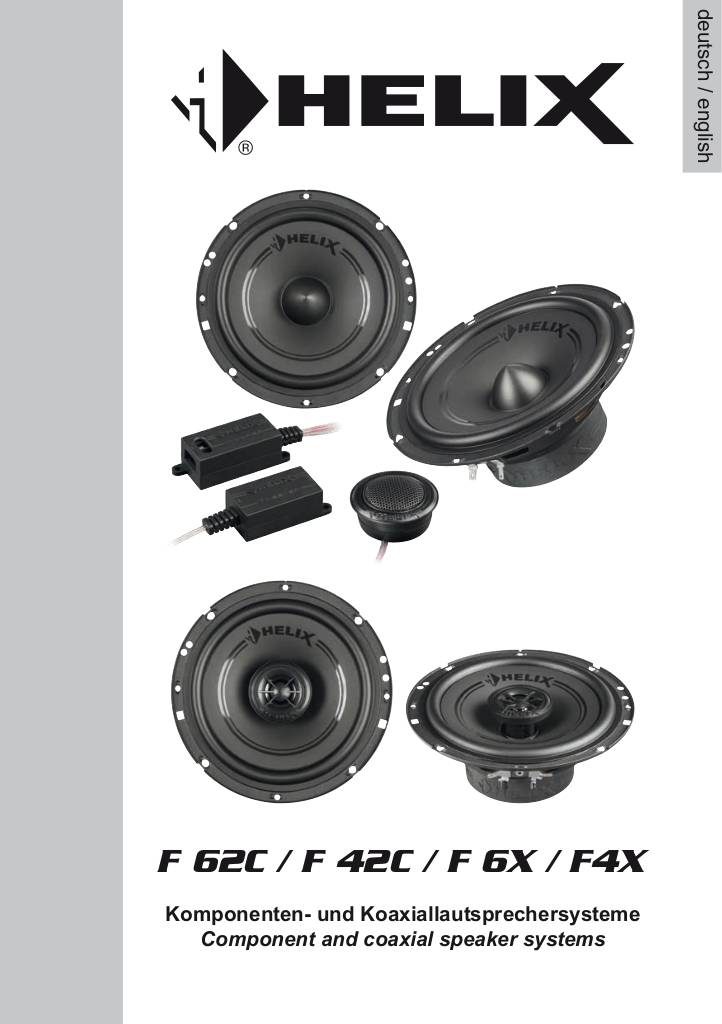

Manuale utente

n-20191106111840-ba-f-series-speaker.pdf

Helix F 42C Technical specifications

  • RMS / max. power 40/80 watt
  • Frequency response 100 Hz - 22,000 Hz
  • Impedance 3 Ω
  • Efficiency 1 W / 1 m 89 dB
  • Tweeter material: silk dome
  • Woofer: polypropylene injected with incorporated carbon fibers
  • Separate crossover, 6/12 dB slope and tweeter protection
  • Outer diameter
    • TW: 52.6 mm / 2.07"
    • W: 102.4 mm / 4.03"
  • Installation diameter
    • TW: 45 mm / 1.77"
    • W: 93 mm / 3.66"
  • Installation depth
    • TW: 17.3 mm / 0.68"
    • W: 45 mm / 1.77"
  • Crossover dimensions
    • Tweeter: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81"
    • Woofer: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"
