Type
Woofer and midwoofer
Speaker Size
170 mm
MAX Power
1000 Watt
RMS Power
200 Watt
Frequency Response
50 - 4000 Hertz
Impedance
4 Ohm
Weight
1.25 Kg
Installation Depth
75 mm
Woofer Material
Polipropilene

Esotar² 650 midwoofer 17 cm (6.5) diameter woofer

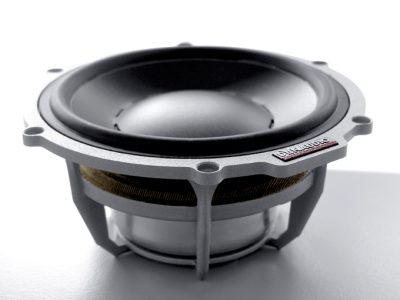

Esotar midwoofer with rigid die-cast aluminum frame and the characteristic Dynaudio MSP (Magnesium Silicate Polymer) cone.

The exceptionally large voice coil diameter is 75 mm, but with extremely lightweight aluminum wire wound on a Kapton former, the voice coil remains extremely light. With the support of the powerful neodymium magnet, this construction offers excellent transient response, speed and accuracy.

Membrane and protective cap, molded as a single piece
The large 75 mm voice coil ensures high power handling

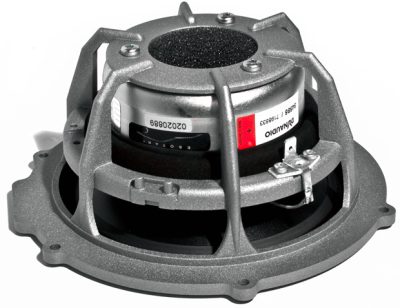

Dual magnet system with pole ventilation
Aluminum wire voice coil provides low mass movement, wound on kapton former, a machine

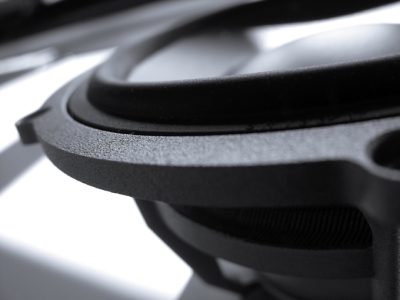

Aerodynamic rigid die-cast aluminum frame

Scheda Tecnica e parametri acustici

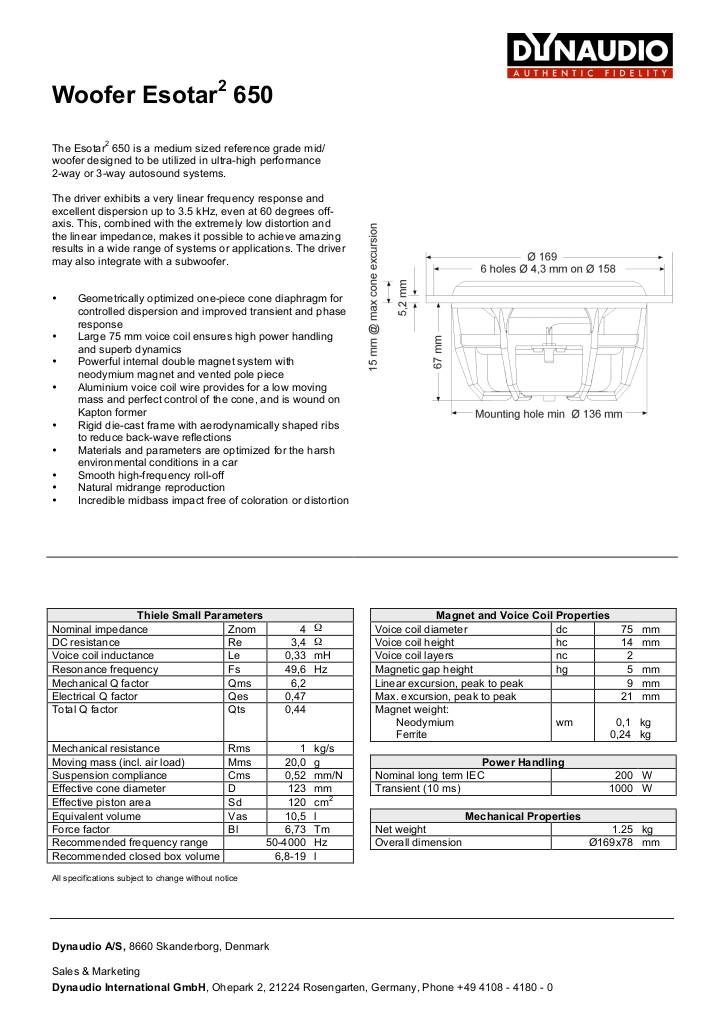

20090712224744-esotar2-650.pdf

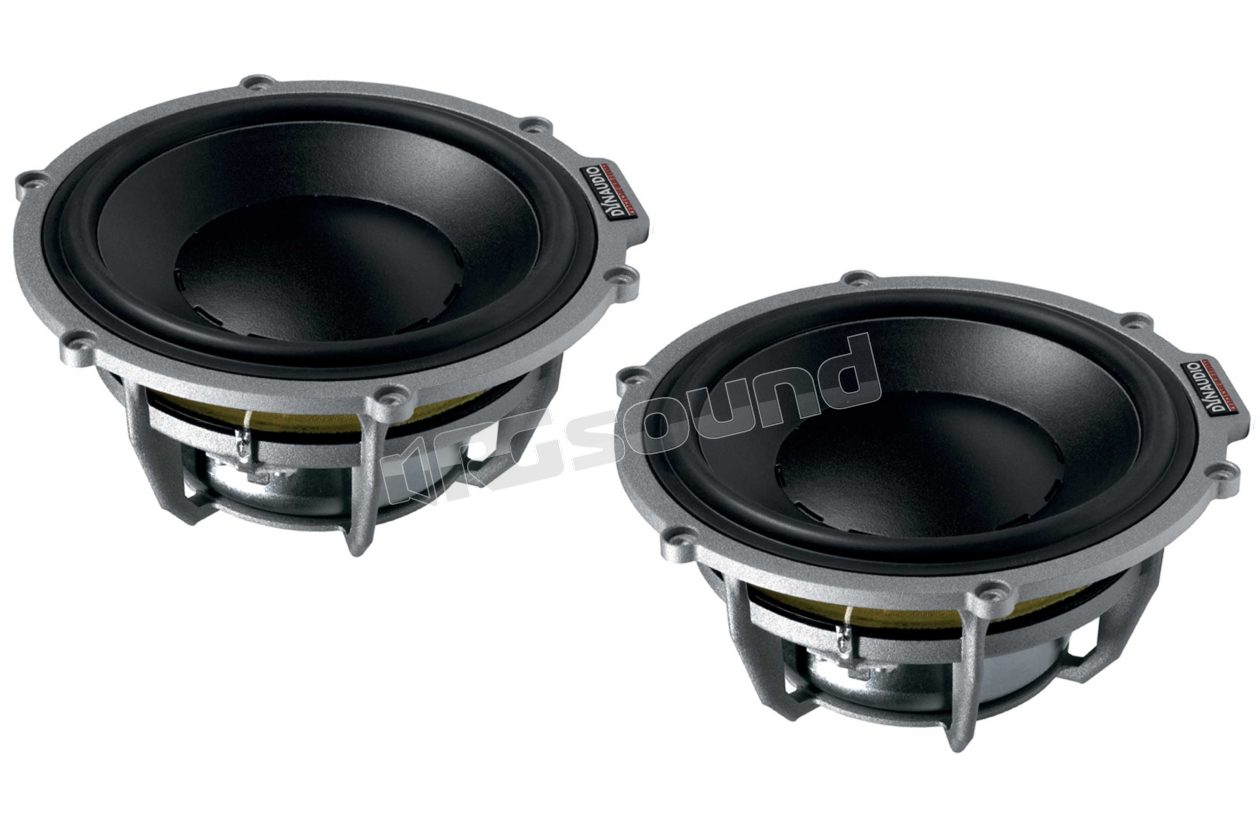

2x Esotar² 650 Speaker

DYNAUDIO Esotar² 650 technical specifications

Bass-Midrange
Impedance 4 Ohm
Frequency from 50 Hz
Max. Frequency 4 kHz
Voice coil Ø 75 mm
Voice coil height 14 mm

Diameter 169 mm
Mounting hole diameter 136 mm
Mounting depth 67 mm

Resonance fs fs: 49.6 Hz
Mechanical Qms: 6.2
Electrical Q Q: 0.47
Total Qts Q: 0.44
Air volume: 10.5 liters
DC resistance Re: 3.4 Ohm
Voice coil inductance Le: 0.33 mH
