Esotar2 110

Dynaudio

Coming soon

Your price:
€ 1040,00
Price per pair (VAT included)
Type
Tweeter
Dome Size
28 mm
MAX Power
1000 Watt
RMS Power
150 Watt
Frequency Response
2000 - 30000 Hertz
Sensitivity
91 dB
Impedance
6 Ohm
Outer Diameter
111 mm
Installation Depth
27 mm
Tweeter Material
seta trattata

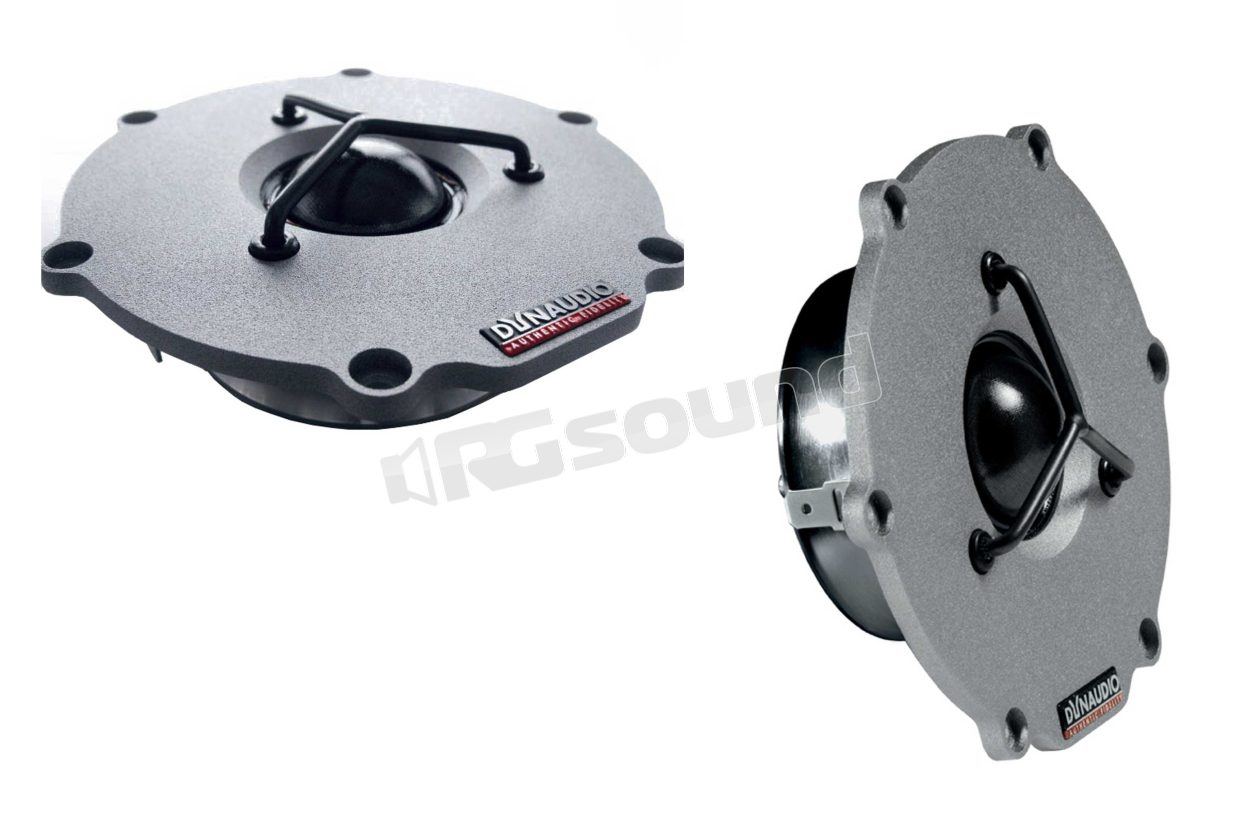

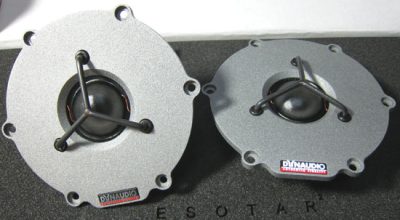

DYNAUDIO ESOTAR² 110 pair of reference soft dome tweeters, 28 mm voice coil, 111 mm outer diameter. 6 Ohm impedance.

Dynaudio has earned the reputation of producing some of the finest high-frequency drivers available with its Esotar models, incorporating its most refined technology into the new reference automotive tweeter.

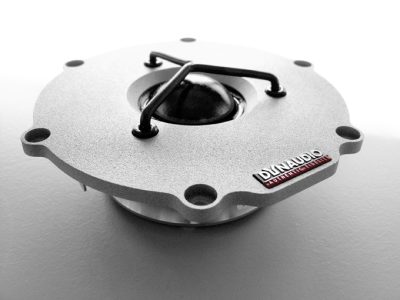

Esotar² 110 is characterized by a specially coated fabric dome with a diameter of 28 mm (1.1"), a powerful neodymium magnet and an exceptional CNC-machined metal housing with a damping rear chamber.

The fabric-coated dome eliminates any high-frequency breakup
Very powerful neodymium magnet system with ventilated pole piece
Open, spacious and detailed high-frequency reproduction
Excellent dynamic and transient performance
Damped cavity chamber integrated in the pole piece
Variovent integrated in the rear plate
Ferrofluid basket for increased damping and power handling improvement
Reduced mounting depth



Scheda Tecnica e parametri acustici

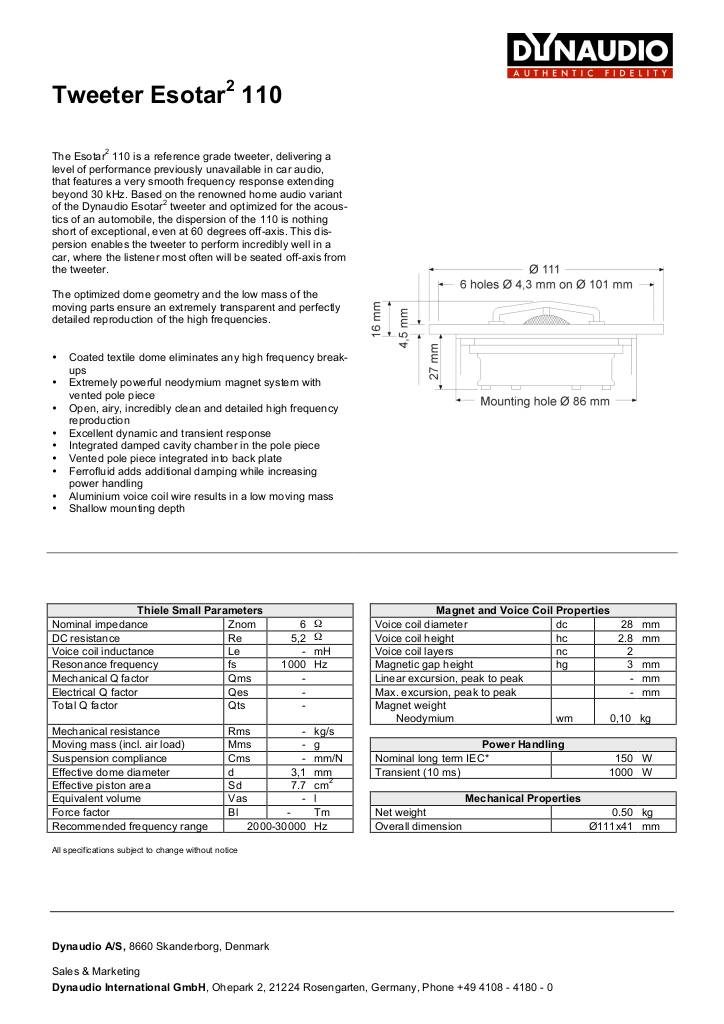

20090712224901-esotar2-110.pdf

2x Esotar² 110 Speaker

DYNAUDIO ESOTAR² 110 technical specifications

Tweeter
Power Handling 150 Watt
Impedance 6 Ohm
Frequency from 2000 Hz
Max. Frequency 30 kHz
Sound Pressure 92 dB
Voice Coil Ø 28 mm
Voice Coil Height 2.8 mm

Diameter 111 mm
Installation Hole Diameter 68 mm
Installation Depth 27 mm


Resonance fs fs: 1000 Hz
DC Resistance Re: 5.2 Ohm
Membrane Area Sd: 7.7 cm²
