E 52C.2 Two-way kit with 130mm woofer

Helix

Discontinued

Your price:
€ 206,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 25.000 Hertz
Woofer Size
130 mm
Tweeter Size
25 millimetri
MAX Power
180 Watt
RMS Power
60 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cono in fibra di vetro
Tweeter Material
Cupola in seta

Helix E 52C.2 Two-way kit with 130mm woofer and fiberglass cone

Two-way kit composed of a pair of 130mm woofers with fiberglass cone + pair of 25mm tweeters with silk dome and neodymium magnet + separate crossovers 6/12 dB slope, absorption circuit, tweeter protection and adjustment

E 52C.2 Features

  • 130mm (4") woofer with rigid fiberglass cone to minimize resonances
  • Large effective cone area for greater maximum excursion
  • 25mm (1") tilting tweeter with silk dome and neodymium magnet for bright and smooth treble response
  • HELIX basket design with additional ventilation holes for better voice coil cooling
  • Separate crossover with a slope of 6/12 dB, bandstop filter, tweeter protection and adjustable tweeter level
  • Speaker grilles included

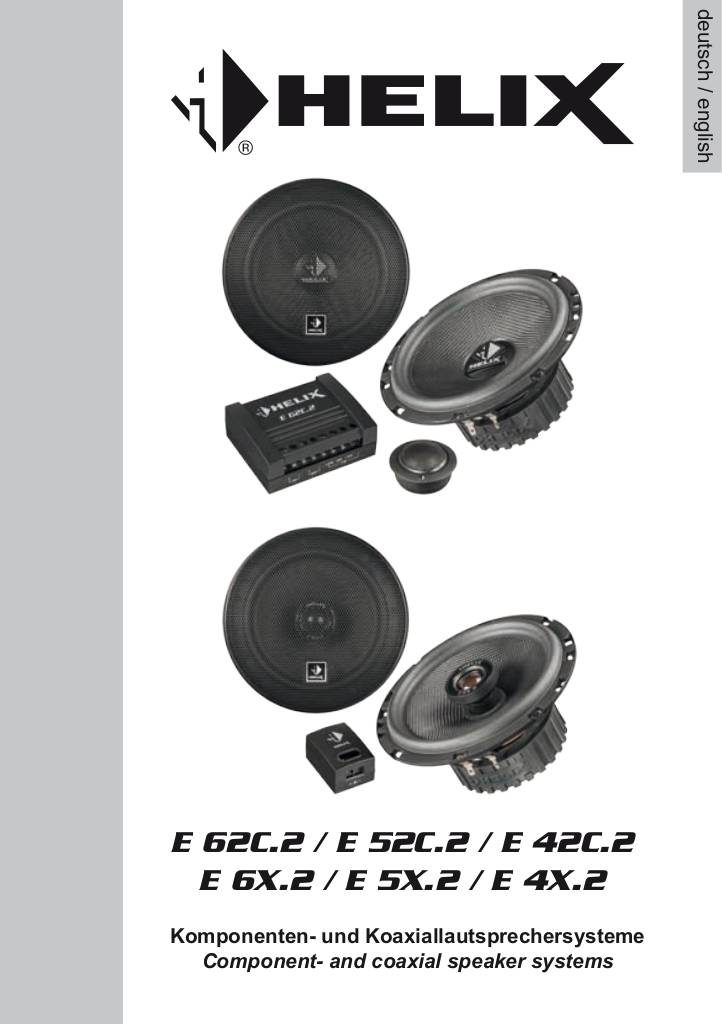

Manuale utente

n-20161124145215-ba-e-2-speaker.pdf

Helix E 52C.2 Technical Specifications

  • RMS power handling 60 Watt
  • Max power handling 180 Watt
  • Frequency range 60 Hz - 25,000 Hz
  • Sensitivity 90 dB 1W / 1m
  • Impedance 4 Ohm
  • Woofer diameter 130 mm (5.25")
  • Tweeter diameter 25 mm (1")
  • Woofer installation depth 54 mm (2.05")
  • Tweeter installation depth 17.5 mm (0.70")
  • Woofer installation diameter 120 mm (4.72")
  • Tweeter installation diameter 47 mm (1.85")
Discontinued
