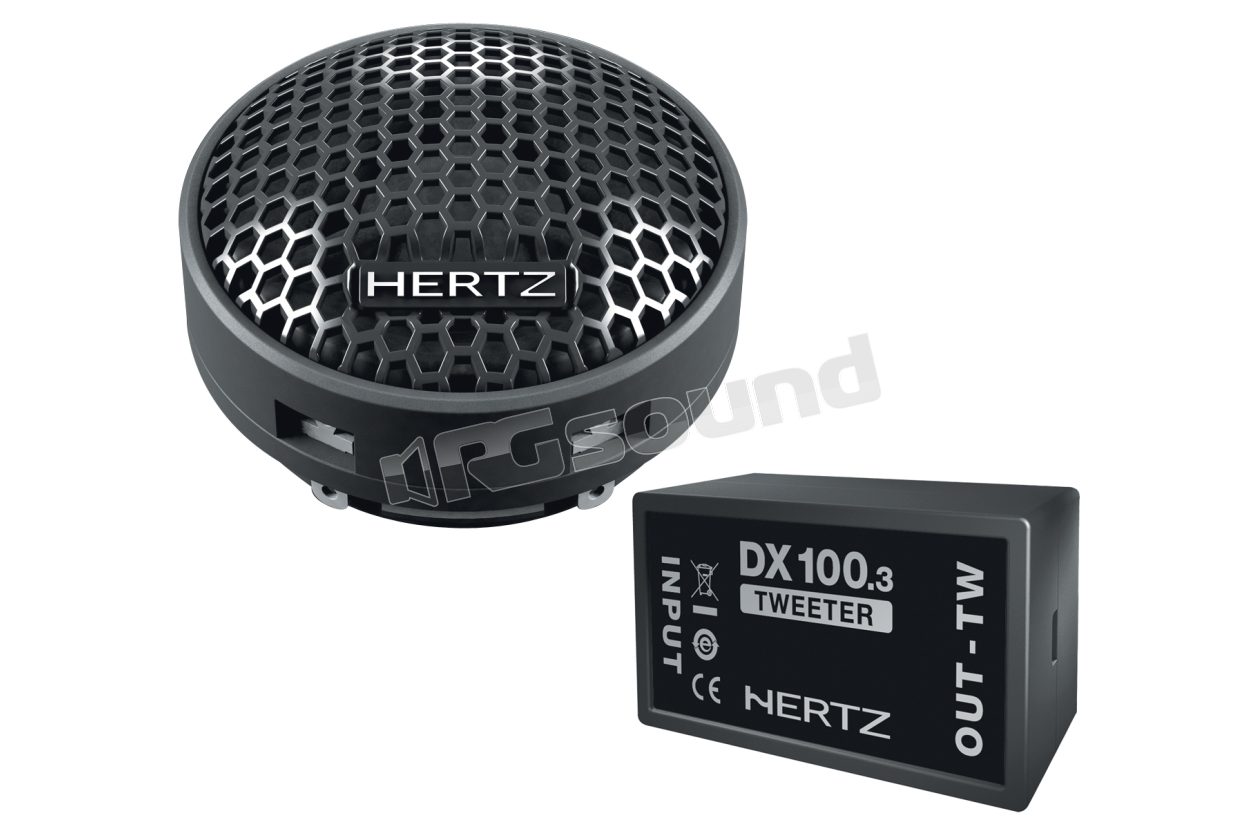

DT 24.3 24mm tweeter with Neodymium magnet and dedicated crossovers

Hertz
Your price:
€ 34,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
24 mm
MAX Power
80 Watt
RMS Power
40 Watt
Frequency Response
3000 - 23000 Hertz
Sensitivity
94 dB
Impedance
4 Ohm
Outer Diameter
34 mm
Installation Depth
13 mm
Tweeter Material
PEI

Hertz DT 24.3 Pair of 24mm tweeters with Neodymium magnet, PEI dome and dedicated crossovers

Neodymium tweeter with an optimized structure to offer efficiency and linearity of frequency response at very high levels for its reference category.
The architecture of the DT 24 tweeter consists of a high linearity and efficiency annular acoustic lens and a membrane with optimized geometry made of PEI, a material selected for its high rigidity and heat resistance; a design solution that allows optimal damping of resonances and a cleaner and more linear sound, even at high SPL values. Installation is universal with brackets included for both surface and flush mounting.

DT 24.3 Features

  • Tweeter with 24 mm dome in PEI.
  • High efficiency annular acoustic lens
  • High energy Neodymium magnet.
  • Brackets included for both surface and surface mounting

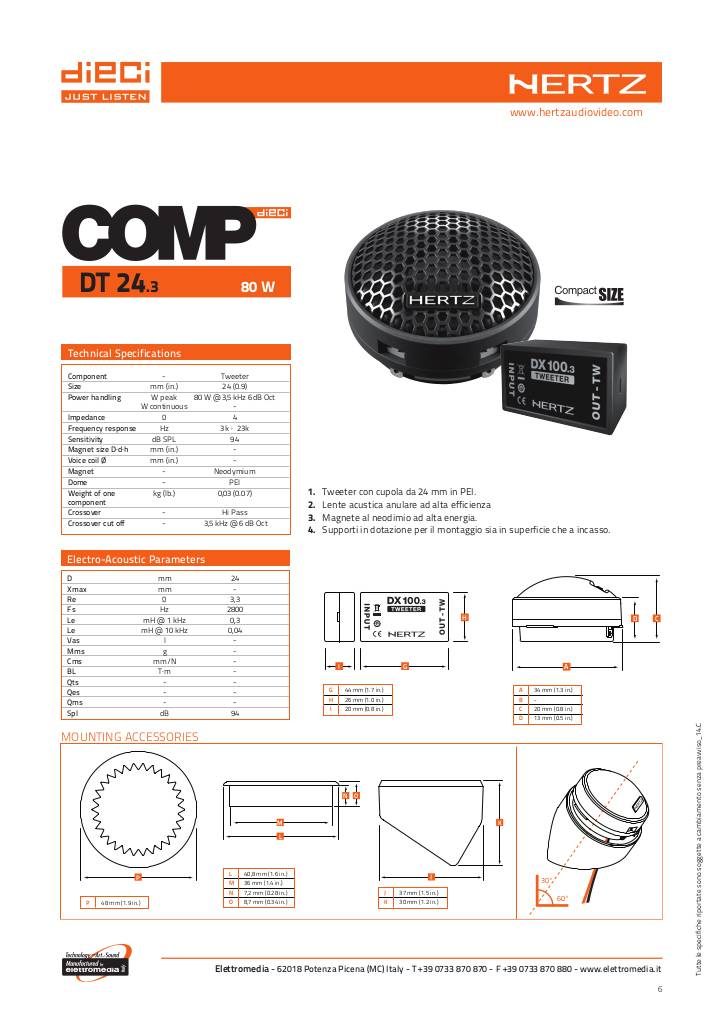

Scheda tecnica

20150424102311-dt24-3-scheda.pdf

2x Tweeter DT 24.3 2x Crossover Surface and flush mounting brackets User manuals

Hertz DT 24.3 Technical Specifications

  • Tweeter Component
  • Dimensions mm (in.) 24 (0.9)
  • Power handling - Peak W 80
  • Power handling - Peak Note @ 3.5 kHz 6 dB Oct
  • Impedance Ohm 4
  • Depth mm (in.) 20 (0.8)
  • Voice coil Ø -
  • Frequency response Hz 3k ÷ 23k
  • Magnet dimensions D x d x h mm (in.) -
  • Weight of one speaker kg (lb.) 0.03 (0.07)
  • Magnet Neodymium
  • Dome PEI
€ 34,90 Price incl. VAT
