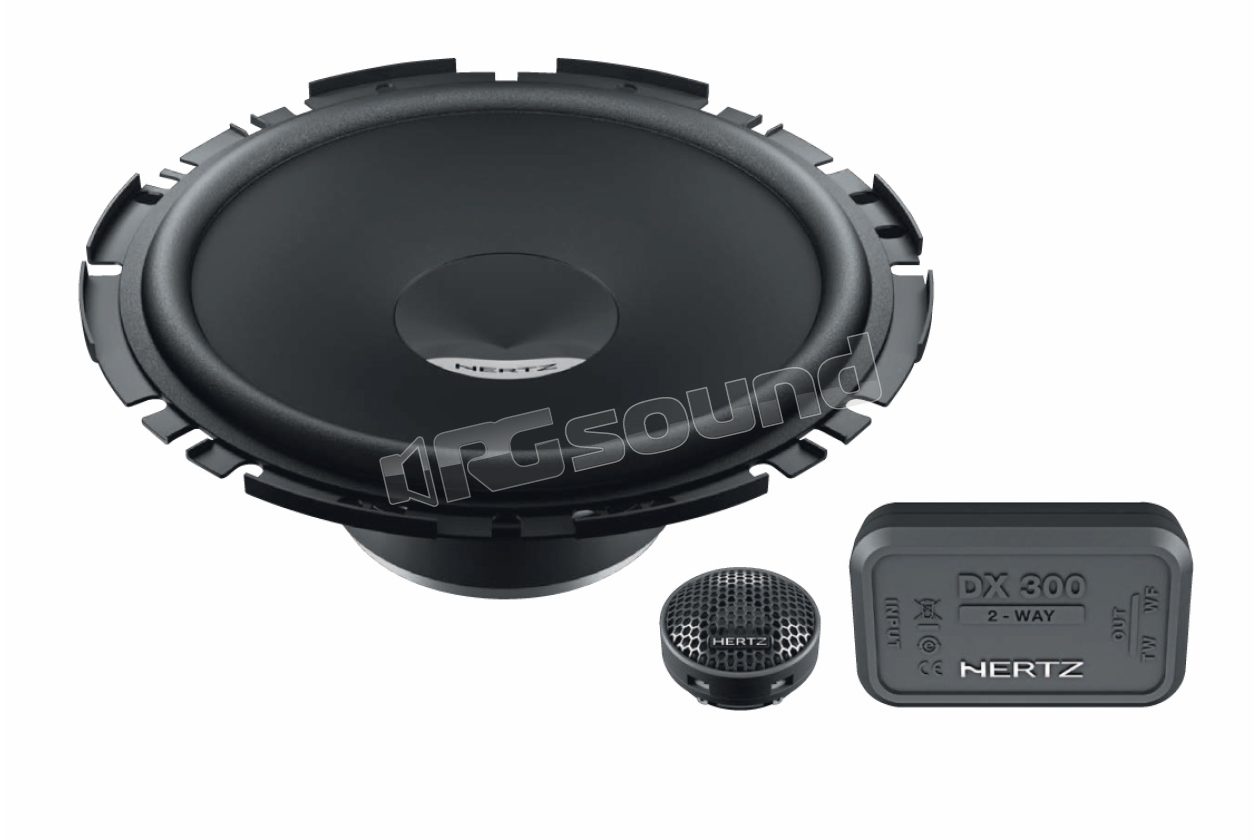

DSK 170.3 2-way speaker kit with with ultra-flat woofer

Hertz
Your price:
€ 94,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
50 - 23000 Hertz
Woofer Size
165 mm
Tweeter Size
24 millimetri
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

Hertz DSK 170.3 2-way speaker kit with ultra-slim woofer

2-way kit with ultra-slim 165mm woofer consisting of a pair of DV 170.3 midwoofers + pair of DT 24.3 tweeters + crossover + installation accessories. Thanks to the remarkable sensitivity (93dB) this kit is perfect in combination with the integrated amplifier of standard car stereos and the original sources of your car.


Woofer installation depth of only 45mm, same performance as the DSK-165 kit but with reduced depth.

DT 24.3 Tweeter

  • Tweeter with 24 mm PEI dome.
  • High efficiency annular acoustic lens
  • High energy Neodymium magnet.
  • Mounting brackets included for both surface and recessed installation.

Midwoofer DV 170.3

  • Oversized magnetic assembly for energetic control of the mobile assembly.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • V-cone® for the best off-axis response, detail in the midrange and powerful bass.
  • TPU suspension, for the benefit of wide excursion and damping of resonances.
  • DIN-compliant basket, protected from abrasion and corrosion with powder paint.
  • High current terminals, tin plated.
  • Silver-plated braids in very fine weave for maximum reliability and conductivity.
  • Basket-motor assembly connection with epoxy glue.
  • Low carbon pole plates for maximum magnetic permeability and high thermal dissipation.

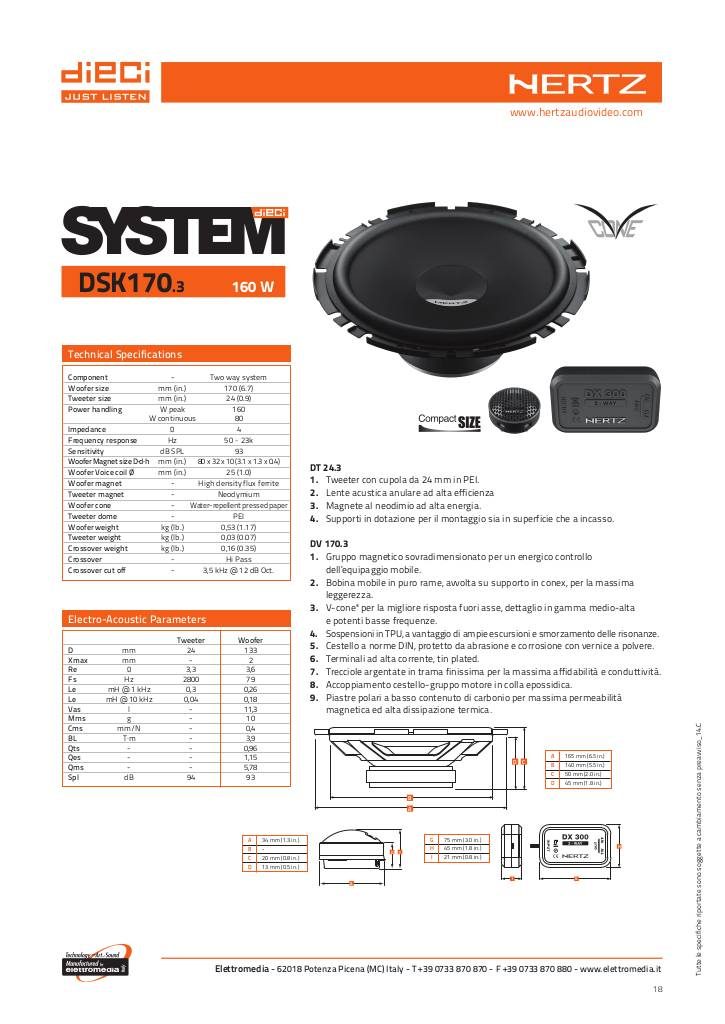

Scheda tecnica

20151127152305-dsk170-3.pdf

Pair of midwoofers Pair of tweeters Pair of crossovers Mounting accessories Adapters for tweeter flush-mount installation and angled bracket installation.

Hertz DSK 170.3 Technical Specifications

  • Component Two-way system
  • Size mm 170
  • Power handling - continuous W 80
  • Power handling - peak W 160
  • Impedance Ohm 4
  • Woofer voice coil Ø mm 25
  • Sensitivity dB SPL 93
  • Frequency response Hz 50 ÷ 23k
  • Crossover Cut off 3.5 kHz @ 12 dB Oct.
  • Crossover type Hi Pass
  • Weight of one component
    • Woofer 0.53
    • Tweeter kg 0.03
    • Crossover kg 0.16
