DSK 165.3 2-way kit for upgrading the factory audio system

Hertz
Your price:
€ 94,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
50 - 23000 Hertz
Woofer Size
165 mm
Tweeter Size
24 millimetri
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

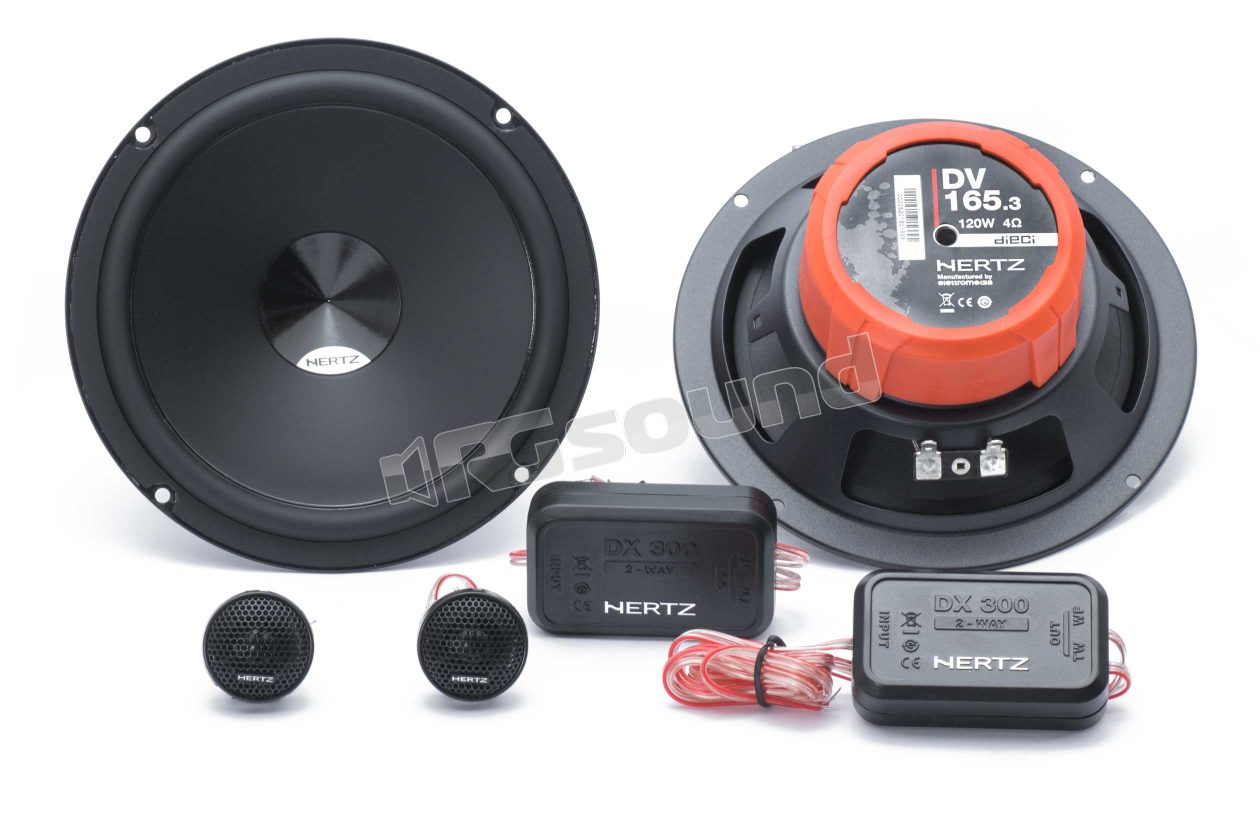

Hertz DSK 165.3 2-way Kit composed of midwoofer DV 165.3 + tweeter DT 24.3 + crossover + installation accessories

With the Dieci systems you can create high-quality audio systems with great simplicity. The woofers use the exclusive V-cone® profile, for the best off-axis response and detail in the mid-high range, and a TPU (Thermoplastic polyurethane) surround that ensures linearity and reduction of resonances, even at high excursions; the tweeter, thanks to the use of high-performance materials, such as neodymium and a PEI membrane, ensures a clean and extended high range.

The passive filters made directly on the connection cables and the rich equipment of accessories increase installability in any condition and reduce signal interference, for a powerful, clean and undistorted sound.

The kit is composed of:

Tweeter DT 24.3

  • Tweeter with 24 mm PEI dome.
  • High efficiency annular acoustic lens
  • High-energy Neodymium magnet.
  • Brackets supplied for both surface and flush mounting.

Midwoofer DV 165.3

  • Oversized magnetic group for energetic control of the mobile assembly.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • V-cone® for the best off-axis response, detail in the mid-high range and powerful bass frequencies.
  • TPU suspension, for the benefit of wide excursions and damping of resonances.
  • Basket to DIN standards, protected from abrasion and corrosion with powder coating.
  • High-current terminals, tin plated.
  • Silver-plated braids in very fine weave for maximum reliability and conductivity.
  • Protective cover in butyl rubber, anti-corrosion and anti-scratch.
  • Basket-motor group coupling with epoxy glue.
  • Polar plates with low carbon content for maximum magnetic permeability and high thermal dissipation.
  • External diameter of the lower part of the woofer with orange rubber 85 mm.

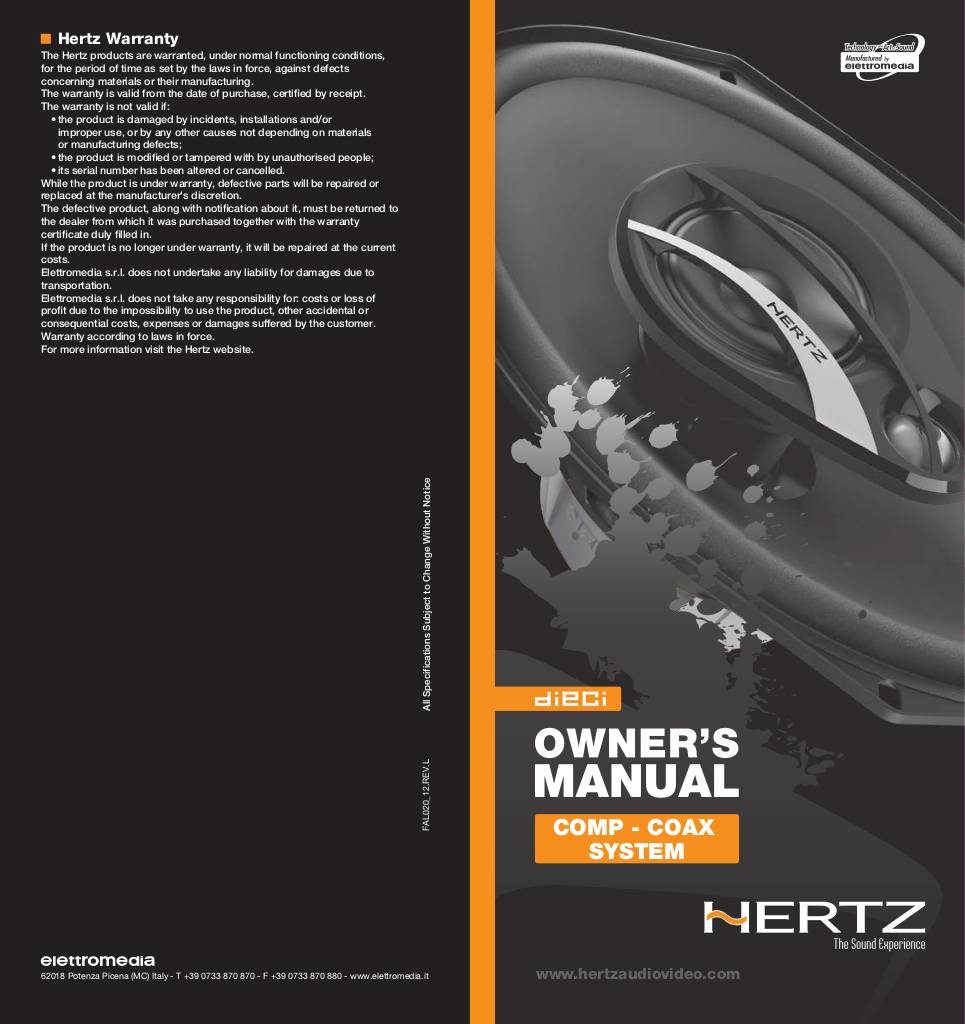

Manuale utente

20150422120702-hertz-dieci-comp-coax-system-manual.pdf

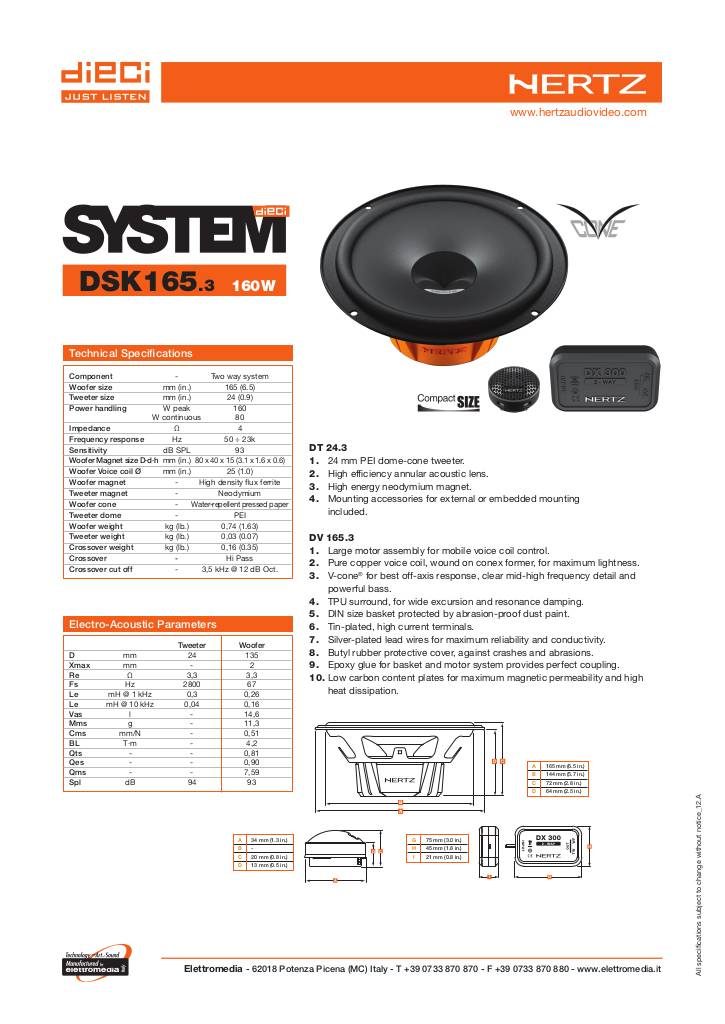

Scheda tecnica

20150422120702-hertz-dieci-dsk-165-tech.pdf

Pair of midwoofers Pair of tweeters Pair of crossovers Accessories

Hertz DSK 165.3 Technical specifications

  • Component Two-way system
  • Dimensions mm (in.) 165 (6.5)
  • Power handling - continuous W 80
  • Power handling - peak W 160
  • Impedance Ohm 4
  • Woofer voice coil Ø mm 25
  • Sensitivity dB SPL 93
  • Frequency response Hz 50 ÷ 23k
  • Crossover Cut off 3.5 kHz @ 12 dB Oct.
  • Crossover type Hi Pass
  • Weight of a component - Woofer 0.74
  • Weight of a component - Tweeter kg 0.03
  • Weight of a component - Crossover kg 0
€ 94,90 Price incl. VAT
