DSK 130.3 2-way kit with DV 130.3 midwoofer and DT 24.3 tweeter

Hertz
Your price:
€ 94,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
60 - 23000 Hertz
Woofer Size
130 mm
Tweeter Size
24 millimetri
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cellulosa idrorepellente
Tweeter Material
PEI

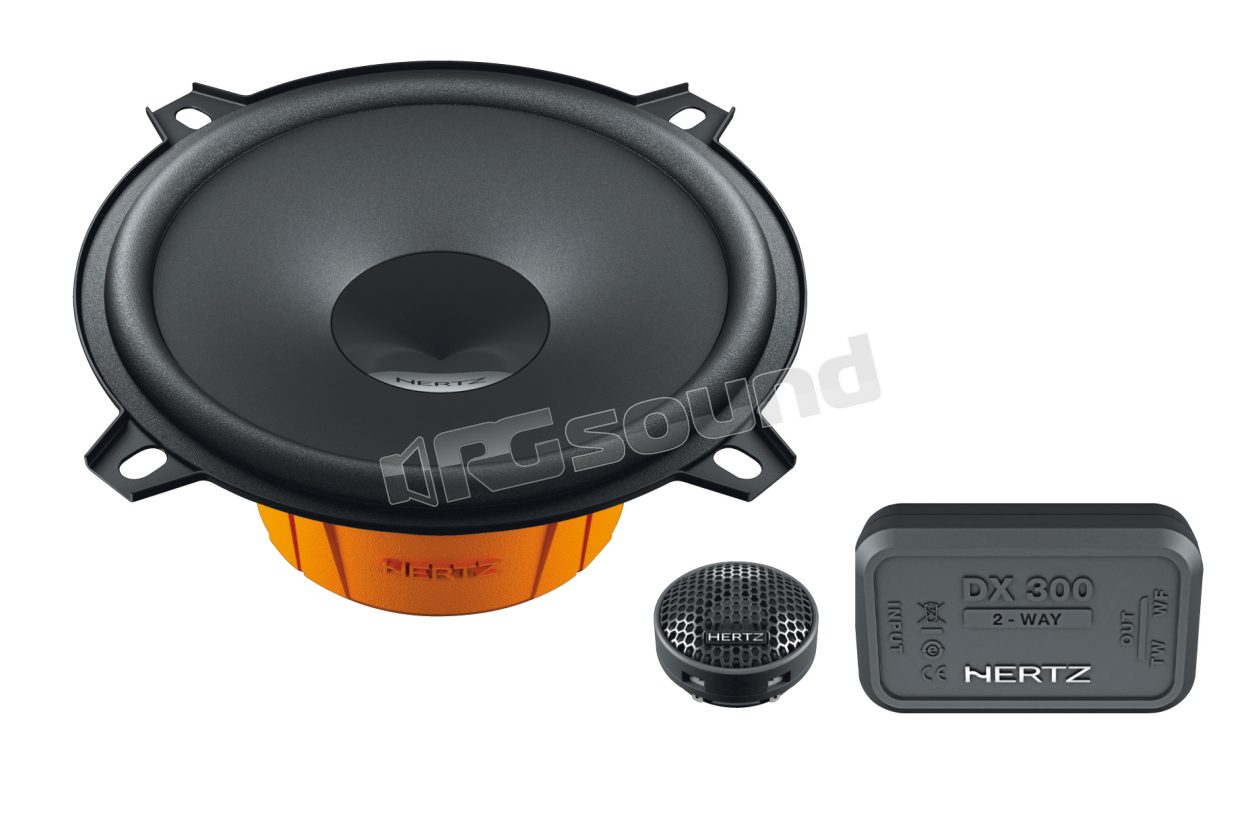

Hertz DSK 130.3 2-way kit with ultra-flat woofer consisting of pair of midwoofer DV 130.3 + pair of tweeter DT 24.3 + crossover + installation accessories

With the Dieci systems you can create high quality audio systems with complete simplicity. The woofers use the exclusive V-cone® profile, for the best off-axis response and detail in the mid-high range, and a TPU surround (Thermoplastic polyurethane) that ensures linearity and reduction of resonances, even at high excursion; the tweeter, thanks to the use of high-performance materials, such as neodymium and a PEI membrane, ensures a clean and extended high range. The passive filters made directly on the connection cables and the rich selection of accessories increase installability in any condition and reduce signal interference, for powerful, clean and undistorted sound.

The kit consists of:

Tweeter DT 24.3

  • Tweeter with 24 mm dome in PEI.
  • High efficiency annular acoustic lens
  • High energy Neodymium magnet.
  • Mounting brackets included for both surface and flush mounting.

Woofer DV 130.3

  • Oversized magnetic assembly for energetic control of the moving parts.
  • Pure copper voice coil, wound on Conex support, for maximum lightness.
  • V-cone® for the best off-axis response, detail in the mid-high range and powerful bass frequencies.
  • TPU suspension, for the benefit of wide excursion and damping of resonances.
  • Basket complying with DIN standards, protected from abrasion and corrosion with powder paint.
  • High current terminals, tin plated.
  • Silver-plated braids in very fine weave for maximum reliability and conductivity.
  • Protective rubber cover in butyl, anti-corrosion and anti-scratch.
  • Basket-motor assembly coupling with epoxy adhesive.
  • Polar plates with low carbon content for maximum magnetic permeability and high heat dissipation.

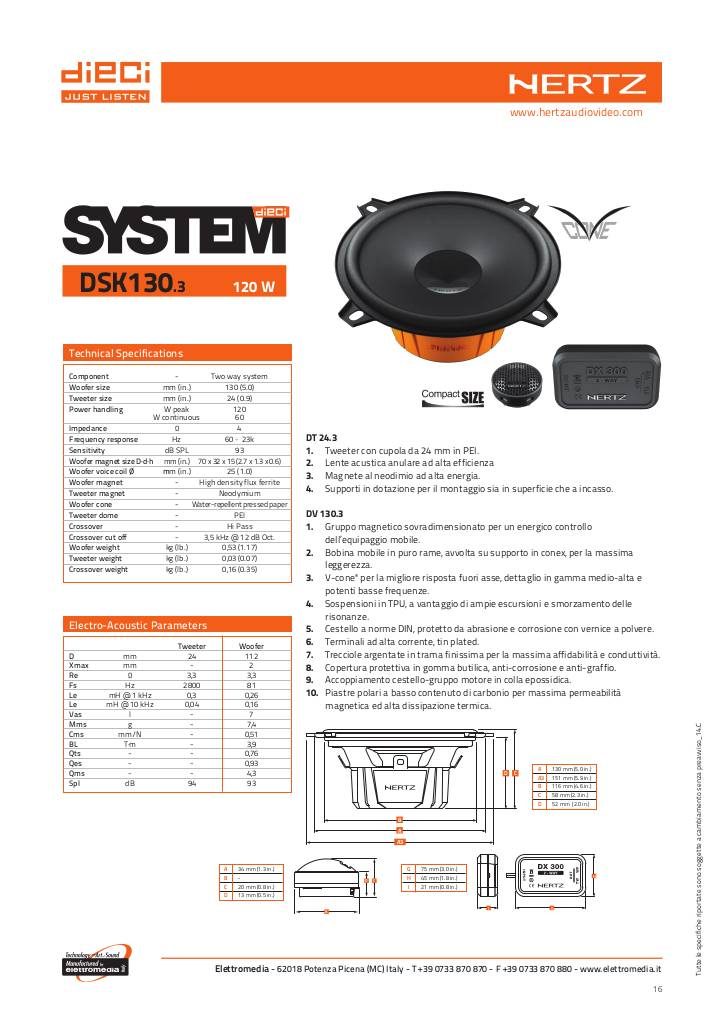

Scheda tecnica

20150423175716-dsk130-3-scheda.pdf

Pair of midwoofers Pair of tweeters Pair of crossovers Accessories

Hertz DSK 130.3 Technical specifications

  • Component Two-way system
  • Dimensions mm 130
  • Continuous power handling W 60
  • Peak power handling W 120
  • Impedance Ohm 4
  • Woofer voice coil Ø mm (in) 25 (1)
  • Sensitivity dB SPL 93
  • Frequency response Hz 60 ÷ 23k
  • Crossover Cut off 3.5 kHz @ 12 dB Oct.
  • Crossover type Hi Pass
  • Weight of one component - Woofer kg 0.53
  • Weight of one component - Tweeter kg 0.03
  • Weight of one component - Crossover kg 0.16
€ 94,90 Price incl. VAT
