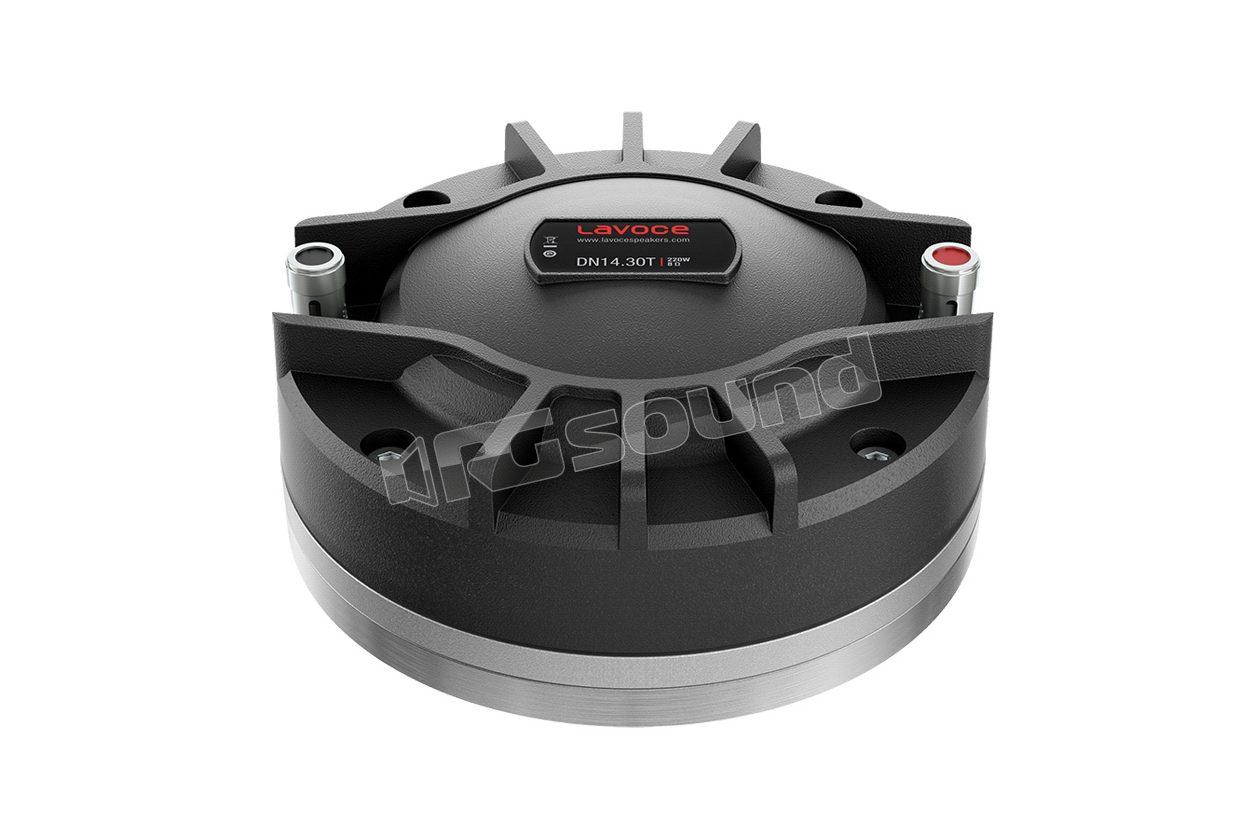

DN14.30T 36mm High Frequency Tweeter

LaVoce
Your price:
€ 271,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
500 - 18000 Hertz
Sensitivity
108 dB
Impedance
8 Ohm
Weight
1,4 Kg
Voice Coil Diameter
75 mm

LaVoce DN14.30T High Frequency Tweeter 36mm

LaVoce code 70R93141

    DN14.30T Features

    • 3 inch CCA edgewound voice coil
    • Sensitivity 108 db/spl
    • Program power handling 220 w
    • Motor, phaseplug and diaphragm optimized for FEM
    • Frequency range 500 - 18000 hz
    • Titanium diaphragm

    Notes

    • Program power is defined as 3 dB above AES power.
    • Test with horn load for 2 hours with continuous pink noise limited in band (1000-20000 Hz, 12dB/oct.) according to AES 2-1984 Rev. 2003.
    • Measured on-axis at 2.83 V, 1 m, speaker loaded with HD1403 horn, average SPL in the frequency range 500 ÷ 18000 Hz.
    • High-pass filter with slope of 12 dB/oct. or greater.

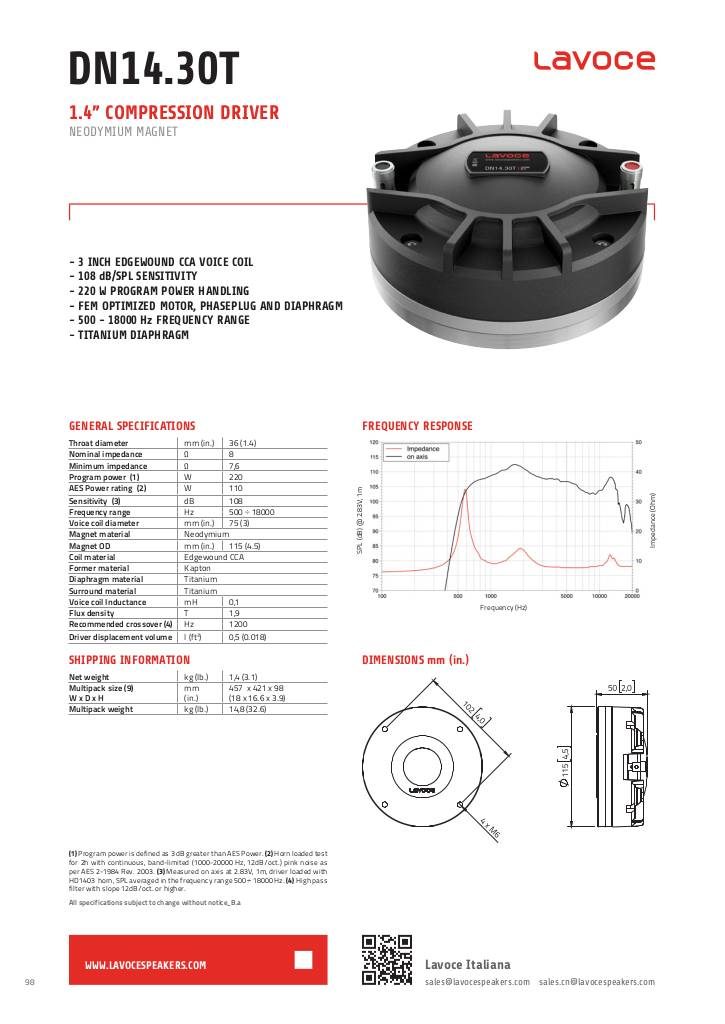

    scheda tecnica

    1549117696-dn1430t-1.pdf

    LaVoce DN14.30T Technical Specifications

    • Throat diameter mm (in) 36 (1.4)
    • Nominal impedance Ohm 8
    • Minimum impedance Ohm 7.6
    • Program power (1) W 220
    • AES power (2) W 110
    • Sensitivity (3) dB 108
    • Frequency range Hz 500 ÷ 18000
    • Voice coil diameter mm (in) 75 (3)
    • Magnet material Neodymium
    • Coil material
    • CCA edgewound
    • Forming material Kapton
    • Diaphragm material Titanium
    • Surround material Titanium
    • Magnet OD mm (in) 115 (4.5)
    • Voice coil inductance mH 0.1
    • Flux density T 1.9
    • Recommended crossover (4) Hz 1200
    • Driver displacement volume l (ft³) 0.5 (0.018)
    • Multipack weight kg (lb) 14.8 (32.6)
    • Multipack dimensions L x W x H 457 X 421 X 98 (18 X 16.6 X 3.9)
    • Net weight kg (lb) 1.4 (3.1)
