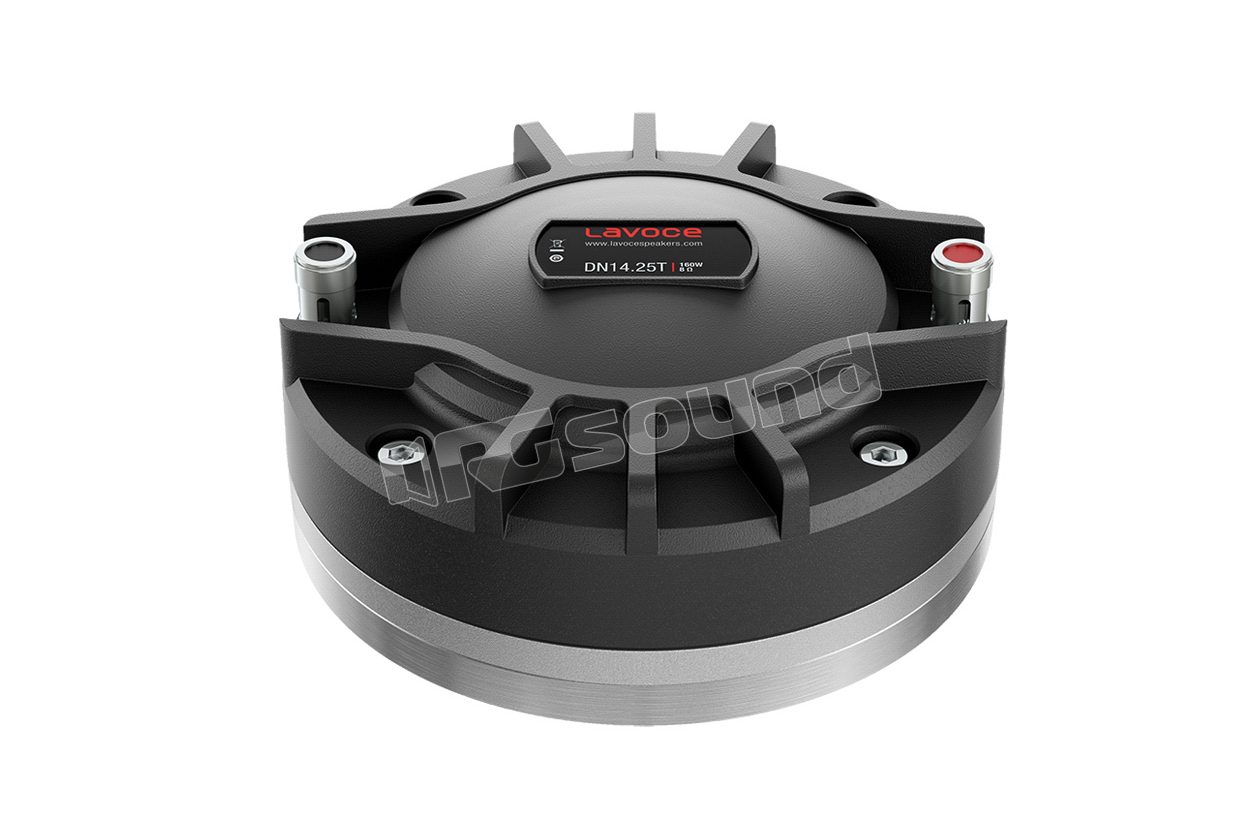

DN14.25T 1.4"/36mm High Frequency Tweeeter

LaVoce
Your price:
€ 197,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1000 - 18000 Hertz
Sensitivity
108 dB
Impedance
8 Ohm
Weight
1,3 Kg
Voice Coil Diameter
65 mm

LaVoce DN14.25T High Frequency Tweeter 1.4"/36mm


LaVoce code 70R93140

DN14.25T Features

  • 2.5 inch CCA voice coil edgewound
  • Sensitivity 108 db/spl
  • Program power handling 160 w
  • Motor, phaseplug and diaphragm optimized FEM
  • Frequency range 1000 - 18000 hz
  • Titanium diaphragm


Notes

  • Program power is defined as 3 dB above AES power.
  • Test with horn load for 2 hours with continuous pink noise and band limited (1600-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on axis at 2.83 V, 1 m, speaker loaded with HD1403 horn, average SPL in the frequency range 1000 ÷ 18000 Hz.
  • High pass filter with slope of 12 dB/oct. or higher.

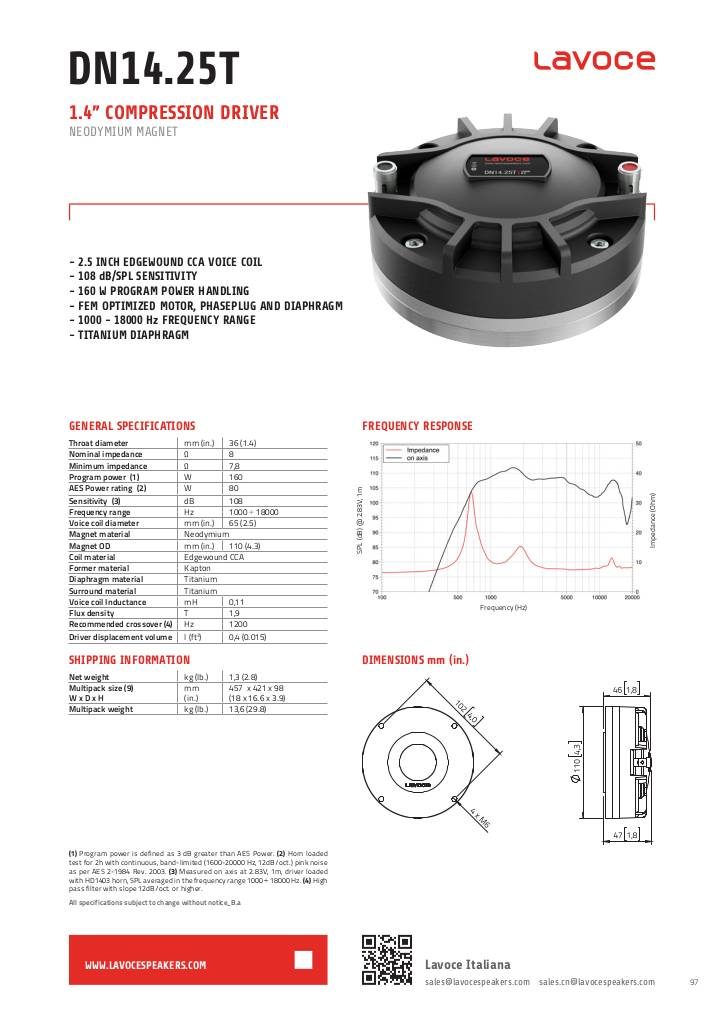

scheda tecnica

1549117648-dn1425t-1.pdf

LaVoce DN14.25T Technical Specifications

  • Throat diameter mm (in) 36 (1.4)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.8
  • Program power (1) W 160
  • AES power (2) W 80
  • Sensitivity (3) dB 108
  • Frequency range Hz 1000 ÷ 18000
  • Voice coil diameter mm (in) 65 (2.5)
  • Magnet material Neodymium
  • Voice coil material CCA edgewound
  • Surround material Kapton
  • Diaphragm material Titanium
  • Rim material Titanium
  • Magnet OD mm (in) 110 (4.3)
  • Voice coil inductance mH 0.11
  • Flux density T 1.9
  • Recommended crossover (4) Hz 1200
  • Driver displacement volume l (ft³) 0.4 (0.015)
  • Multipack weight kg (lb) 13.6 (29.8)
  • Multipack dimensions L x W x H 457 x 421 x 98 (18 x 16.6 x 3.9)
  • Net weight kg (lb) 1.3 (2.8)
