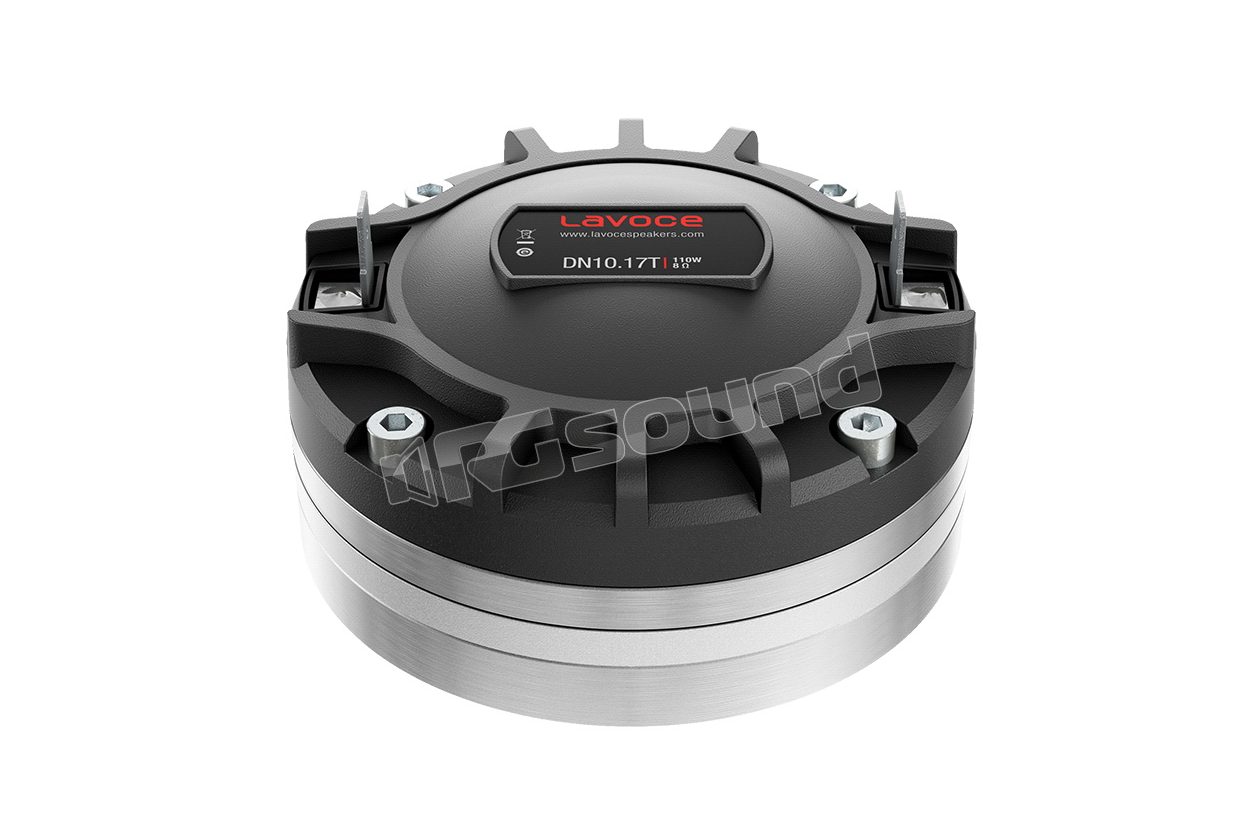

DN10.17T 1"/25mm High Frequency Tweeter

LaVoce
Your price:
€ 119,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1200 - 18000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
0,9 Kg
Voice Coil Diameter
44,4 mm

LaVoce DN10.17T High Frequency Tweeter 1"/25mm



LaVoce code 70R93102

DN10.17T Features

  • CCA 1.7 inches edgewound CCA voice coil
  • Sensitivity 107 db/spl
  • Program power handling 110 w
  • Motor, phaseplug and diaphragm optimized FEM
  • Frequency range 1200 - 18000 hz
  • Titanium diaphragm and surround
  • Recommended cabinet models (detailed pdfs of recommended designs)

Notes

  • Program power is defined as 3 dB above AES power.
  • Test with horn load for 2 hours with continuous pink noise and band-limited (1500-20000 Hz, 12dB/oct.) as per AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, speaker loaded with hd1003 horn, average SPL in the frequency range 1200 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

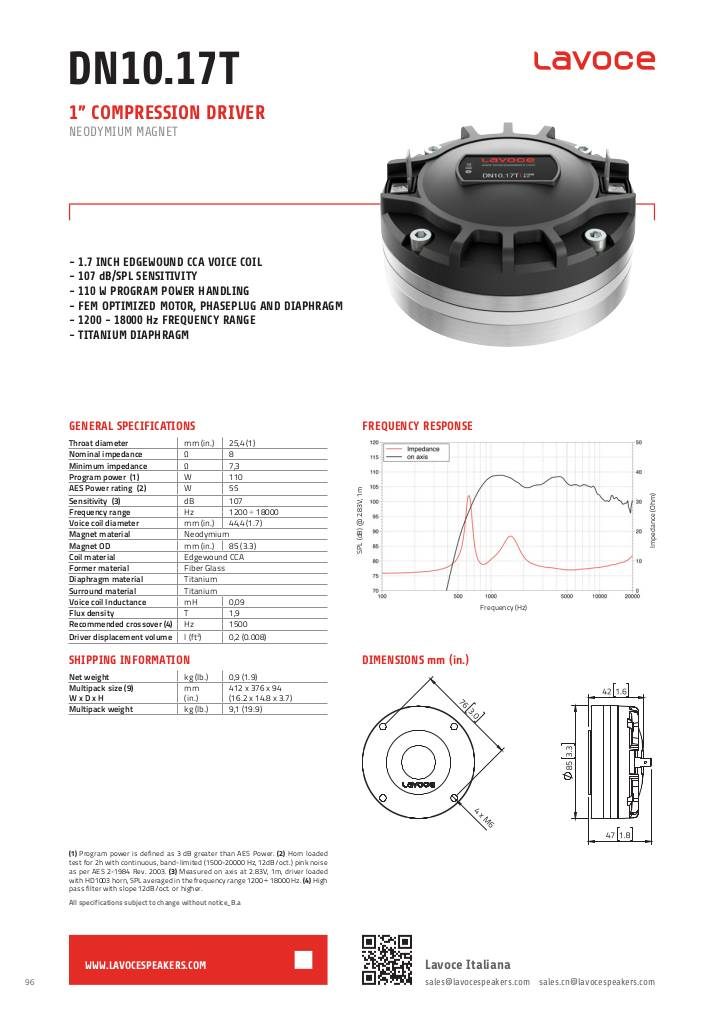

scheda tecnica

1549117654-dn1017t-1.pdf

LaVoce DN10.17T Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power (1) W 110
  • AES power (2) W 55
  • Sensitivity (3) dB 107
  • Frequency range Hz 1200 ÷ 18000
  • Voice coil diameter mm (in) 44.4 (1.7)
  • Magnet material Neodymium
  • Coil material CCA edgewound
  • Former material Fiberglass
  • Diaphragm material Titanium
  • Ferrofluid NO
  • Surround material Titanium
  • Magnet OD mm (in) 85 (3.3)
  • Voice coil inductance mH 0.09
  • Flux density T 1.9
  • Recommended crossover (4) Hz 1500
  • Driver displacement volume l (ft³) 0.2 (0.008)
  • Multipack weight kg (lb) 9.1 (19.9)
  • Multipack dimensions L x W x H 412 x 376 x 94 (16.2 x 14.8 x 3.7)
  • Net weight kg (lb) 0.9 (1.9)
