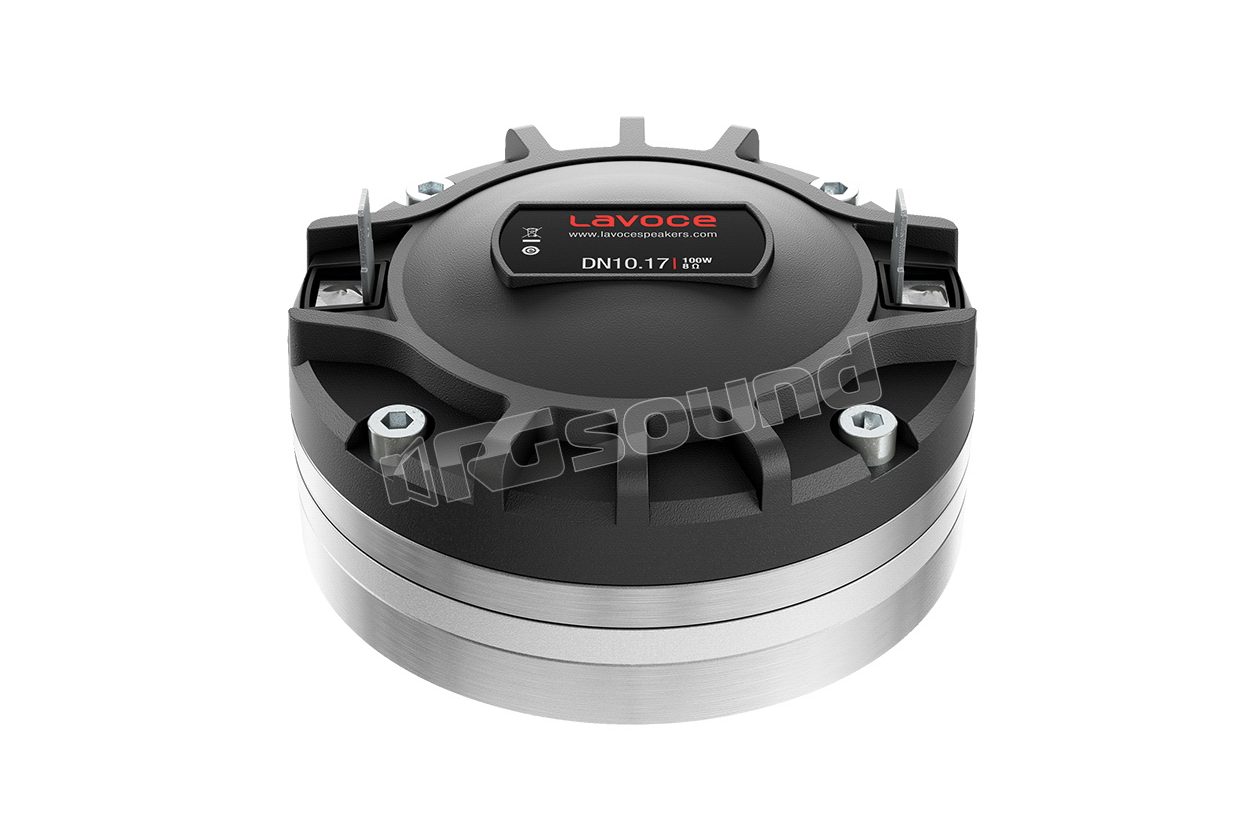

DN10.17 High Frequency Tweeter 1"/25mm

LaVoce
Your price:
€ 120,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
Frequency Response
1200 - 18000 Hertz
Sensitivity
110 dB
Impedance
8 Ohm
Weight
0,9 Kg
Voice Coil Diameter
44,4 mm

LaVoce DN10.17 High Frequency Tweeter 1"/25mm

LaVoce code 70R03105
DN10.17 Features
  • 1.7 inch CCA voice coil with sharp edge winding
  • Sensitivity 110 Db/Spl
  • Program handling power 110 W
  • Motor, phaseplug and diaphragm optimized Fem
  • Frequency range 1200 - 18000 Hz
  • High temperature polymeric diaphragm
Notes
  • Program power is defined as 3 dB above AES power.
  • Test with horn load for 2 hours with continuous pink noise and band limited (1600-20000 Hz, 12dB/oct.) according to AES 2-1984 Rev. 2003.
  • Measured on-axis at 2.83 V, 1 m, speaker loaded with HD1003 horn, average SPL in the frequency range 1200 ÷ 18000 Hz.
  • High-pass filter with slope of 12 dB/oct. or higher.

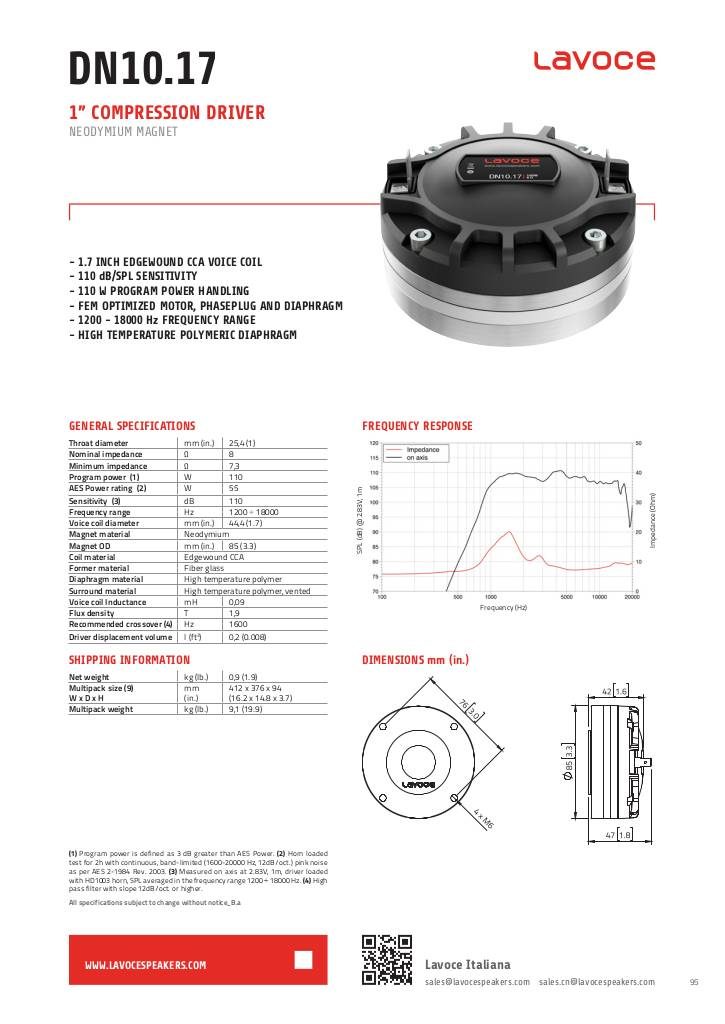

scheda tecnica

1549117641-dn1017-1.pdf

LaVoce DN10.17 Technical Specifications

  • Throat diameter mm (in) 25.4 (1)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power (1) W 110
  • AES power (2) W 55
  • Sensitivity (3) dB 110
  • Frequency range Hz 1200 ÷ 18000
  • Voice coil diameter mm (in) 44.4 (1.7)
  • Magnet material Neodymium
  • Coil material CCA wrapped on edge
  • Core material Fiberglass
  • Diaphragm material High temperature polymer
  • Surround material High temperature polymer, vented
  • Magnet outer diameter mm (in) 85 (3.3)
  • Voice coil inductance mH 0.09
  • Flux density T 1.9
  • Recommended crossover (4) Hz 1600
  • Driver displacement volume l (ft³) 0.2 (0.008)
  • Multipack weight kg (lb) 9.1 (19.9)
  • Multipack dimensions L x W x H 412 x 376 x 94 (16.2 x 14.8 x 3.7)
  • Net weight kg (lb) 0.9 (1.9)
